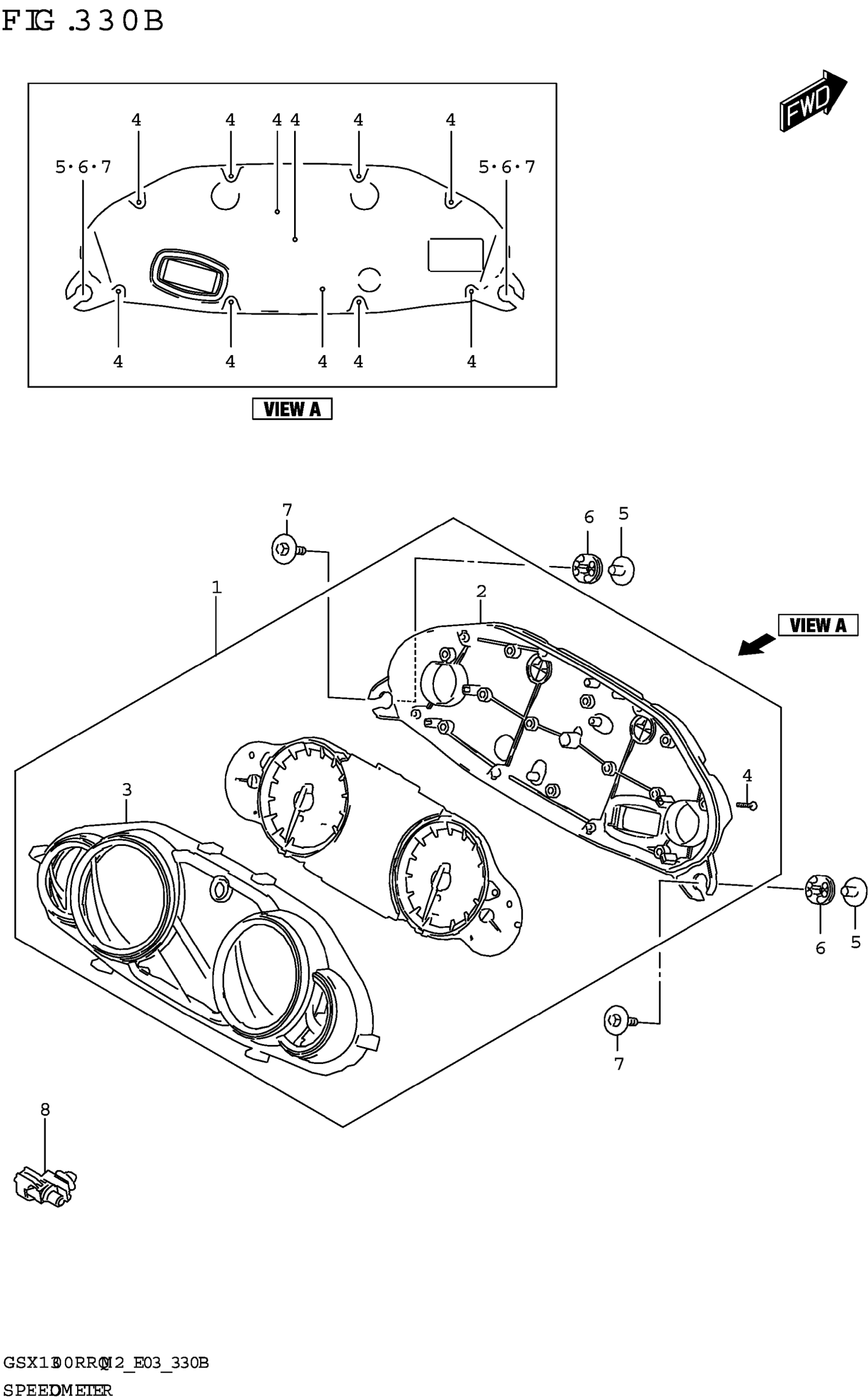

Suzuki GSX1300RRQM2 (2022) SPEEDOMETER (E28) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-10L60

Unavailable

2

.CASE ASSY,LOWER

34111-10L00

$98.50

3

.CASE ASSY,UPPER

34150-10L00

$200.98

4

SCREW

34183-10C00

$2.11

5

WASHER

34187-24F00

$7.57

6

CUSHION,SPEEDOMETER

34955-10L00

$3.52

7

BOLT (6X25)

09116-06186

$2.61

8

SENSOR,AIR TEMP

95643-58J00

$50.50
