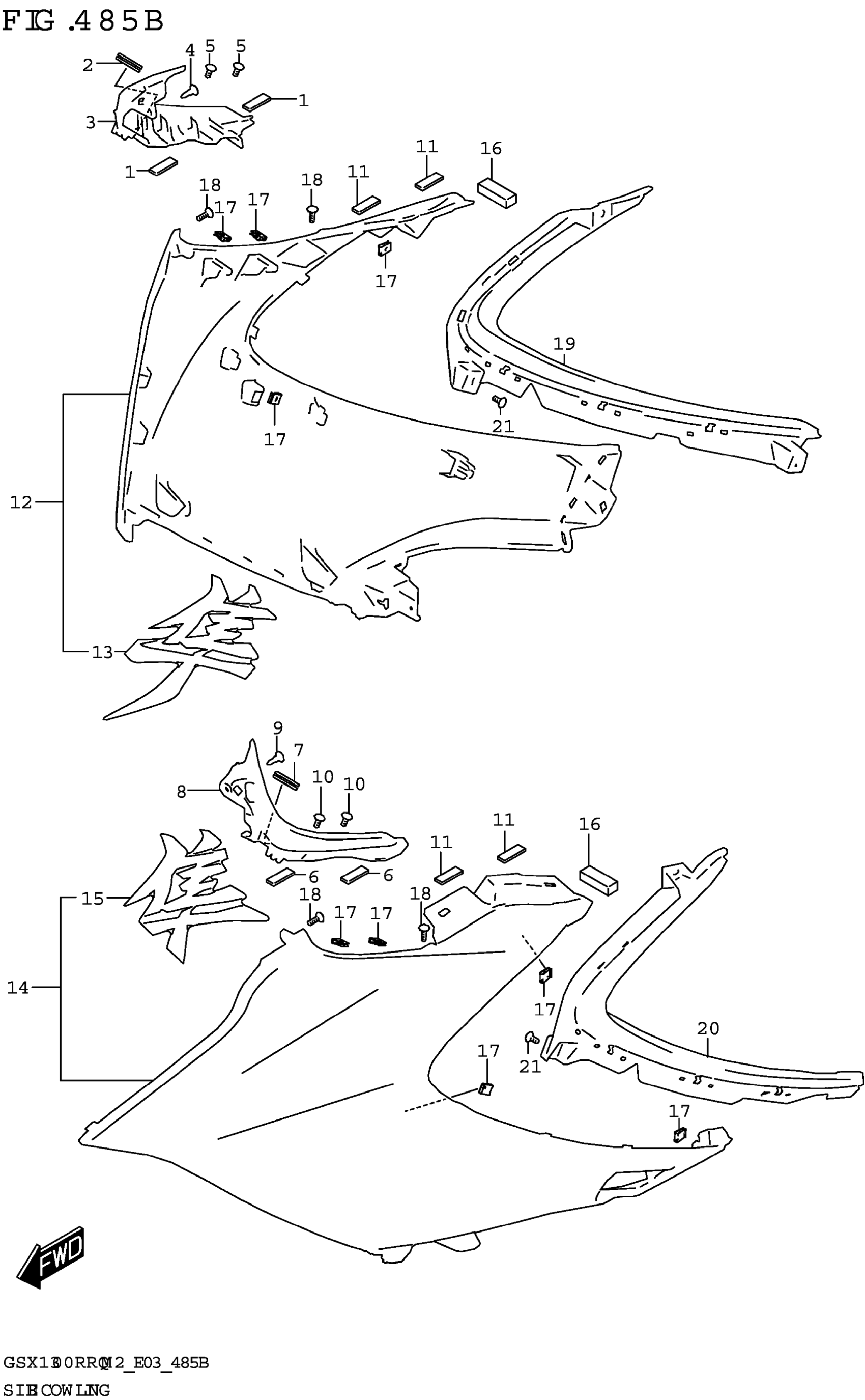

Suzuki GSX1300RRQM2 (2022) SIDE COWLING (GSX1300RRQZ) Diagram

#

Description
Price

1

PAD (8X20X2)

73415-70A00

$1.57

2

CUSHION

94478-14J00

$5.66

3

PANEL,METER FR RH

94642-10L00

$30.52

4

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

5

SCREW

03541-0512A

$1.41

6

PAD (8X20X2)

73415-70A00

$1.57

7

CUSHION

94478-14J00

$5.66

8

PANEL,METER FR LH

94643-10L00

$30.52

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

10

SCREW

03541-0512A

$1.41

11

PAD (8X20X2)

73415-70A00

$1.57

12

COWLING,SIDE FRONT,R (SILVER)

94470-10L00-QKA

$309.42

13

.EMBLEM,COWLING SIDE,R

68181-10L00-B7B

$64.60

14

COWLING,SIDE FRONT,L (SILVER)

94480-10L00-QKA

$334.17

15

.EMBLEM,COWLING SIDE,L

68191-10L00-B7B

$44.00

16

CUSHION,TANK COVER FR (10X30X

44277-18K00

$2.80

17

NUT (M5)

09148-05038

$2.01

18

SCREW

03541-0516A

$1.41

19

COWLING,SIDE REAR,R

94472-10L00

$118.04

20

COWLING,SIDE REAR,L

94482-10L00

$118.04

21

SCREW

03541-0512A

$1.41
