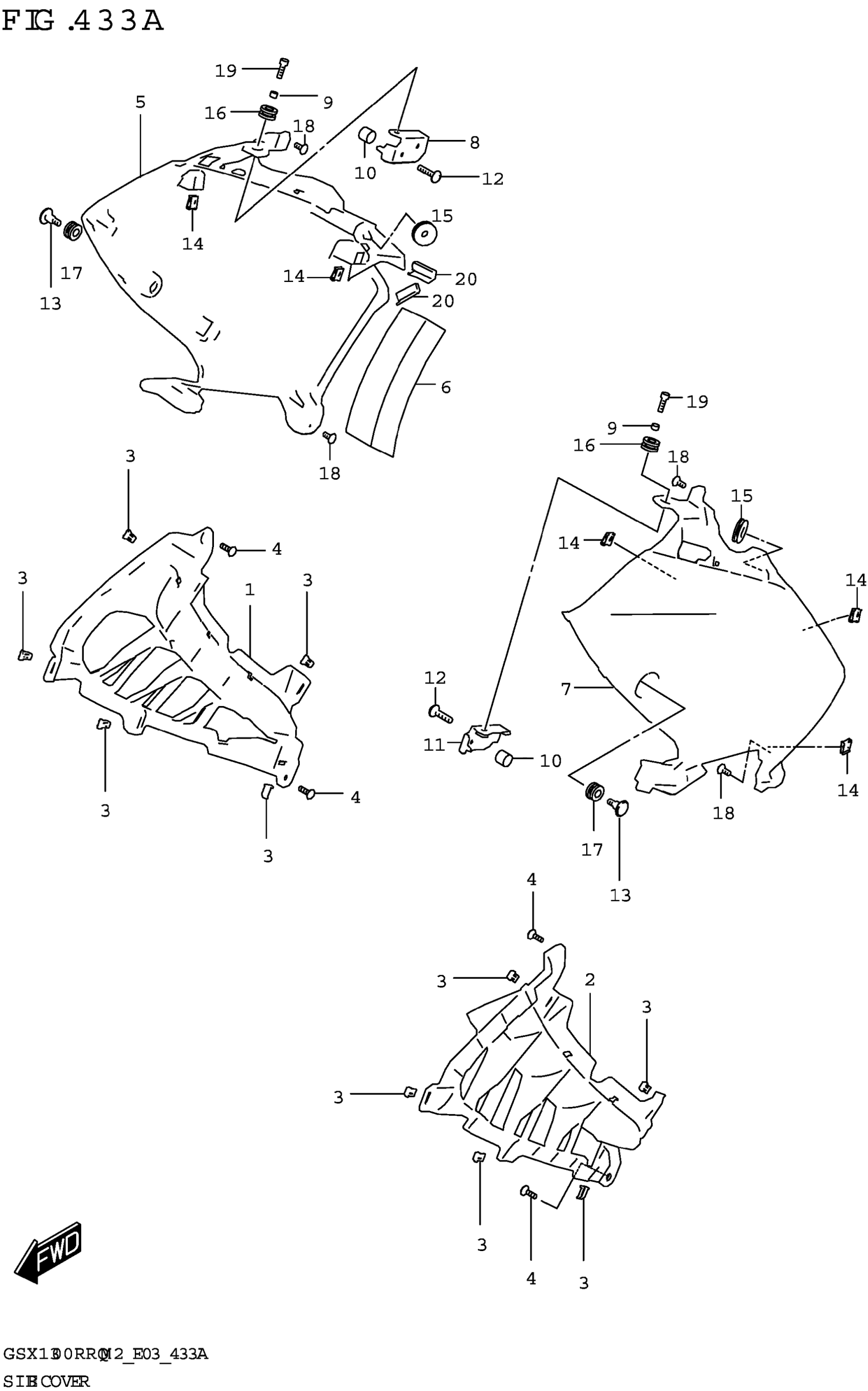

Suzuki GSX1300RRQM2 (2022) SIDE COVER (GSX1300RRQ) Diagram

#

Description
Price

1-1

COVER,SIDE FRONT,R (GOLD) | BODY COLOR:B5L

94474-10L00-QSY

$146.40

1-2

COVER,SIDE FRONT,R (BLUE) | BODY COLOR:B5N

94474-10L00-YUA

$146.40

2-1

COVER,SIDE FRONT,L (GOLD) | BODY COLOR:B5L

94484-10L00-QSY

$146.40

2-2

COVER,SIDE FRONT,L (BLUE) | BODY COLOR:B5N

94484-10L00-YUA

$146.40

3

CLIP

09409-08012

$2.82

4

SCREW

03541-0516B

$1.78

5-1

COVER,SIDE,R (BLACK) | BODY COLOR:B5L

94475-10L00-YVB

$192.86

5-2

COVER,SIDE,R (WHITE) | BODY COLOR:B5N

94475-10L00-YUH

$226.88

6

CUSHION,SIDE COVER

94479-10L00

$6.91

7-1

COVER,SIDE,L (BLACK) | BODY COLOR:B5L

94485-10L00-YVB

$191.91

7-2

COVER,SIDE,L (WHITE) | BODY COLOR:B5N

94485-10L00-YUH

$226.88

8

BRACKET,SIDE COVER RH

94570-10L00

$10.93

9

SPACER,SIDE COVER

94572-10L00

$6.37

10

SPACER (6.5X11.5X12)

09180-06120

$2.32

11

BRACKET,SIDE COVER LH

94580-10L00

$10.93

12

BOLT (6X25)

09139-06196

$2.28

13

SCREW (6X20)

09139-06206

$3.32

14

NUT (M5)

09148-05038

$1.97

15

CUSHION (8X26X7)

09320-08028

$3.04

16

CUSHION (9X18X9.5)

09320-09016

$1.97

17

CUSHION (9X18X9.5)

09320-09016

$1.97

18

SCREW

03541-0512A

$1.49

19

BOLT

07130-0516A

$2.41

20

MOLDING,SIDE COVER RR NO.2

94489-10L10

$7.06
