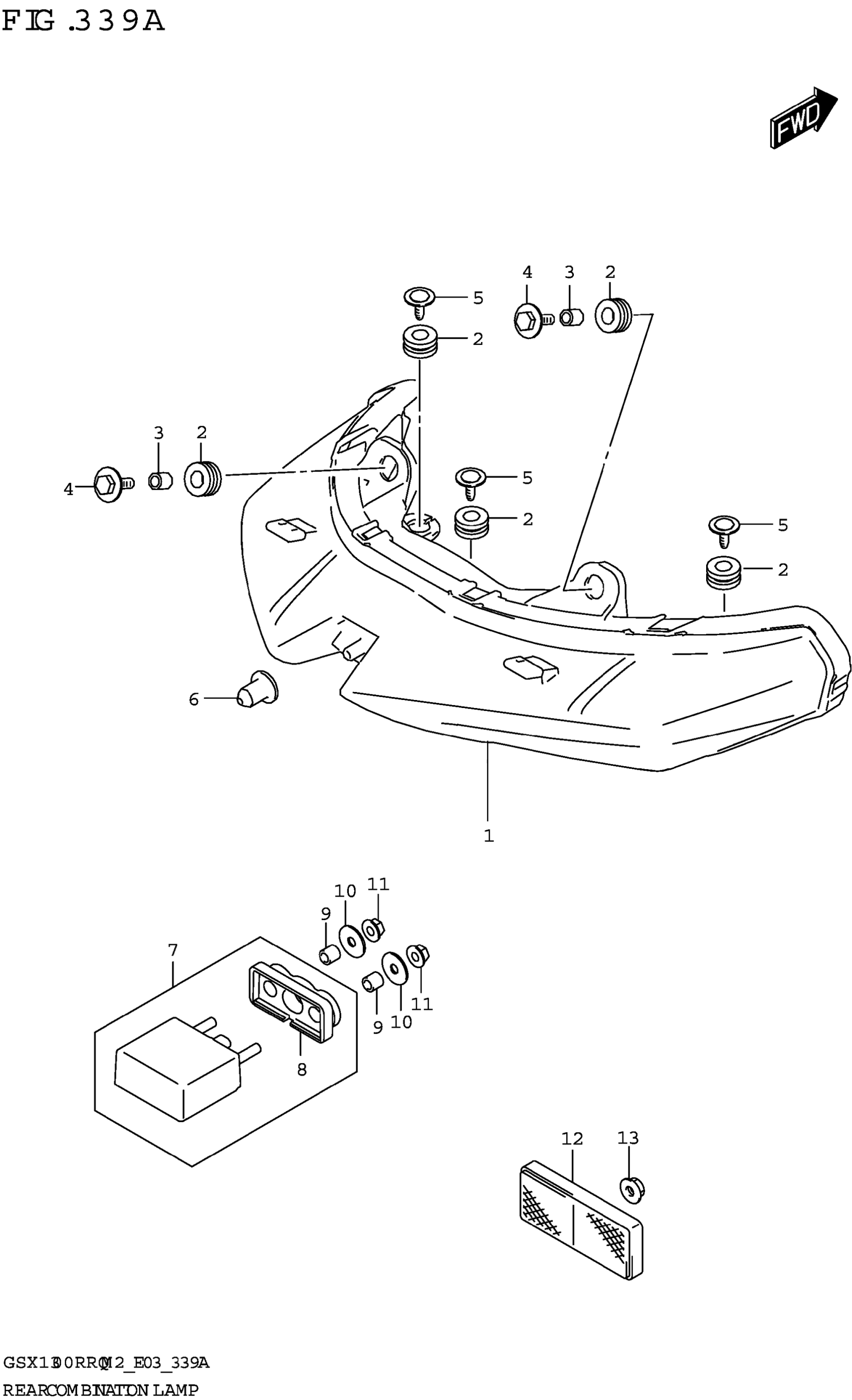

Suzuki GSX1300RRQM2 (2022) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-10L00

$679.65

2

CUSHION

09320-10073

$2.27

3

SPACER (6.5X10X10)

09180-06310

$1.91

4

BOLT (6X20)

09116-06188

$2.16

5

SCREW (5X15)

09136-05062

$2.19

6

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

7

LAMP ASSY, LICENSE

35910-17KA0

$183.68

8

.RUBBER

35913-17K00

$16.87

9

SPACER (6.5X9X9)

09180-06263

$2.03

10

WASHER (5.5X18X1.0)

09160-05045

$1.93

11

NUT

08316-1005A

$2.19

12

REFLECTOR ASSY,RR

35970-07F01

$20.88

13

NUT

08316-1005B

$2.50
