Description

Price

1

TANK ASSY,FUEL (SILVER)

44100-10L00-QKA

$1,310.45

2

VESSEL, FUEL TANK INNER

44121-28K01

$11.90

3

SHIELD,FUEL TANK HEAT

44191-10L00

$44.70

4

SHIELD,FUEL TANK HEAT NO.1

44191-15H00

$176.77

5

CAP SET,FUEL TANK FILLER

44200-10810

$200.23

6

BOLT (5X12)

09106-05026

$3.54

7

HOSE,FUEL TANK DRAIN

44423-10L00

$16.20

8

MOLDING,FUEL TANK

44541-10L00

$4.78

9

CUSHION,FUEL TANK SIDE

44542-10L00

$7.10

10

FASTENER (33X25X2.6)

44572-13G00

$11.07

11

FASTENER (20X15X2.6)

44572-44G00

$10.18

12

CUSHION (40X20X5)

53145-48B00

$3.30

13

CLAMP (L:118)

09407-05406

$1.49

14

STAY,FUEL TANK | OPT

44574-35F00

$15.16

15

HOSE,FUEL TANK BRTHR NO.1

44424-10L00

$11.40

16

HOSE,FUEL TANK BRTHR NO.2

44424-10L10

$3.57

17

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

18

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

19

3 WAY

09367-06007

$3.46

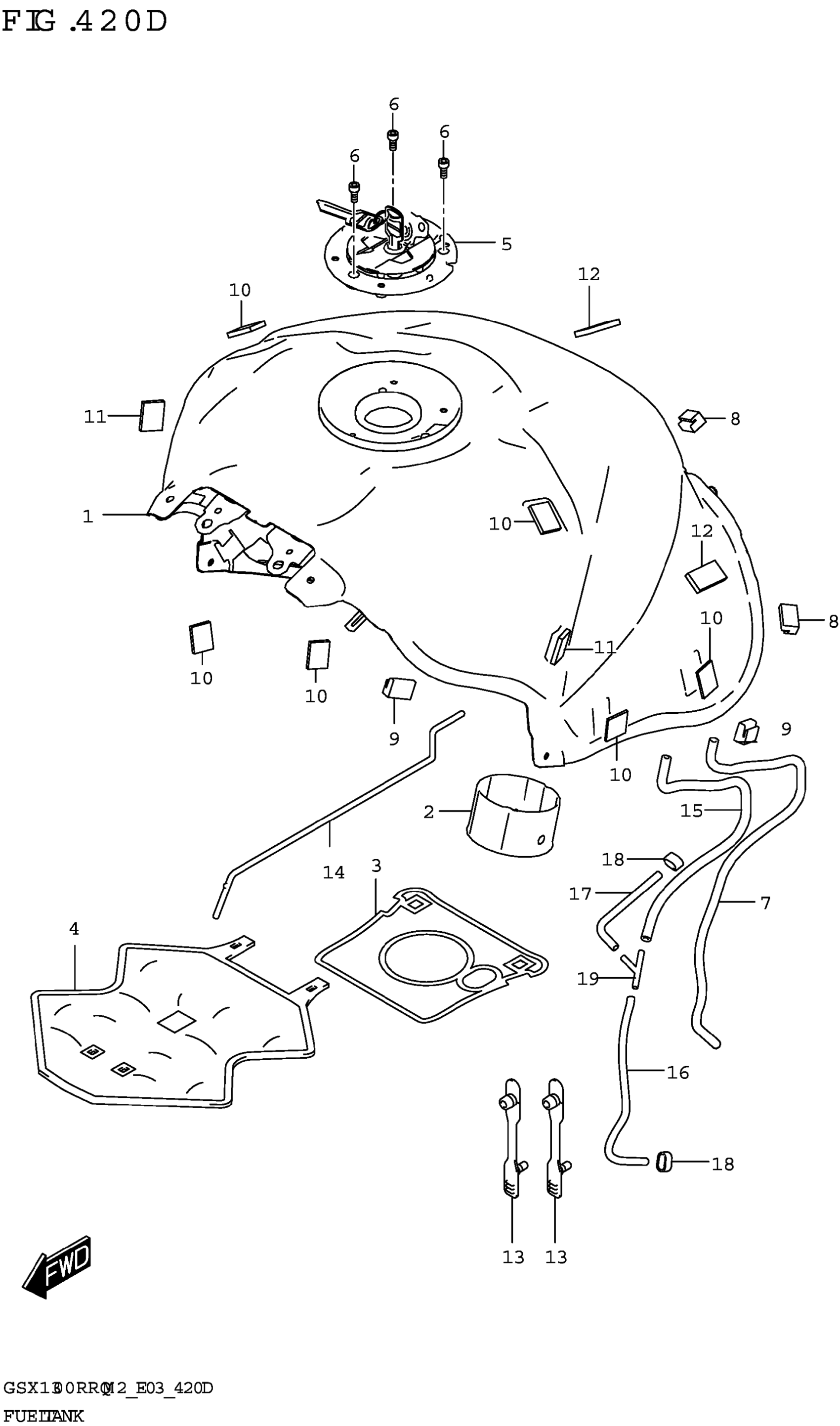

Suzuki GSX1300RRQM2 (2022) FUEL TANK (GSX1300RRQZ:(E03,E28)) Diagram
