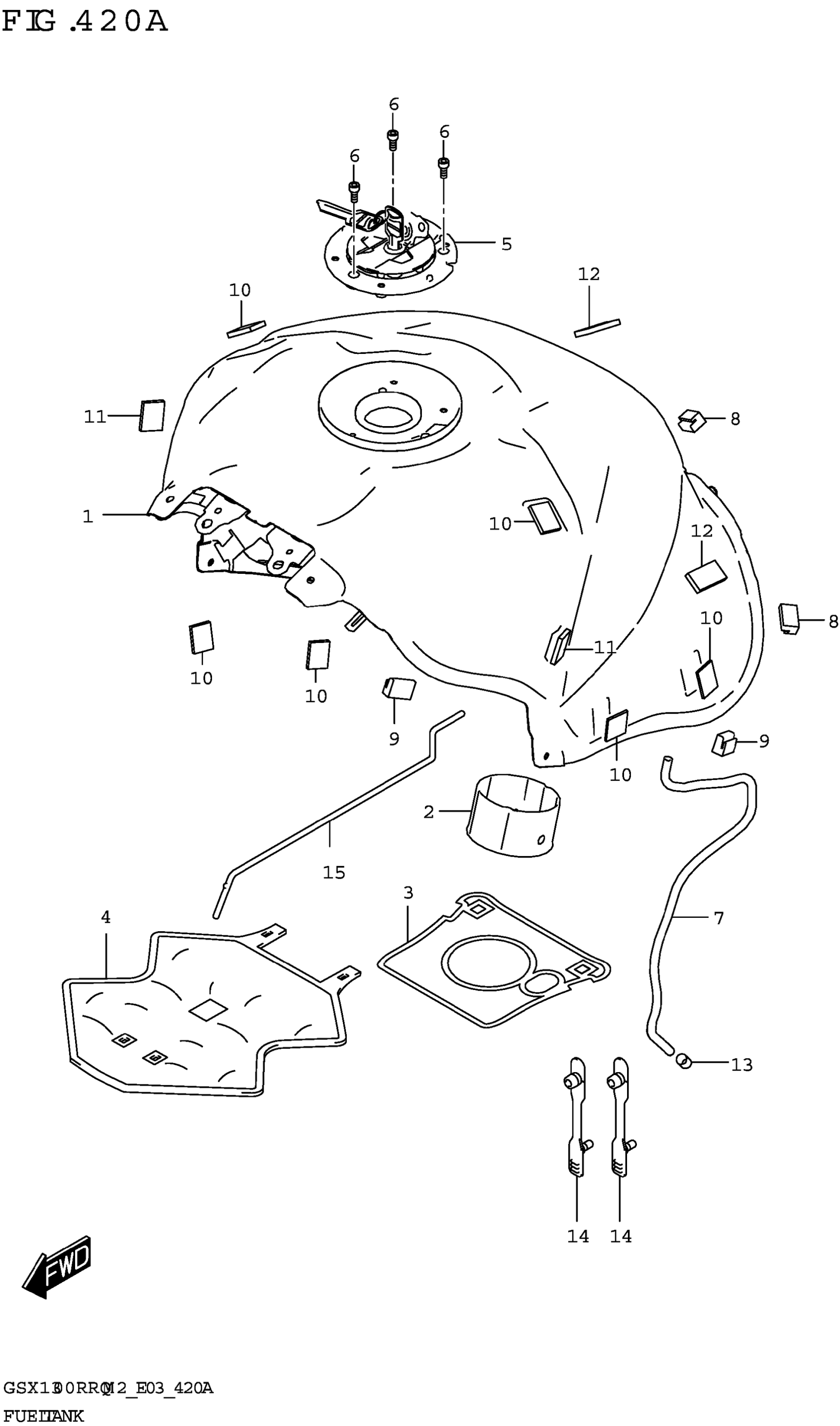

Suzuki GSX1300RRQM2 (2022) FUEL TANK (GSX1300RRQ:E33) Diagram

Description

Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:B5L

44100-10L00-YVB

$1,310.45

1-2

TANK ASSY,FUEL (WHITE) | BODY COLOR:B5N

44100-10L00-YUH

$1,310.45

VESSEL, FUEL TANK INNER

44121-28K01

$11.90

SHIELD,FUEL TANK HEAT

44191-10L00

$44.70

SHIELD,FUEL TANK HEAT NO.1

44191-15H00

$176.77

CAP SET,FUEL TANK FILLER

44200-10810

$200.23

BOLT (5X12)

09106-05026

$3.54

HOSE,FUEL TANK DRAIN

44423-10L00

$16.20

MOLDING,FUEL TANK

44541-10L00

$4.78

CUSHION,FUEL TANK SIDE

44542-10L00

$7.10

FASTENER (33X25X2.6)

44572-13G00

$11.07

FASTENER (20X15X2.6)

44572-44G00

$10.18

CUSHION (40X20X5)

53145-48B00

$3.30

HOSE (11X15X10)

09352-11154-010

Unavailable

CLAMP (L:118)

09407-05406

$1.49

STAY,FUEL TANK | OPT

44574-35F00

$15.16
