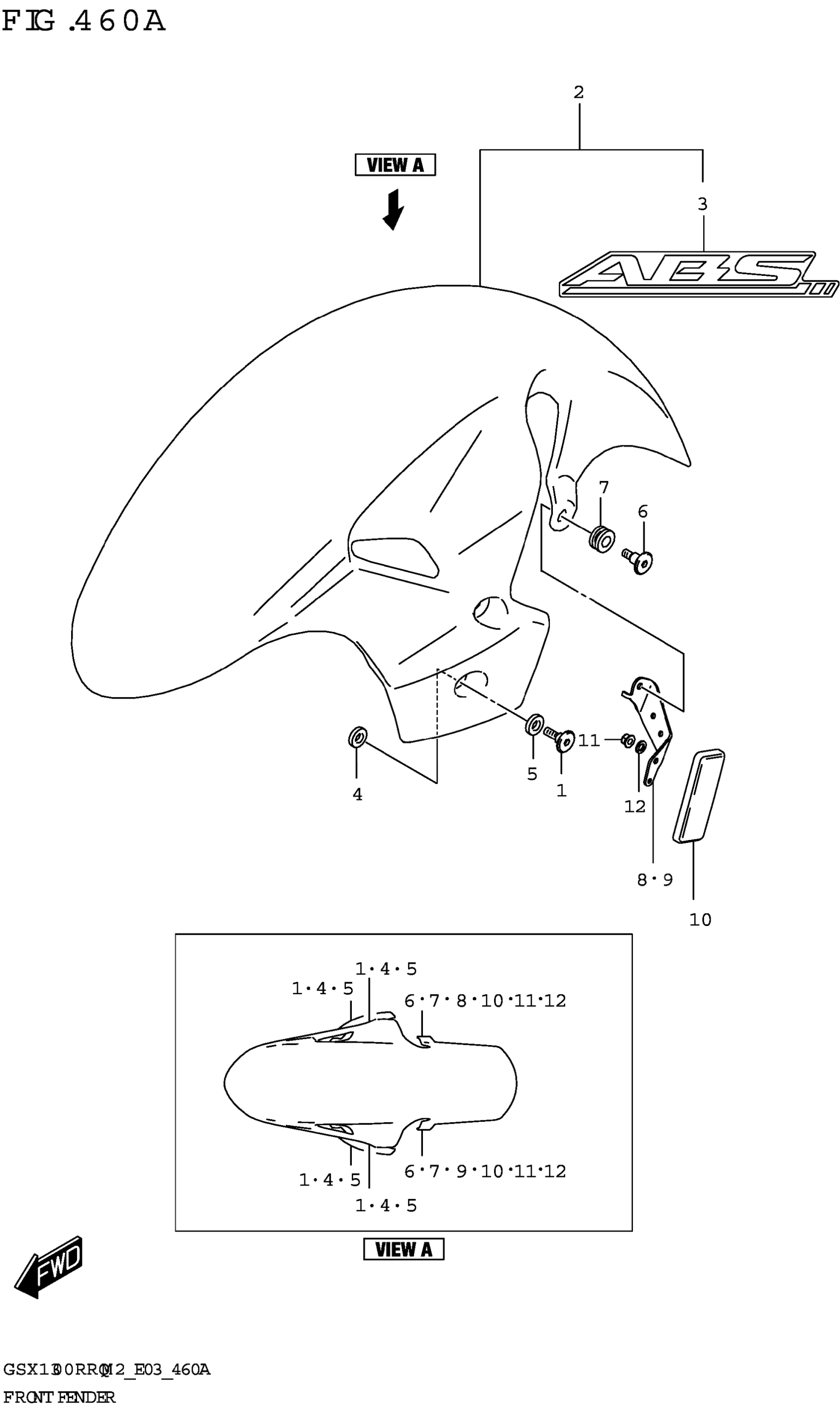

Suzuki GSX1300RRQM2 (2022) FRONT FENDER (GSX1300RRQ) Diagram

#

Description
Price

1

BOLT,SEAT (6X20)

45241-17K00

$3.35

2-1

FENDER,FRONT (BLACK) | BODY COLOR:B5L

53110-10L00-YVB

$212.08

2-2

FENDER,FRONT (WHITE) | BODY COLOR:B5N

53110-10L00-YUH

$249.48

3

.EMBLEM,ABS (GRAY)

68151-44G01-1ZY

$9.60

4

.TAPE, FR FENDER

53121-28K00

$3.59

5

WASHER

53121-33E00

$3.43

6

SCREW (6X20)

09139-06236

$2.82

7

CUSHION (9X18X9.5)

09320-09016

$1.97

8

BRACKET,FRONT SIDE RR,R

47451-10L10

$11.08

9

BRACKET,FRONT SIDE RR,L

47455-10L10

$11.08

10

REFLEX REFLECTOR ASSY,FR SIDE

35950-43440

$11.70

11

NUT

08319-3105B

$3.55

12

WASHER,LOCK

08321-0105B

$2.83
