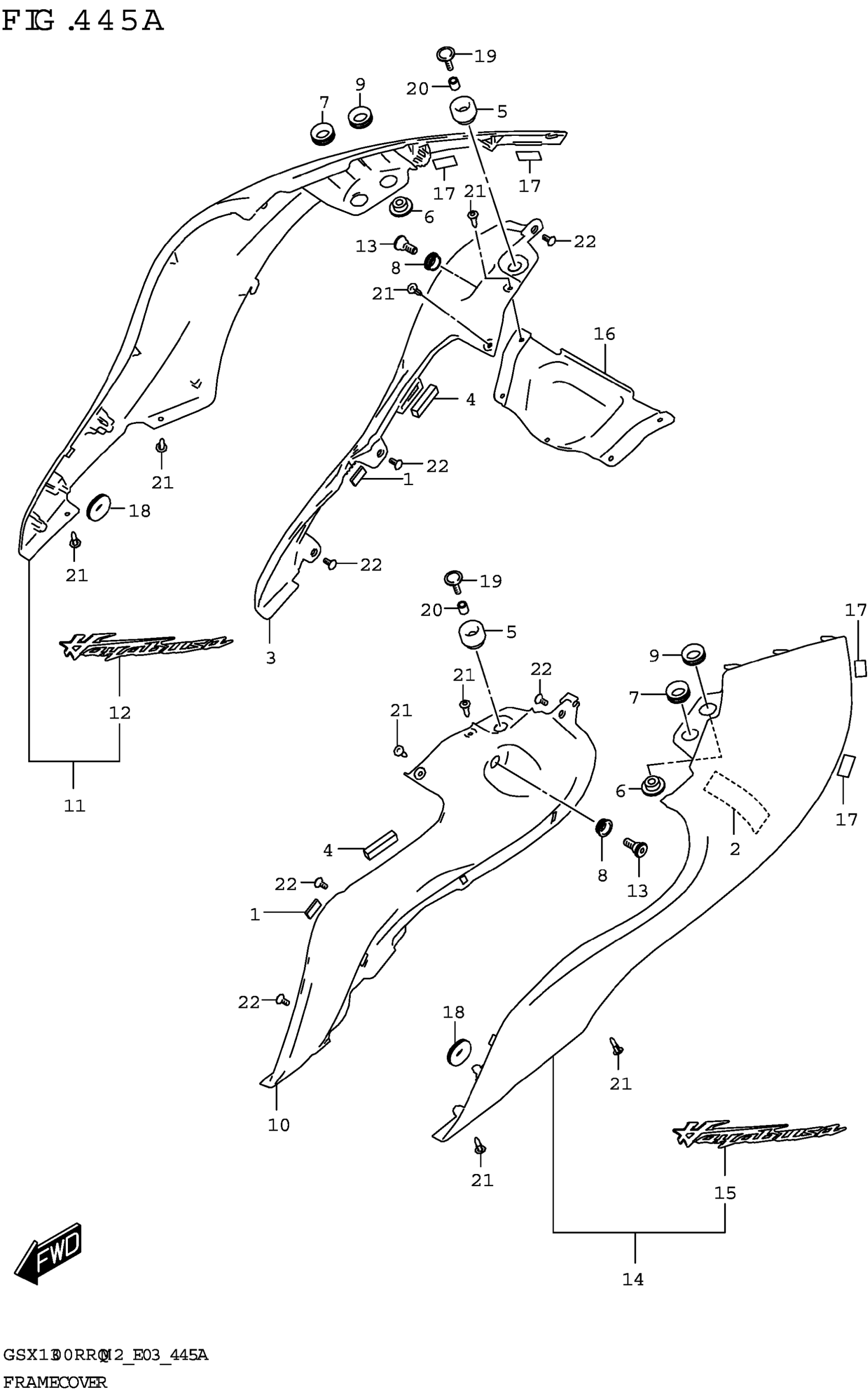

Suzuki GSX1300RRQM2 (2022) FRAME COVER (GSX1300RRQ) Diagram

#

Description
Price

1

CUSHION (11X20X3)

33652-22D00

$1.67

2

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.64

3-1

COVER,FRAME,R (GOLD) | BODY COLOR:B5L

47111-10L00-QSY

$139.87

3-2

COVER,FRAME,R (BLUE) | BODY COLOR:B5N

47111-10L00-YUA

$139.87

4

CUSHION,FRAME COVER NO.2

47112-10L00

$1.49

5

CUSHION,FRAME COVER UP

47115-16G01

$3.37

6

WASHER,FRAME COVER

47190-24F21

$9.94

7

CUSHION (16X26X8)

47191-24F00

$5.17

8

CUSHION,FRAME COVER CTR

47191-24F20

$7.22

9

CUSHION,FRAME COVER UP RR RR

47191-24F30

$5.36

10-1

COVER,FRAME,L (GOLD) | BODY COLOR:B5L

47211-10L00-QSY

$139.87

10-2

COVER,FRAME,L (BLUE) | BODY COLOR:B5N

47211-10L00-YUA

$139.87

11-1

COVER,FRAME REAR,R (BLACK) | BODY COLOR:B5L

47320-10L00-YVB

$139.40

11-2

COVER,FRAME REAR,R (WHITE) | BODY COLOR:B5N

47320-10L00-YUH

$139.40

12-1

.EMBLEM,FRAME COVER,R (GRAY,B | ACK) BODY COLOR:B5L

68131-10L00-AA3

$12.85

12-2

.EMBLEM,FRAME COVER,R (GRAY,W | BODY COLOR:B5N

68131-10L00-B7C

$12.85

13

BOLT,FRAME COVER REAR

47323-10L00

$3.15

14-1

COVER,FRAME REAR,L (BLACK) | BODY COLOR:B5L

47330-10L00-YVB

$139.40

14-2

COVER,FRAME REAR,L (WHITE) | BODY COLOR:B5N

47330-10L00-YUH

$139.40

15-1

.EMBLEM,FRAME COVER,L (GRAY,B | ACK) BODY COLOR:B5L

68141-10L00-AA3

$12.85

15-2

.EMBLEM,FRAME COVER,L (GRAY,W | BODY COLOR:B5N

68141-10L00-B7C

$12.85

16

LID,FRAME COVER

47411-10L00

$21.60

17

TAPE (6X25X0.13)

94443-06G00

$3.25

18

CUSHION

94478-14J00

$5.92

19

SCREW

09136-06126

$3.15

20

SPACER (6.5X10X11)

09180-06288

$2.06

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

22

SCREW

03541-0512A

$1.49
