Description

Price

1

CYLINDER

11210-15H00-0F0

$2,031.75

2

.PLUG,WATER JACKET

11318-35F00

$16.78

3

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

4

.GASKET,CYLINDER

11241-10L00

$31.67

5

STUD BOLT

01421-0625A

$1.99

6

NUT (6X12)

08316-1006A

$2.19

7

PIN

04211-11169

$1.78

8

PIPE,CRANKCASE OIL

11280-24F00

$72.42

9

HOSE,CYL HEAD OIL

11282-10L00

$61.98

10

UNION (10X1.25X22)

09360-10062

$6.43

11

GASKET (10.1X16X1)

09168-10007

$1.71

12

UNION (14X27)

09360-14012

$10.86

13

O-RING (D:2.4,ID:11.8)

09280-12012

$4.64

14

BOLT (6X16)

09106-06073

$2.39

15

.GASKET (14X20X1.5)

09168-14015

$2.03

16

CUSHION,CRANKCASE OIL PIPE

11283-24F01

$5.08

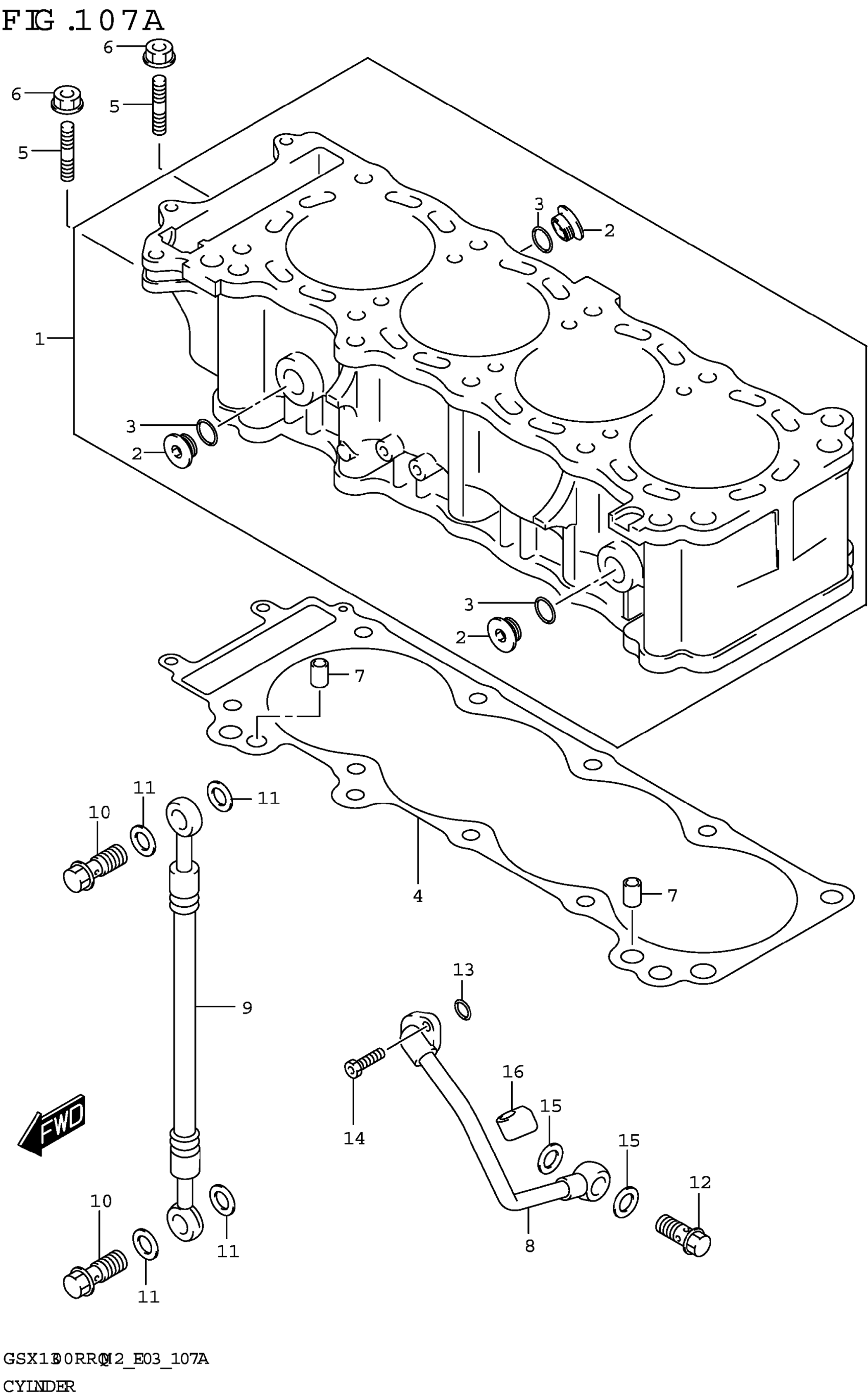

Suzuki GSX1300RRQM2 (2022) CYLINDER Diagram
