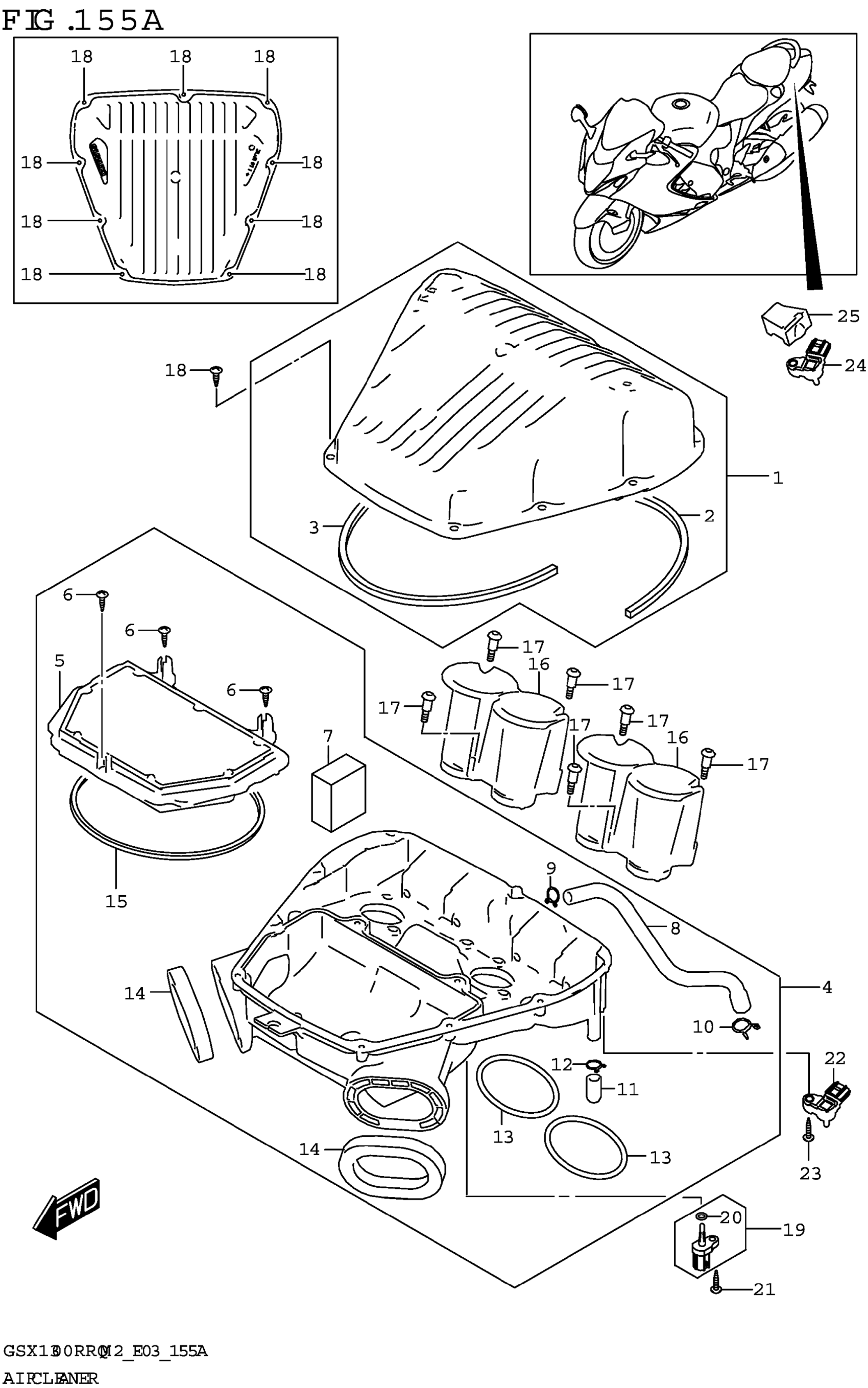

Suzuki GSX1300RRQM2 (2022) AIR CLEANER Diagram

#

Description
Price

1

CAP,AIR CLEANER This part replaces 13740-10L00.

13740-10L01

$47.18

2

.GASKET,CAP A

13758-10L00

$8.43

3

.GASKET,CAP B

13759-10L00

$8.43

4

CASE,AIR CLNR

13720-10L00

$221.52

5

.FILTER ASSY,AIR CLNR

13780-10L00

$50.13

6

SCREW

03541-0520A

$1.80

7

.FILTER,BRETHER

13788-10L00

$3.95

8

.TUBE,BRETHER

13853-10L00

$20.38

9

.CLIP (ID:14.5)

09401-14101

$2.34

10

.CLIP (ID:16.5)

09401-16401

$3.14

11

.PLUG

13878-10G01

$4.93

12

.CLIP

09401-14301

$2.35

13

.GASKET,THB CASE

13757-10L00

$5.33

14

.CUSHION,DUCT

13736-10L00

$8.15

15

.GASKET,FILTER

13756-10L00

$4.32

16

FUNEL,OUTLET

13881-10L00

$12.48

17

BOLT,AIR CLEANER CASE

13831-47H00

$8.44

18

SCREW

03541-0520A

$1.80

19

SENSOR,AIR TEMP

13650-41F10

$63.25

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.86

22

SENSOR,BOOST

18590-18K00

$315.08

23

SCREW

03541-0525B

$2.32

24

SENSOR,BOOST

18590-18K00

$315.08

25

HOLDER, SENSOR

18595-04K01

$9.03
