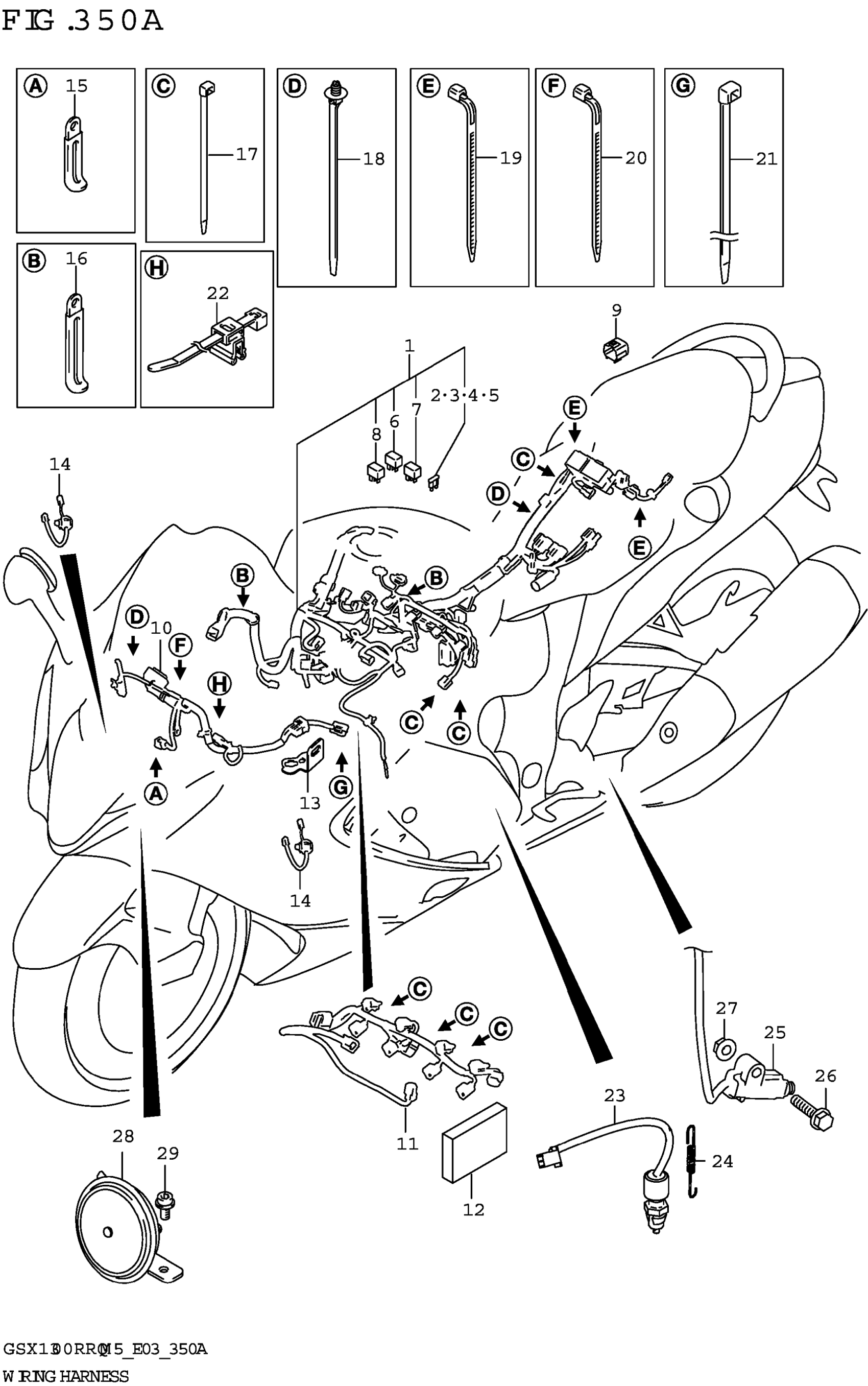

Suzuki GSX1300RRQKM5 (2025) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-10L10

$937.78

2

.FUSE (7.5A)

09481-07504

$1.49

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (30A)

09481-30504

$2.00

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | SUB START

38860-76F01

$34.37

9

CAP,OBD CONNECTOR

36654-28K00

$8.72

10

HARNESS,WIRING NO.2

36620-10L00

$188.83

11

HARNESS,WIRING NO.3

36630-10L00

$194.70

12

CUSHION,HARNESS WIRING

36652-10L00

$3.73

13

BRACKET,WIRING HARNESS

36672-10L00

$7.35

14

WIRE, FAN MOTOR LEAD

36852-10L00

$30.72

15

CLAMP (L:45)

09404-06429

$1.83

16

CLAMP (L:95)

09407-11401

$2.63

17

CLAMP (L:145)

09407-14407

$3.57

18

CLAMP (L:170)

09407-17403

$4.91

19

CLAMP (L:190)

09407-19401

$3.05

20

CLAMP

09407-19408

$3.50

21

CLAMP

09407-38402

$4.45

22

CLAMP

36990-10L00

$3.10

23

SWITCH ASSY,STOP LAMP

37740-10L00

$15.02

24

SPRING

09443-06012

$3.16

25

SWITCH ASSY,SIDE STAND

37840-24F02

$58.63

26

BOLT (8X35)

09103-08357

$4.17

27

NUT

08316-1008B

$2.66

28

HORN ASSY

38500-24F40

$38.33

29

BOLT

07120-0612A

$2.50
