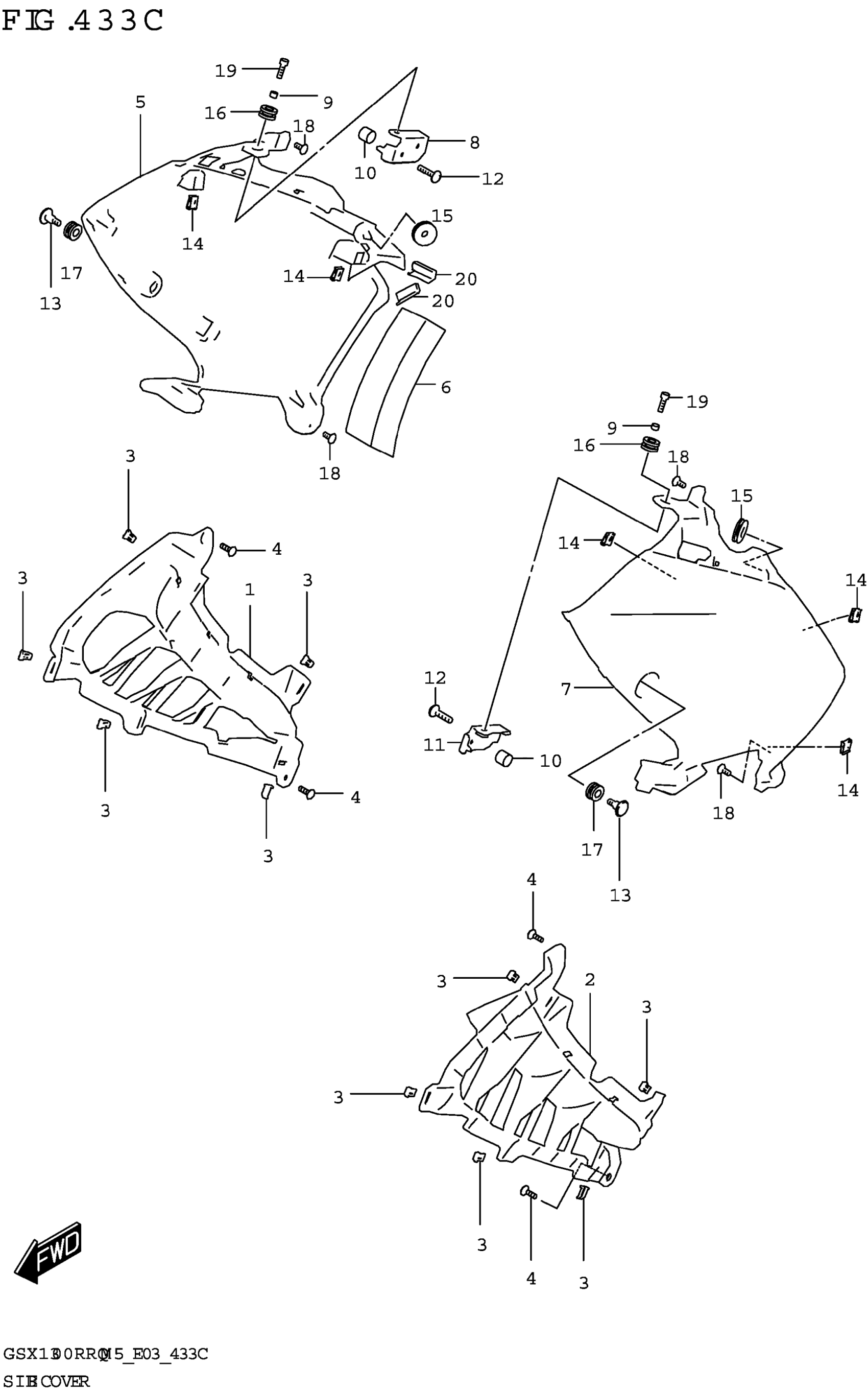

Suzuki GSX1300RRQKM5 (2025) SIDE COVER (GSX1300RRQK:(E03,E33)) Diagram

#

Description
Price

1-1

COVER,SIDE FRONT,R (BLACK) | BODY COLOR:JRU,YVB

94474-10L00-YVB

$125.33

1-2

COVER,SIDE FRONT,R (SILVER) | BODY COLOR:DKX,DMX,DNX

94474-10L00-YMC

$108.88

1-3

COVER,SIDE FRONT,R (BLUE) | BODY COLOR:DQX,C9X,DSX

94474-10L00-YKY

$133.37

2-1

COVER,SIDE FRONT,L (BLACK) | BODY COLOR:JRU,YVB

94484-10L00-YVB

$125.33

2-2

COVER,SIDE FRONT,L (SILVER) | BODY COLOR:DKX,DMX,DNX

94484-10L00-YMC

$108.88

2-3

COVER,SIDE FRONT,L (BLUE) | BODY COLOR:DQX,C9X,DSX

94484-10L00-YKY

$133.37

3

CLIP

09409-08012

$2.82

4

SCREW

03541-0516B

$1.78

5-1

COVER,SIDE,R (SILVER) | BODY COLOR:JRU,DKX,DQX

94475-10L00-YMD

$192.86

5-2

COVER,SIDE,R (BLACK) | BODY COLOR:YVB,DMX,C9X

94475-10L00-YVB

$192.86

5-3

COVER,SIDE,R (GREEN) | BODY COLOR:DNX,DSX

94475-10L00-QVP

$192.86

6

CUSHION,SIDE COVER

94479-10L00

$6.91

7-1

COVER,SIDE,L (SILVER) | BODY COLOR:JRU,DKX,DQX

94485-10L00-YMD

$192.86

7-2

COVER,SIDE,L (BLACK) | BODY COLOR:YVB,DMX,C9X

94485-10L00-YVB

$191.91

7-3

COVER,SIDE,L (GREEN) | BODY COLOR:DNX,DSX

94485-10L00-QVP

$192.86

8

BRACKET,SIDE COVER RH

94570-10L00

$10.93

9

SPACER,SIDE COVER

94572-10L00

$6.37

10

SPACER (6.5X11.5X12)

09180-06120

$2.32

11

BRACKET,SIDE COVER LH

94580-10L00

$10.93

12

BOLT (6X25)

09139-06196

$2.28

13

SCREW (6X20)

09139-06206

$3.32

14

NUT (M5)

09148-05038

$1.97

15

CUSHION (8X26X7)

09320-08028

$3.04

16

CUSHION (9X18X9.5)

09320-09016

$1.97

17

CUSHION (9X18X9.5)

09320-09016

$1.97

18

SCREW

03541-0512A

$1.49

19

BOLT

07130-0516A

$2.41

20

MOLDING,SIDE COVER RR NO.2

94489-10L10

$7.06
