Description

Price

1

WHEEL,REAR (BLACK) | )

64111-10L01-019

$878.87

2

SPACER,RR WHEEL BEARING

64731-40F10

$59.62

3

BEARING (28X52X12)

09262-28062

$26.38

4

SEAL,OIL (37X52X8)

09284-37002

$7.85

5

RING,SPEED SENSOR RR

64162-10L00

$23.30

6

BOLT

07130-0512A

$2.19

7

DISC,REAR BRAKE

69211-10L00

$193.38

8

BOLT (8X21)

09106-08160

$3.57

9

AXLE,RR

64711-33E20

$155.98

10

WASHER (25.2X42X3.2)

09160-25070

$4.77

11

NUT,REAR AXLE

64721-17K00

$15.94

12

SPACER,REAR AXLE,R

64741-35F10

$13.49

13

SPACER,RR AXLE,L

64751-49G00

$32.43

14

DRUM,RR SPROCKET

64610-35F30

$327.08

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$26.61

16

BEARING (32X65X17)

09262-32024

$39.40

17

SEAL,OIL (39X65X7)

09285-39001

$10.62

18

ABSORBER,RR HUB SHOCK

64651-35F30

$44.48

19

SPROCKET,RR (NT:43)

64511-15H00

$135.45

20

NUT

08319-3110A

$2.73

21

TIRE,REAR 190/5 | ) This part replaces 65110-10L00.

65110-10L01

$329.18

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

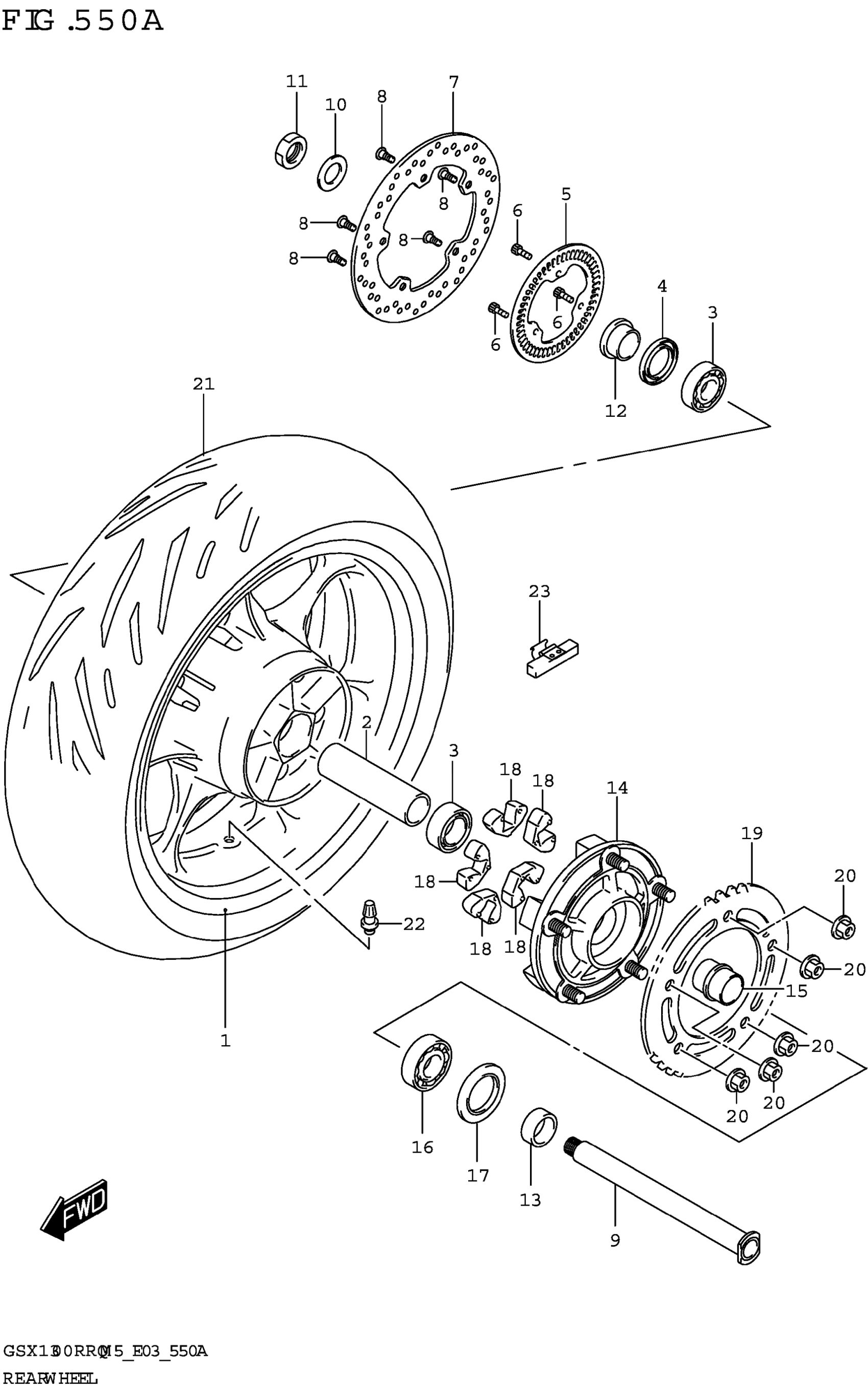

Suzuki GSX1300RRQKM5 (2025) REAR WHEEL (GSX1300RRQ) Diagram
