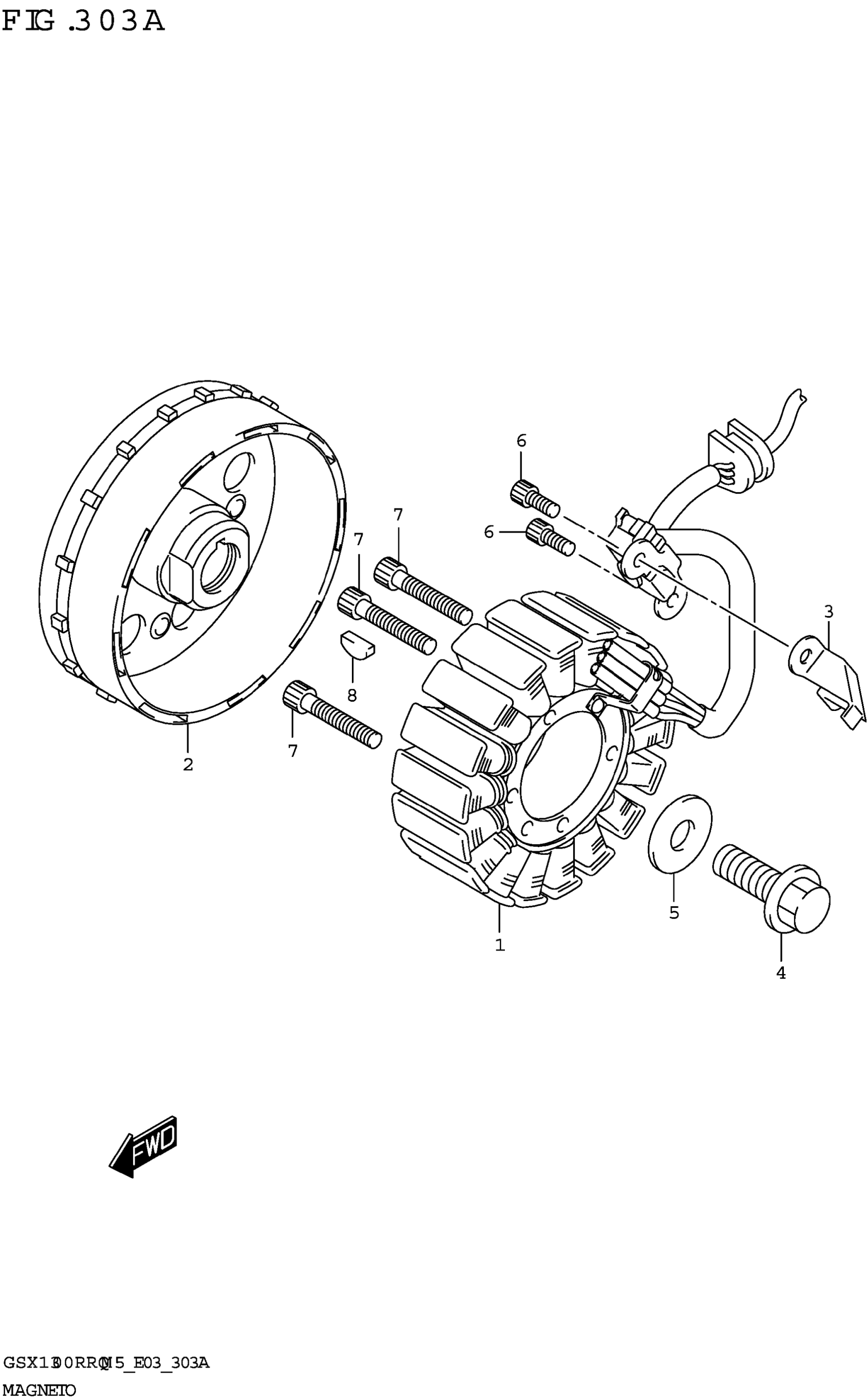

Suzuki GSX1300RRQKM5 (2025) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAGNETO

32101-24F22

$406.08

2

ROTOR ASSY,MAGNETO

32102-10L00

$433.13

3

CLAMP,MAGNETO LEAD

32371-24F00

$6.30

4

BOLT (12X30)

09103-12028

$6.70

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$3.16

8

KEY (B:4,D:16,H6.5)

09420-04008

$3.42
