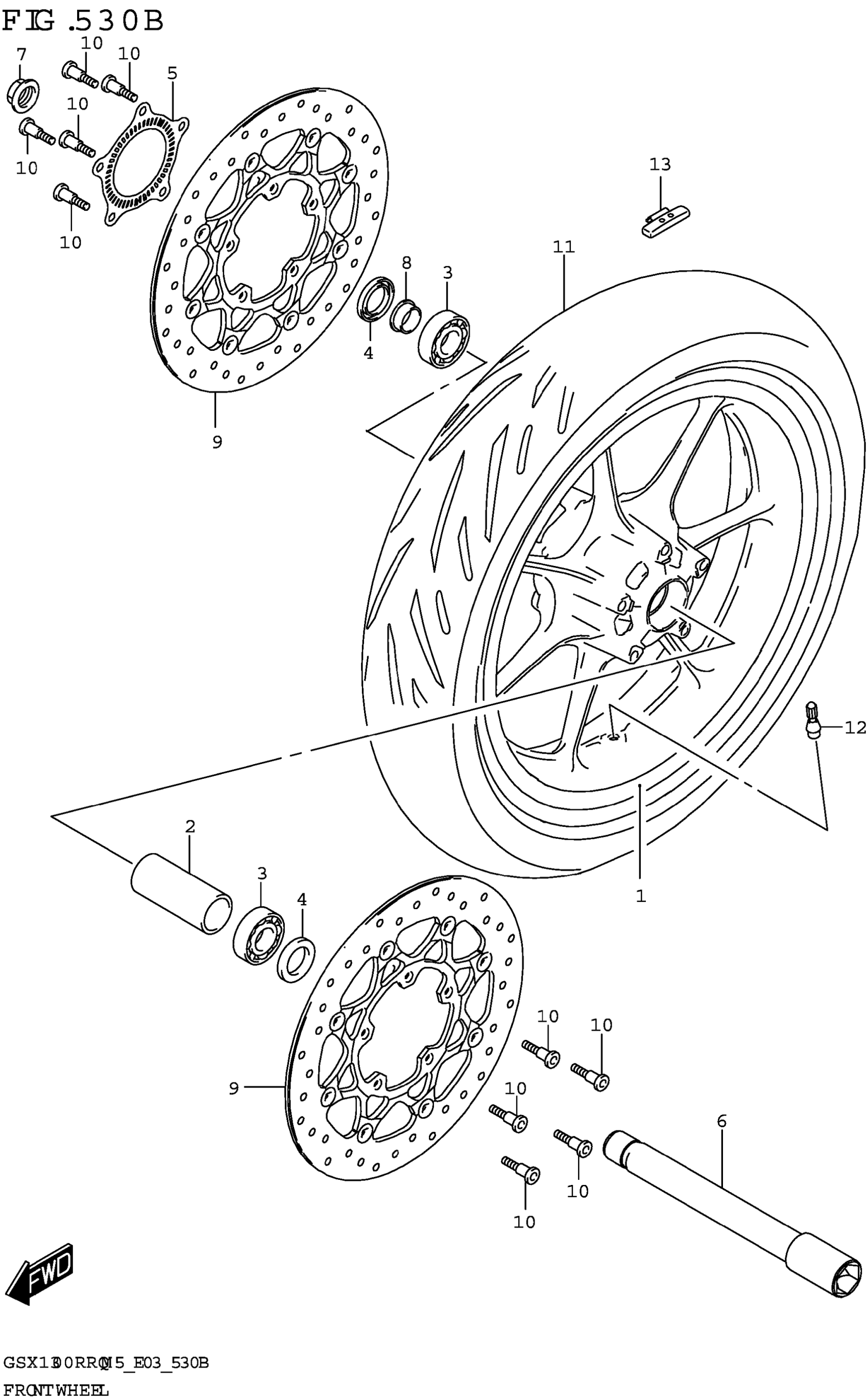

Suzuki GSX1300RRQKM5 (2025) FRONT WHEEL (GSX1300RRQK:(E03,E33)) Diagram

Description

Price

1-1

WHEEL,FRONT (BLACK) | K) BODY COLOR:JRU,YVB

54111-10L00-019

$631.70

1-2

WHEEL,FRONT (SILVER) | BODY COLOR:DKX,DMX,DNX

54111-10L00-YMY

$474.36

1-3

WHEEL,FRONT (BLUE) | BODY COLOR:DQX,C9X,DSX

54111-10L00-YLY

$469.27

SPACER,FR HUB BEARING

54731-33E20

$49.02

BEARING (25X52X15)

09262-25191

$24.28

.SEAL,OIL (32X52X7)

09285-32004

$7.98

RING,SPEED SENSOR FR

54162-10L00

$39.90

AXLE,FRONT

54711-10L00

$96.23

NUT,FR AXLE

54712-47H00

$41.53

SPACER,FR AXLE,R

54751-41G10

$19.66

DISC,FRONT BRAKE

59210-10L00

$313.70

BOLT

09106-08204

$3.46

TIRE,FRONT 120/70ZR17M/C (BS) | ))

55110-10L01

$217.63

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

13-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

13-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

13-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47
