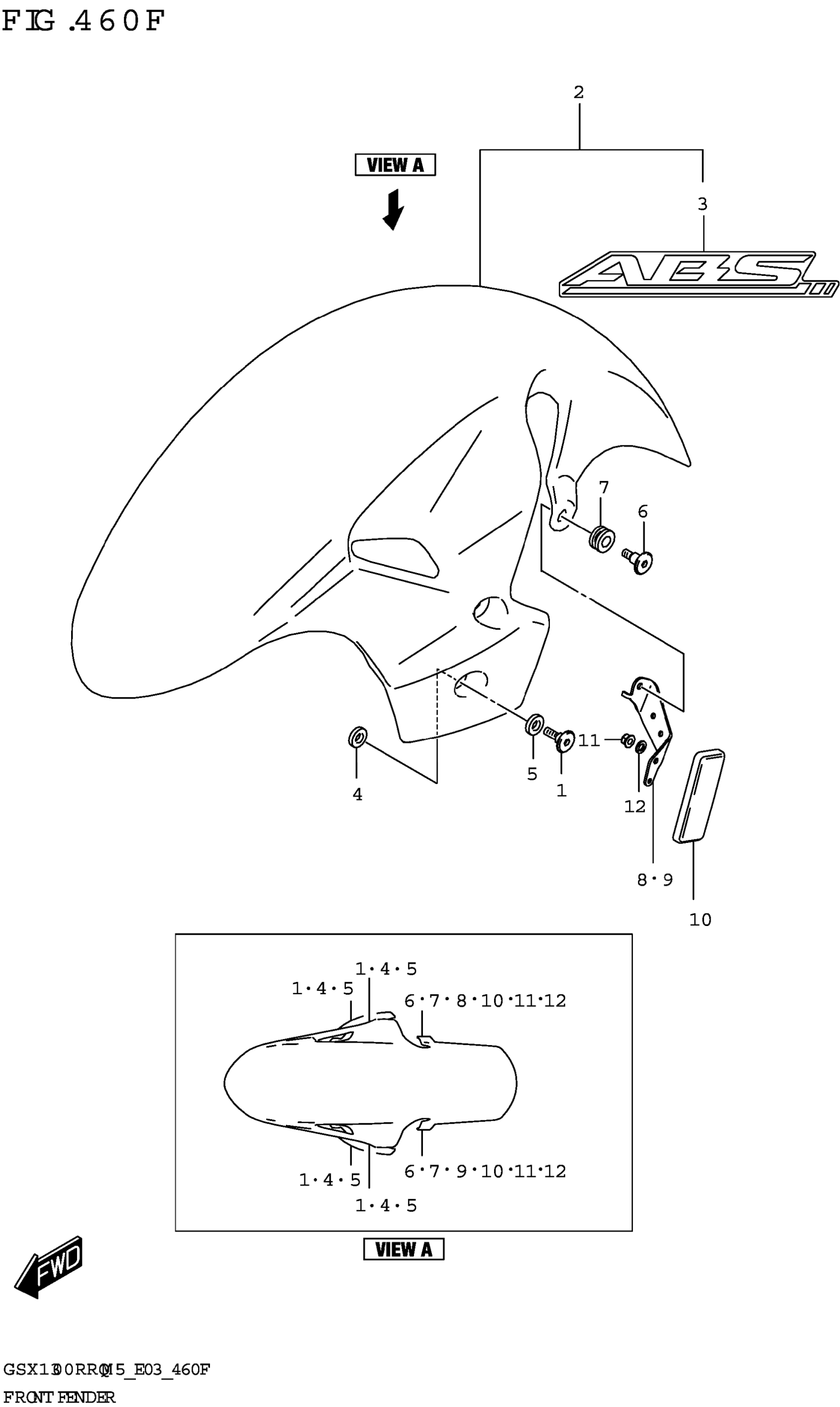

Suzuki GSX1300RRQKM5 (2025) FRONT FENDER (GSX1300RRQK:(E03,E33)) Diagram

BOLT,SEAT (6X20)

45241-17K00

$3.35

FENDER,FRONT (SILVER) | BODY COLOR:JRU,DKX,DQX

53110-10L00-YMD

$212.08

FENDER,FRONT (BLACK) | BODY COLOR:YVB,DMX,DQX

53110-10L00-YVB

$212.08

.EMBLEM,ABS (GRAY) | BODY COLOR:ASU

68151-44G01-1ZY

$9.60

.EMBLEM,"ABS" | BODY COLOR:C0T

68151-17K10-C14

Unavailable

.TAPE, FR FENDER

53121-28K00

$3.59

WASHER

53121-33E00

$3.43

SCREW (6X20)

09139-06236

$2.82

CUSHION (9X18X9.5)

09320-09016

$1.97

BRACKET,FRONT SIDE RR,R

47451-10L10

$11.08

BRACKET,FRONT SIDE RR,L

47455-10L10

$11.08

REFLEX REFLECTOR ASSY,FR SIDE

35950-43440

$11.70

NUT

08319-3105B

$3.55

WASHER,LOCK

08321-0105B

$2.83
