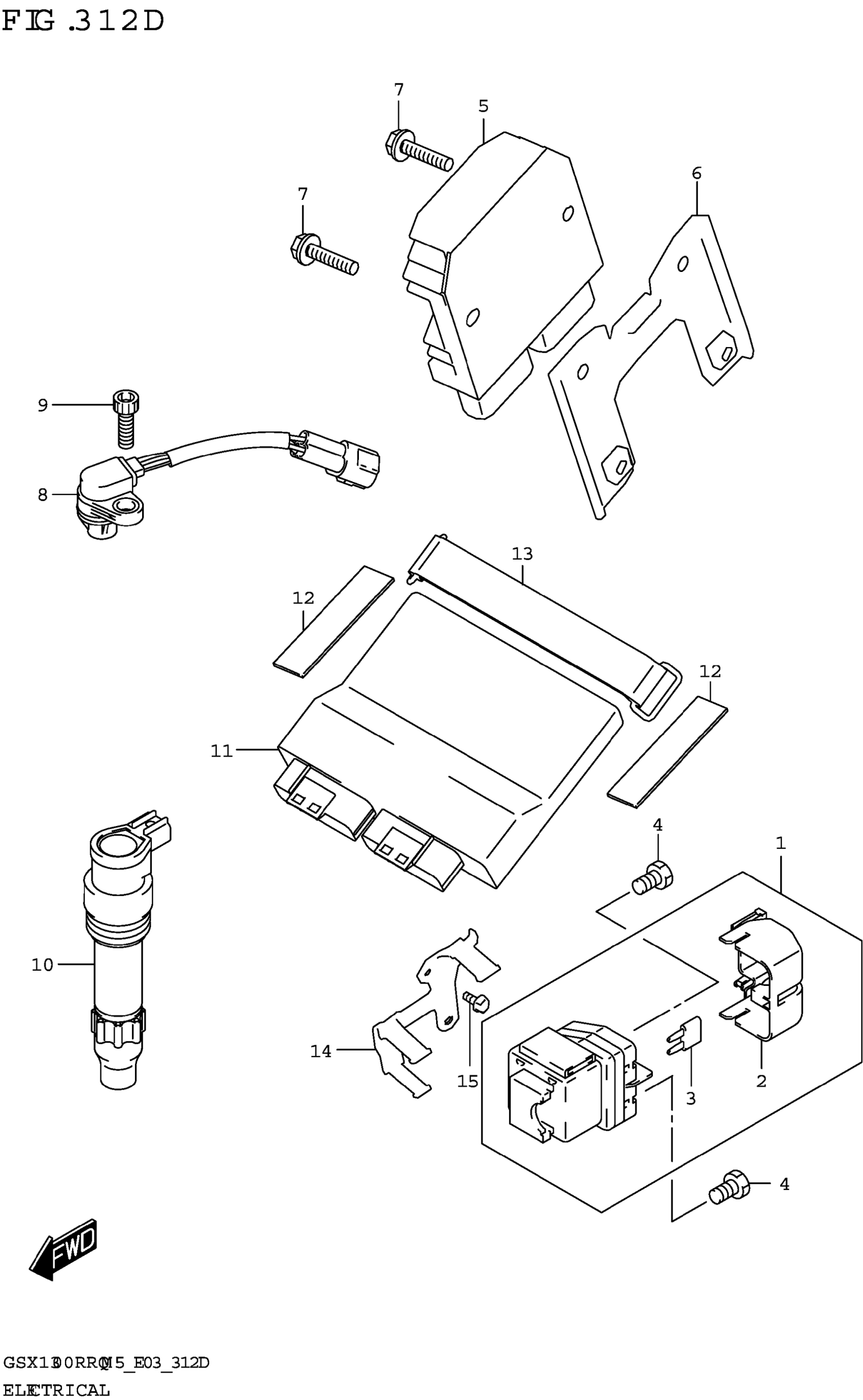

Suzuki GSX1300RRQKM5 (2025) ELECTRICAL (E33) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-44G00

$101.09

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-26J10

$194.70

6

BRACKET,RECTIFIER

94560-10L00

$21.80

7

SCREW

02162-0625B

$2.10

8

SENSOR ASSY,CAM POSITION

33220-01H01

$108.00

9

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

10

COIL ASSY,IGNITION

33410-10L00

$97.20

11

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

$923.70

12

.PROTECTOR (20X90X2.0)

33652-38A11

$1.49

13

BAND

09462-00007

$4.11

14

BRACKET,RELAY

47423-10L00

$9.30

15

BOLT

01550-0616A

$1.97
