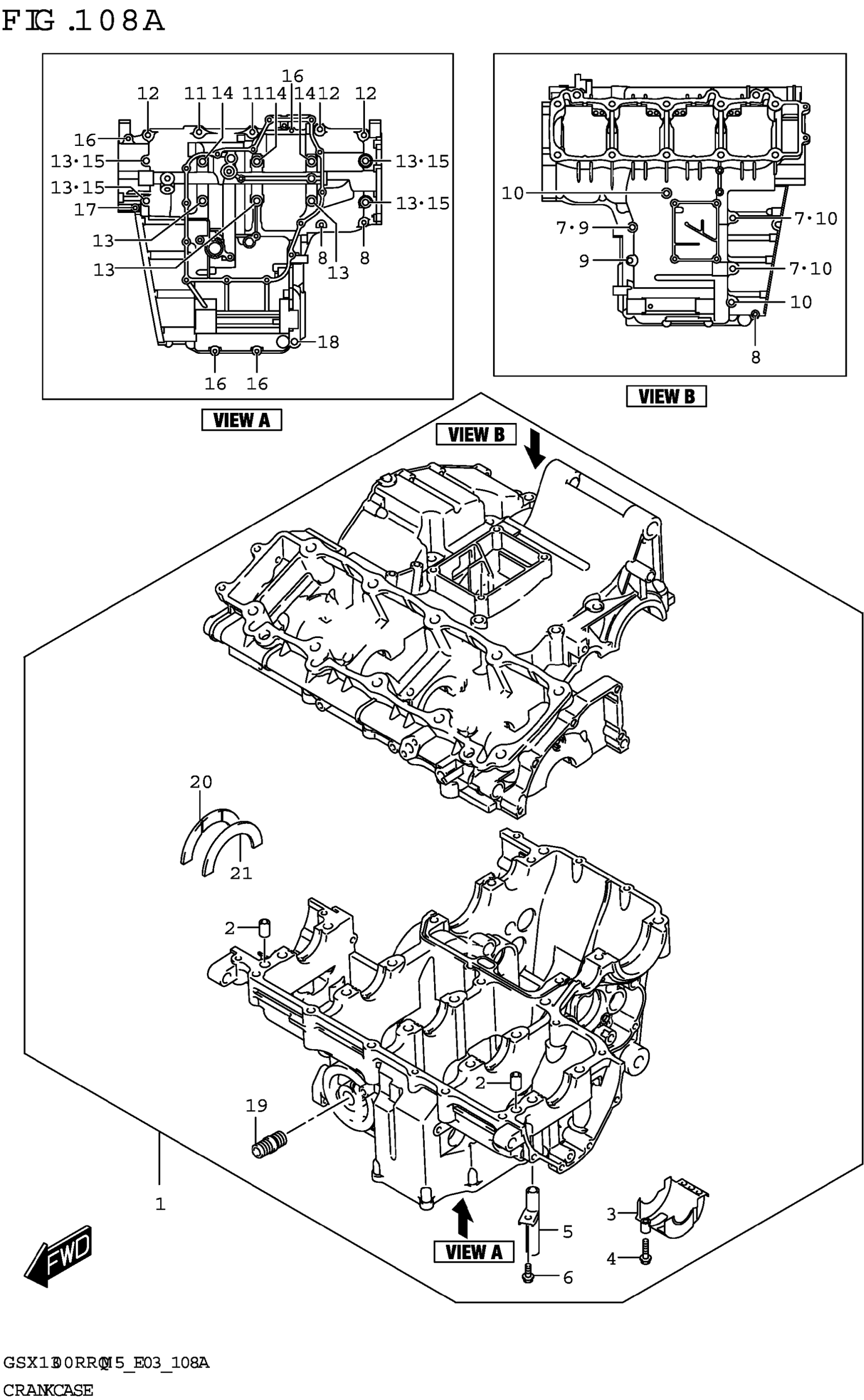

Suzuki GSX1300RRQKM5 (2025) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-10810

$2,577.73

2

PIN,CRANKCASE

11319-33E50

$5.32

3

.SEPARATOR,OIL

11323-24F10

Unavailable

4

BOLT

01547-0625A

$2.01

5

.UNION,BREATHER

11328-24F00

$18.67

6

BOLT

01547-0650A

$2.46

7

GASKET (8.2X14X1)

09168-08016

$1.65

8

BOLT

01547-0650A

$2.46

9

.BOLT

01550-0865A

$3.51

10

.BOLT

01550-0880A

$3.61

11

.BOLT (8X60)

09103-08155

Unavailable

12

.BOLT (8X50)

09103-08355

$4.25

13

.BOLT (9X95)

09103-09008

$7.59

14

.BOLT (9X115)

09103-09010

$9.92

15

.GASKET (10.2X20X2.3)

09168-10031

$2.03

16

BOLT

01547-0640A

$2.32

17

BOLT

01547-0660A

$2.82

18

.BOLT

01550-1060A

$4.58

19

UNION,OIL STAND

16591-06B01

$7.05

20

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

21-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$12.80

21-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$12.72

21-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$12.72

21-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

21-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$13.28

21-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$13.28
