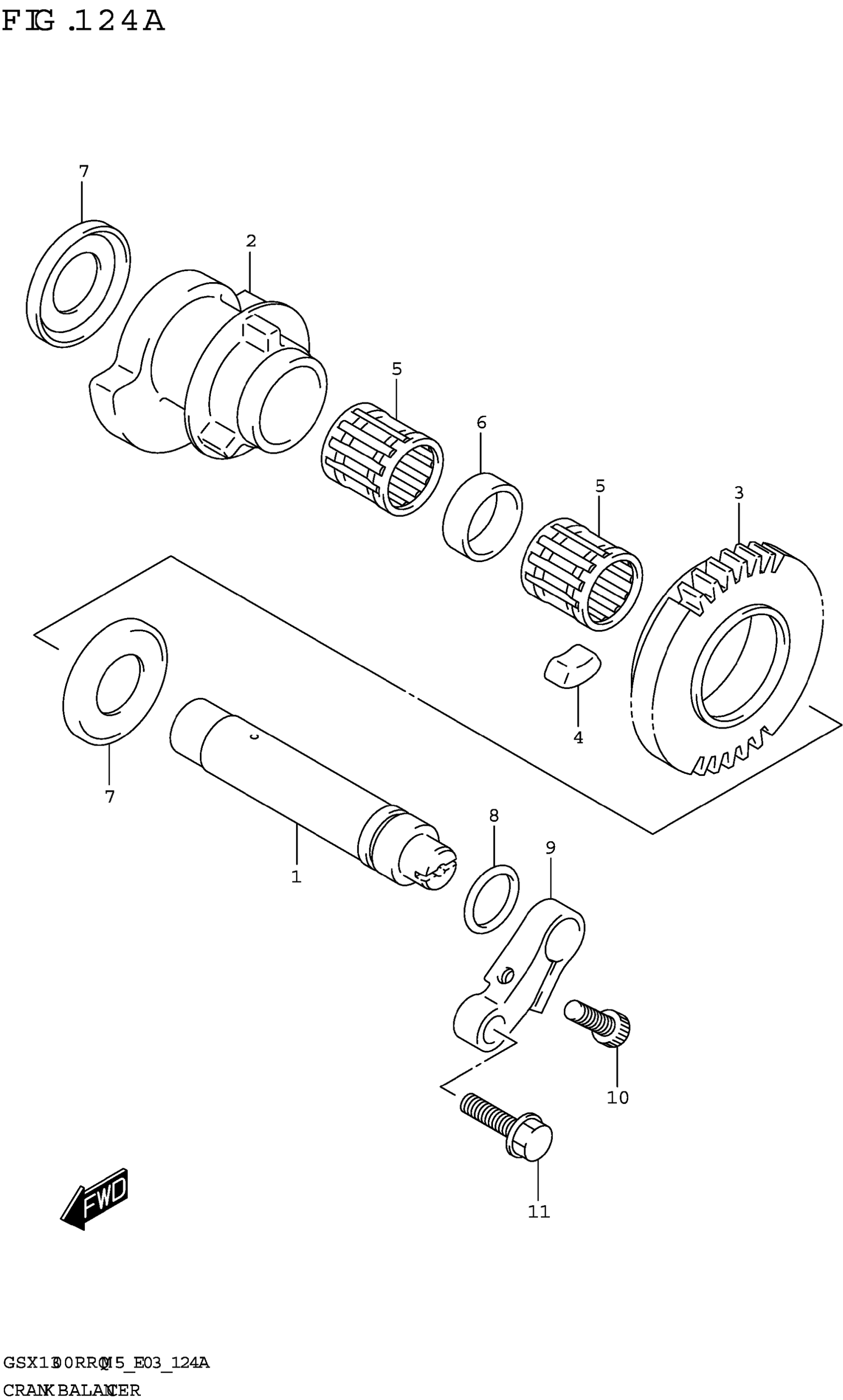

Suzuki GSX1300RRQKM5 (2025) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT,CRANK BALANCER

12651-10L00-0F0

$103.55

2

BALANCER,CRANK

12654-24F00-0F0

Unavailable

3

GEAR,CRANK BALANCER

12666-24F20

$118.62

4

DAMPER,BALANCER GEAR

12686-24F00

$10.22

5

BEARING

09263-19017

$43.53

6

SPACER,CRANK BALANCER

12668-10L00

$12.58

7

WASHER

09169-21001

$9.53

8

O-RING (D:1.9,ID:16.8)

09280-17007

$5.77

9

ARM,BALANCER SHAFT

12681-26D02

$73.42

10

BOLT

07130-0620A

$2.50

11

BOLT (6X20)

09103-06286

$2.20
