Description

Price

1

CHAIN,CAMSHAFT DRIVE | 0412A SV X 136LE)

12760-24F01

$157.01

2

GUIDE,CAM CHAIN NO.1

12771-15H01

$41.29

3

GUIDE,CAM CHAIN NO.2

12782-10L00

$23.73

4

BOLT

07130-0612A

$2.50

5

TENSIONER,CAM CHAIN

12811-10L00

$86.80

6

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.58

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

8

SCREW

02122-0612A

$1.49

9

ADJUSTER ASSY,TENSIONER

12830-15H10

$228.97

10

.GASKET,TENSIONER ADJUSTER

12837-02H00

$6.46

11

BOLT (6X25)

07130-0625A

$2.62

12

HOSE,CAM CHAIN TNSN ADJ OIL

12835-15H00

$126.18

13

BOLT,ADJ OIL HOSE UNION

12838-15H00

$6.60

14

GASKET (7.8X13.5X1.2)

09168-08034

$2.03

15

PLUG,ADJ OIL HOSE UNION

12839-15H01

$18.48

16

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

17

CLAMP (L:165)

09407-18402

$2.19

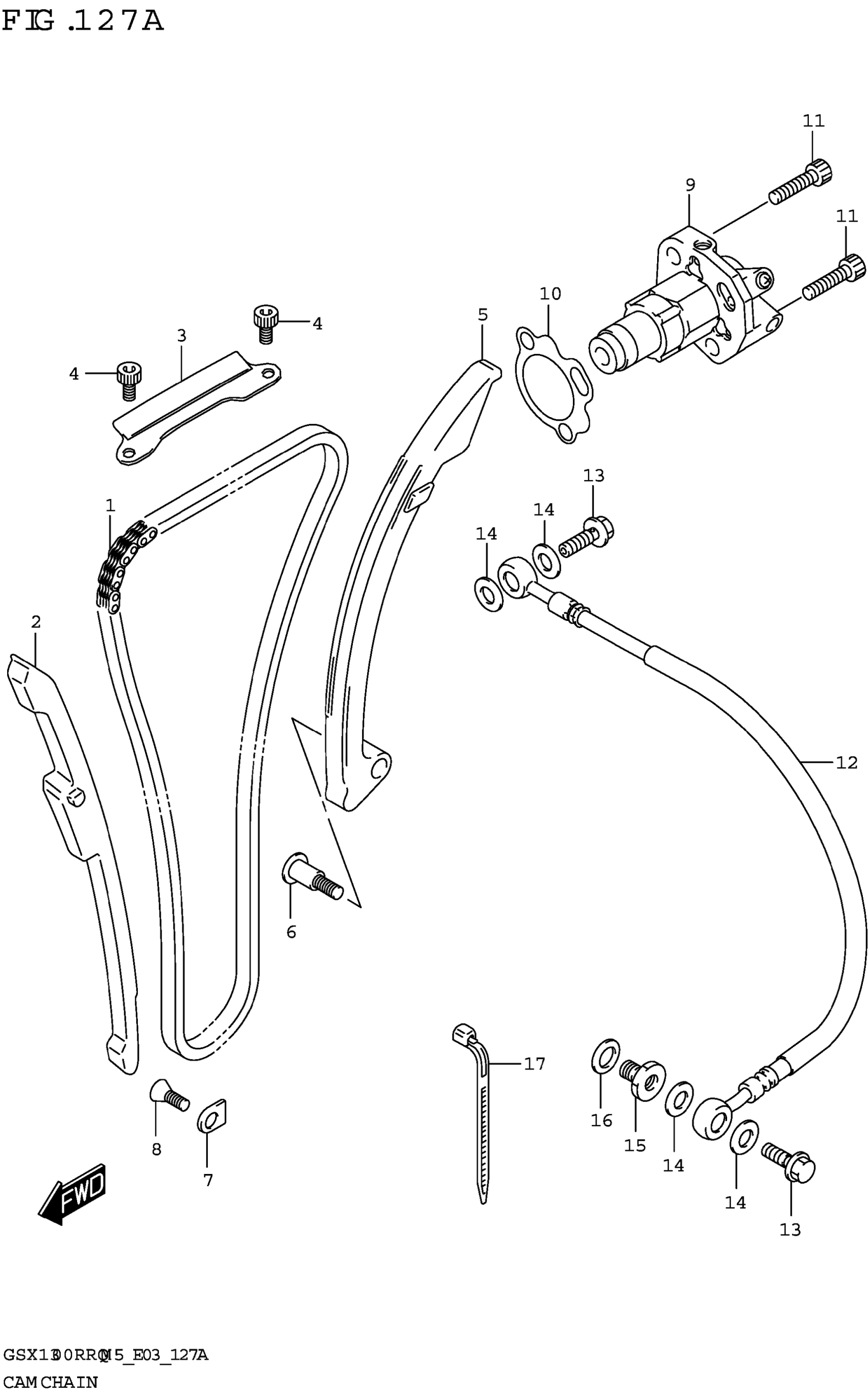

Suzuki GSX1300RRQKM5 (2025) CAM CHAIN Diagram
