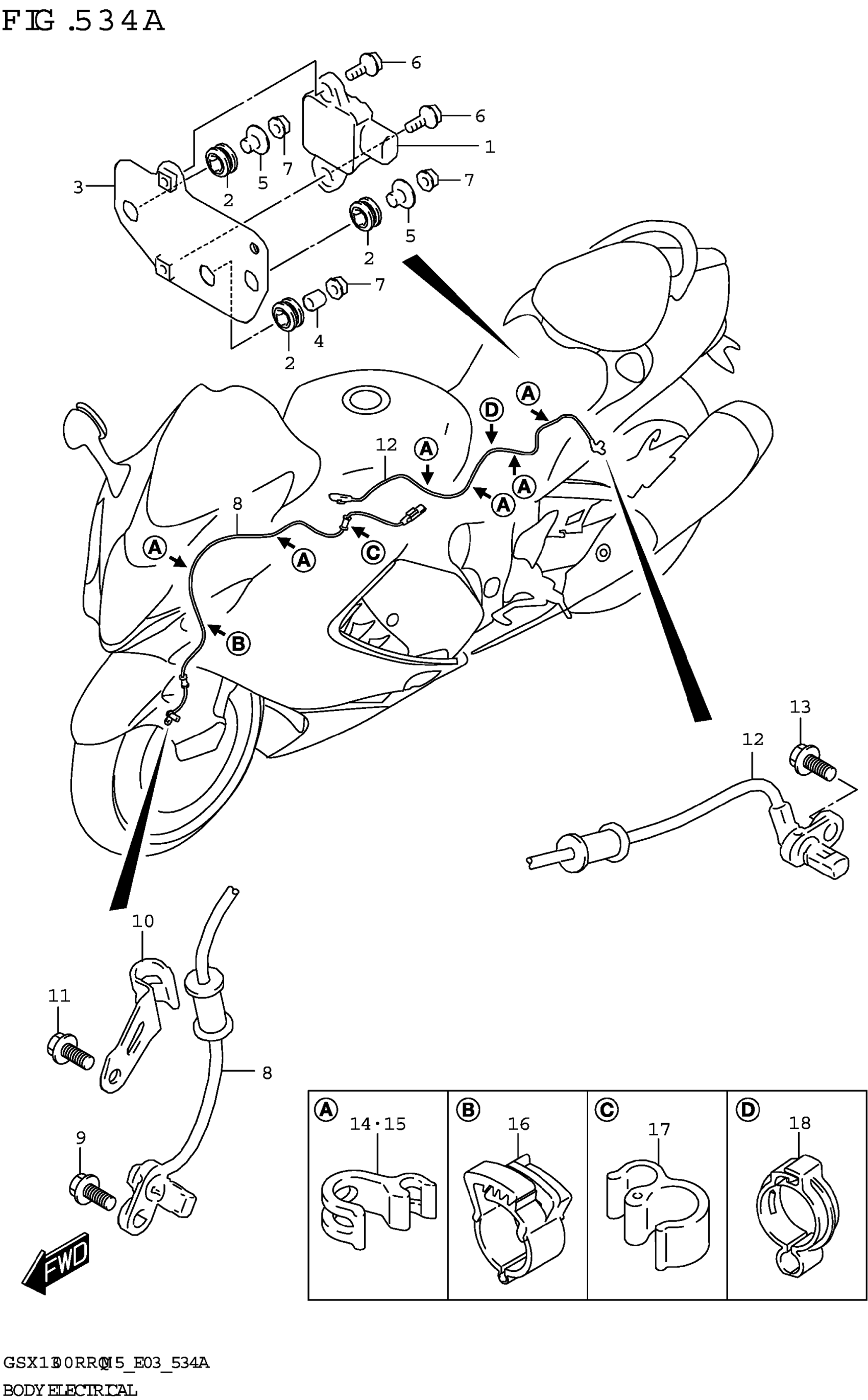

Suzuki GSX1300RRQKM5 (2025) BODY ELECTRICAL Diagram

#

Description
Price

1

SENSOR,INERTIAL

55750-06L00

$1,314.13

2

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77

3

HOLDER,INERTIAL SENSOR

55760-10L00

$12.52

4

SPACER (6.5X9X10)

09180-06307

$3.05

5

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

6

BOLT

01550-0616A

$1.97

7

NUT (6X12)

08316-1006A

$2.19

8

SENSOR,FR WHEEL SPEED

55710-10L00

$75.40

9

BOLT

09103-06550

$2.38

10

CLAMP,FR WHEEL SPEED SENSOR

55731-06L00

$11.00

11

BOLT

01547-0616B

$2.45

12

SENSOR,RR WHEEL SPEED

65710-10L00

$74.21

13

BOLT

09103-06550

$2.38

14

CLAMP,SENSOR LEAD

55734-06L00

$3.08

15

CLAMP,SENSOR LEAD

55734-06L00

$3.08

16

CLAMP

09408-00184

$2.92

17

CLAMP

09408-00241

Unavailable

18

CLAMP

09408-00259

Unavailable
