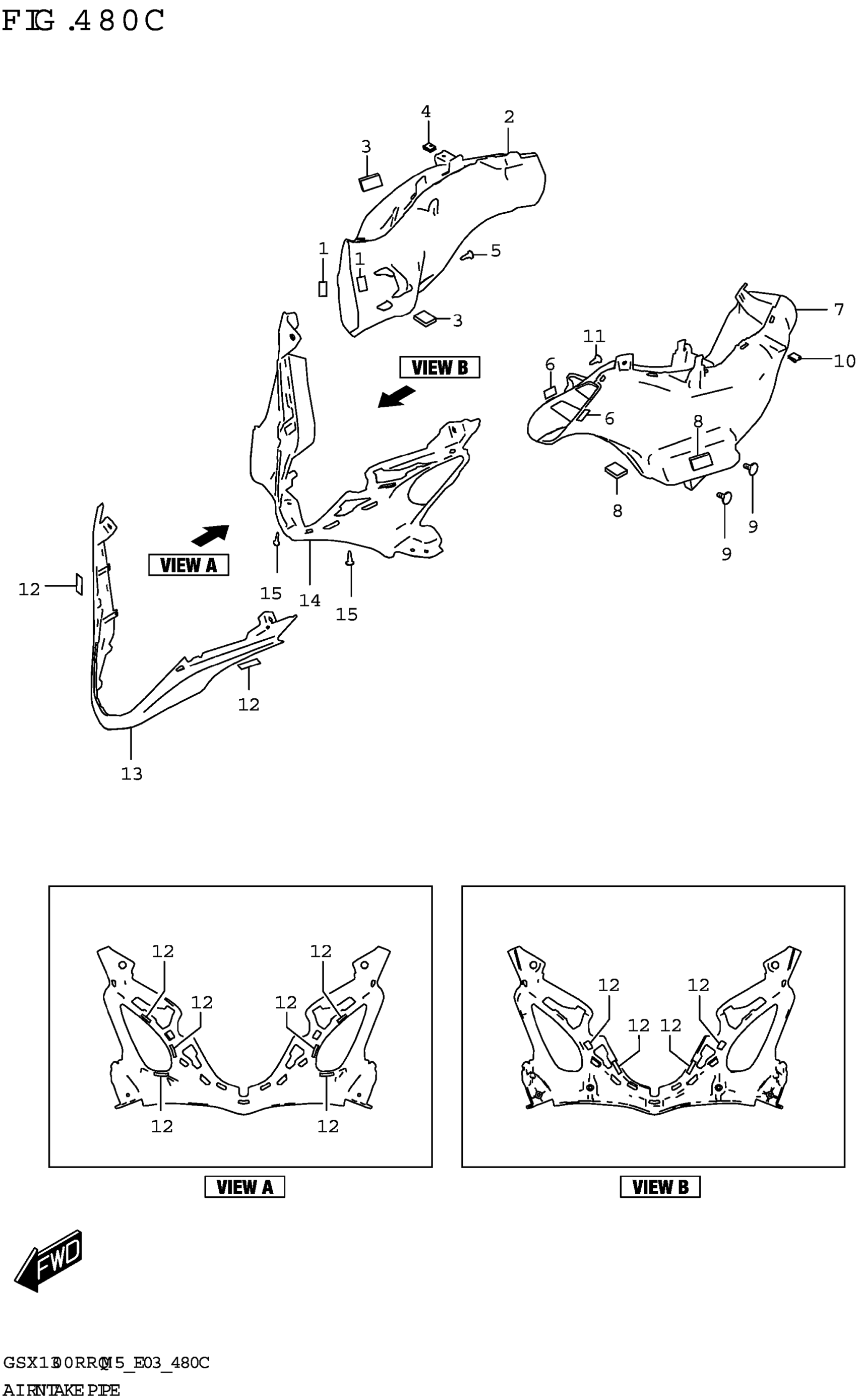

Suzuki GSX1300RRQKM5 (2025) AIR INTAKE PIPE (GSX1300RRQK:(E03,E33)) Diagram

PAD (8X20X2)

73415-70A00

$1.56

PIPE,AIR INTAKE,R

94420-10L00

$102.22

CUSHION (16X30X3.5)

94633-31J00

$2.44

NUT (M5)

09148-05047

$2.11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

PAD (8X20X2)

73415-70A00

$1.56

PIPE,AIR INTAKE,L

94430-10L00

$102.22

CUSHION (16X30X3.5)

94633-31J00

$2.44

SCREW (6X16)

09139-06158

$4.90

NUT (M5)

09148-05047

$2.11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

CUSHION,INTAKE COVER

94644-31F00

$1.89

COVER,INTAKE CTR (BLACK) | BODY COLOR:JRU,YVB

94671-10L00-YVB

$112.60

COVER,INTAKE CTR (SILVER) | BODY COLOR:DKX,DMX,DNX

94671-10L00-YMC

$168.55

COVER,INTAKE CTR (BLUE) | BODY COLOR:DQX,C9X,DSX

94671-10L00-YKY

$125.97

COVER,INTAKE REAR

94681-10L00

$89.92

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
