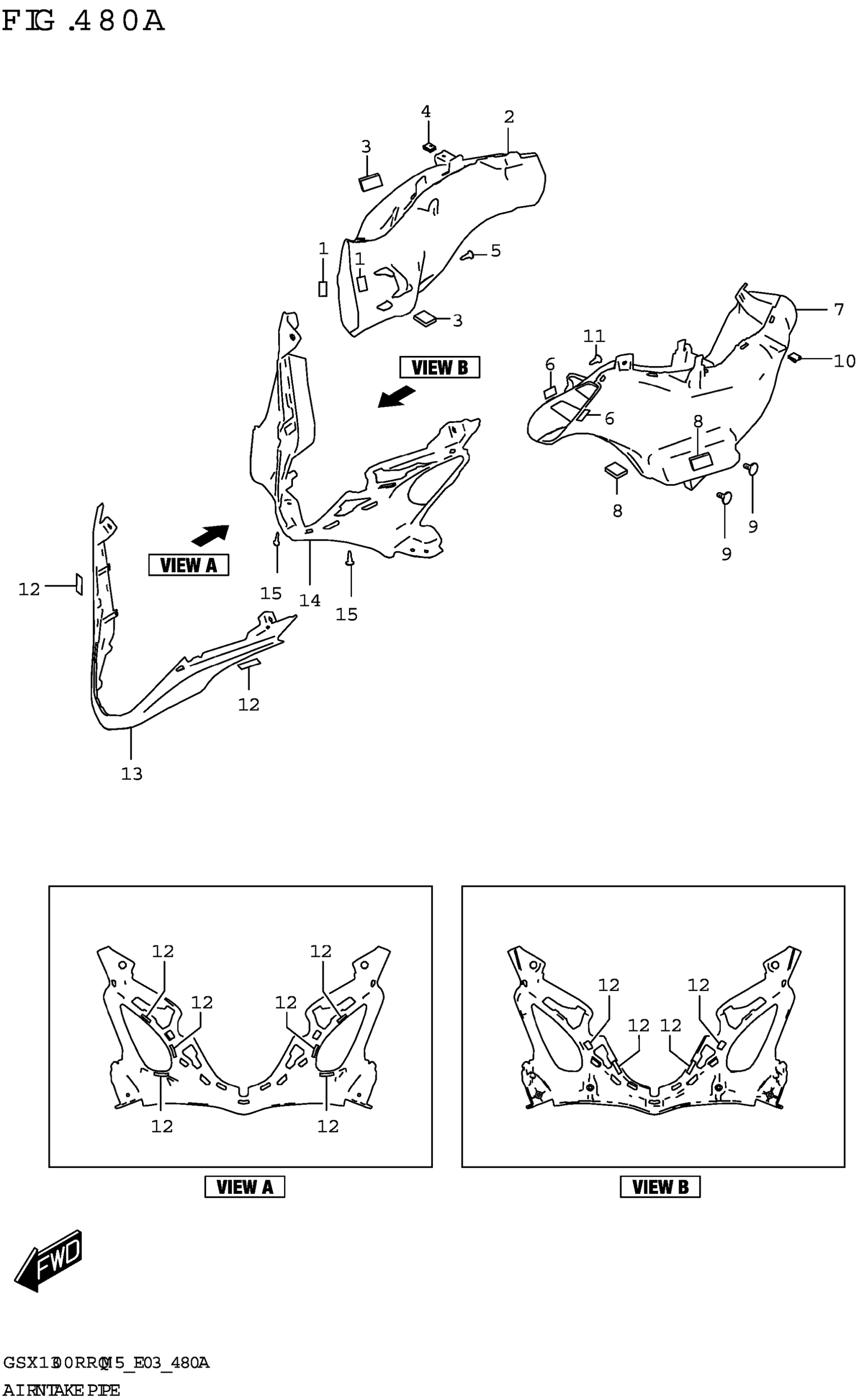

Suzuki GSX1300RRQKM5 (2025) AIR INTAKE PIPE (GSX1300RRQ) Diagram

Description

Price

PAD (8X20X2)

73415-70A00

$1.50

PIPE,AIR INTAKE,R

94420-10L00

$114.80

CUSHION (16X30X3.5)

94633-31J00

$2.43

NUT (M5)

09148-05047

$2.02

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

PAD (8X20X2)

73415-70A00

$1.50

PIPE,AIR INTAKE,L

94430-10L00

$114.80

CUSHION (16X30X3.5)

94633-31J00

$2.43

SCREW (6X16)

09139-06158

$4.42

NUT (M5)

09148-05047

$2.02

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

CUSHION,INTAKE COVER

94644-31F00

$1.31

13-1

COVER,INTAKE CTR (BLUE) | BODY COLOR:ASU

94671-10L00-YKY

$141.50

13-2

COVER,INTAKE CTR (SILVER) | BODY COLOR:BLG

94671-10L00-YMC

$222.72

13-3

COVER,INTAKE CTR (BLACK) | BODY COLOR:C0T

94671-10L00-YVB

$126.48

COVER,INTAKE REAR

94681-10L00

$101.00

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
