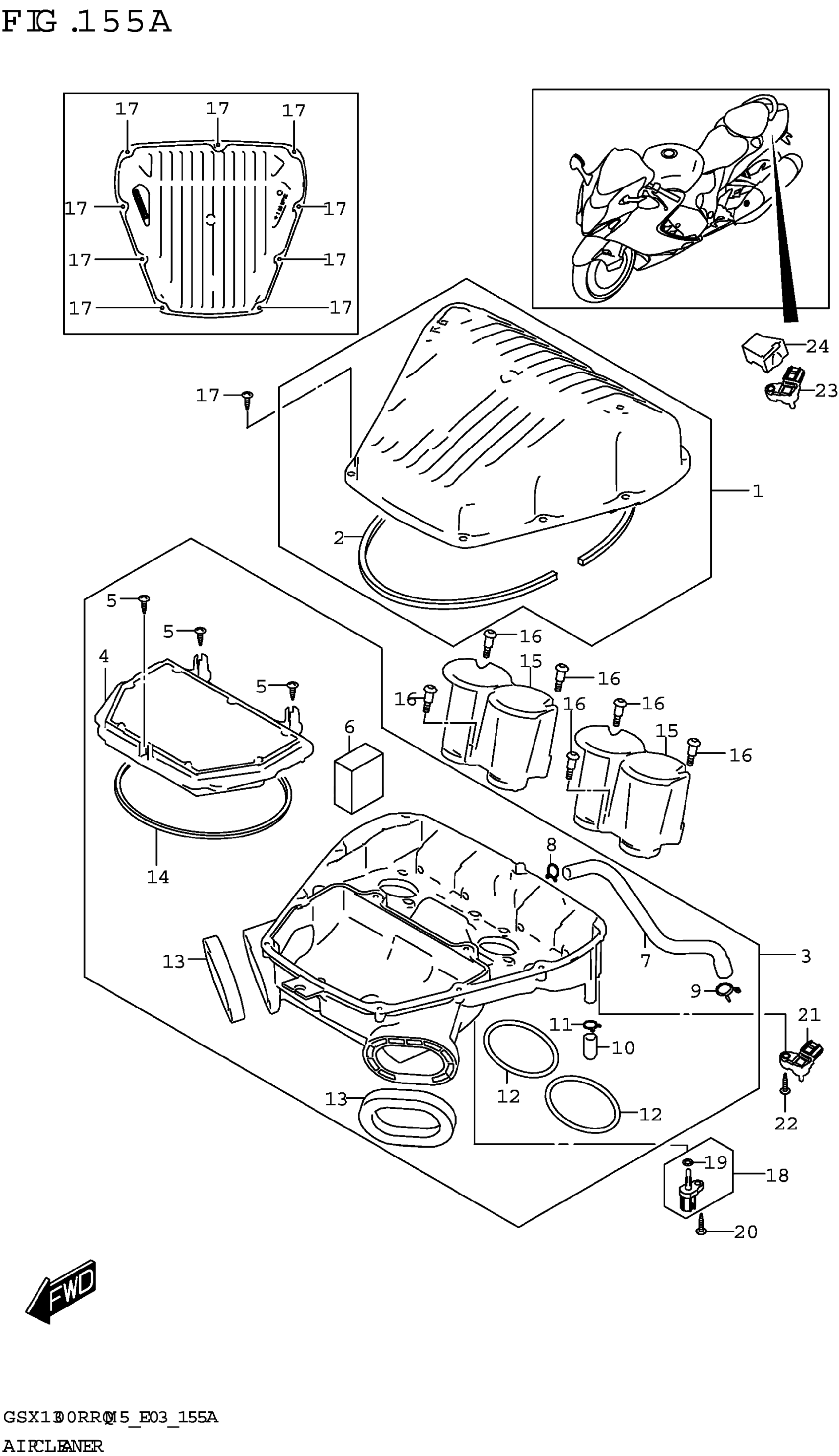

Suzuki GSX1300RRQKM5 (2025) AIR CLEANER Diagram

#

Description
Price

1

CAP,AIR CLEANER This part replaces 13740-10L00.

13740-10L01

$62.60

2

.GASKET,CAP

13758-10L10

$14.91

3

CASE,AIR CLNR

13720-10L00

$246.50

4

.FILTER ASSY,AIR CLNR

13780-10L00

$52.68

5

SCREW

03541-0520A

$1.81

6

.FILTER,BRETHER

13788-10L00

$2.89

7

.TUBE,BRETHER

13853-10L00

$23.00

8

.CLIP (ID:14.5)

09401-14101

$2.37

9

.CLIP (ID:16.5)

09401-16401

$2.87

10

.PLUG

13878-10G01

$6.53

11

.CLIP

09401-14301

$2.17

12

.GASKET,THB CASE

13757-10L00

$6.02

13

.CUSHION,DUCT

13736-10L00

$9.20

14

.GASKET,FILTER

13756-10L00

$4.88

15

FUNEL,OUTLET

13881-10L00

$14.10

16

BOLT,AIR CLEANER CASE

13831-47H00

$7.73

17

SCREW

03541-0520A

$1.81

18

SENSOR,AIR TEMP

13650-41F10

$71.40

19

O-RING

13655-41F10

Unavailable

20

SCREW

03511-0516A

$1.88

21

SENSOR,BOOST

18590-18K00

$350.62

22

SCREW

03541-0525B

$2.34

23

SENSOR,BOOST

18590-18K10

$234.95

24

HOLDER, SENSOR

18595-04K01

$10.20
