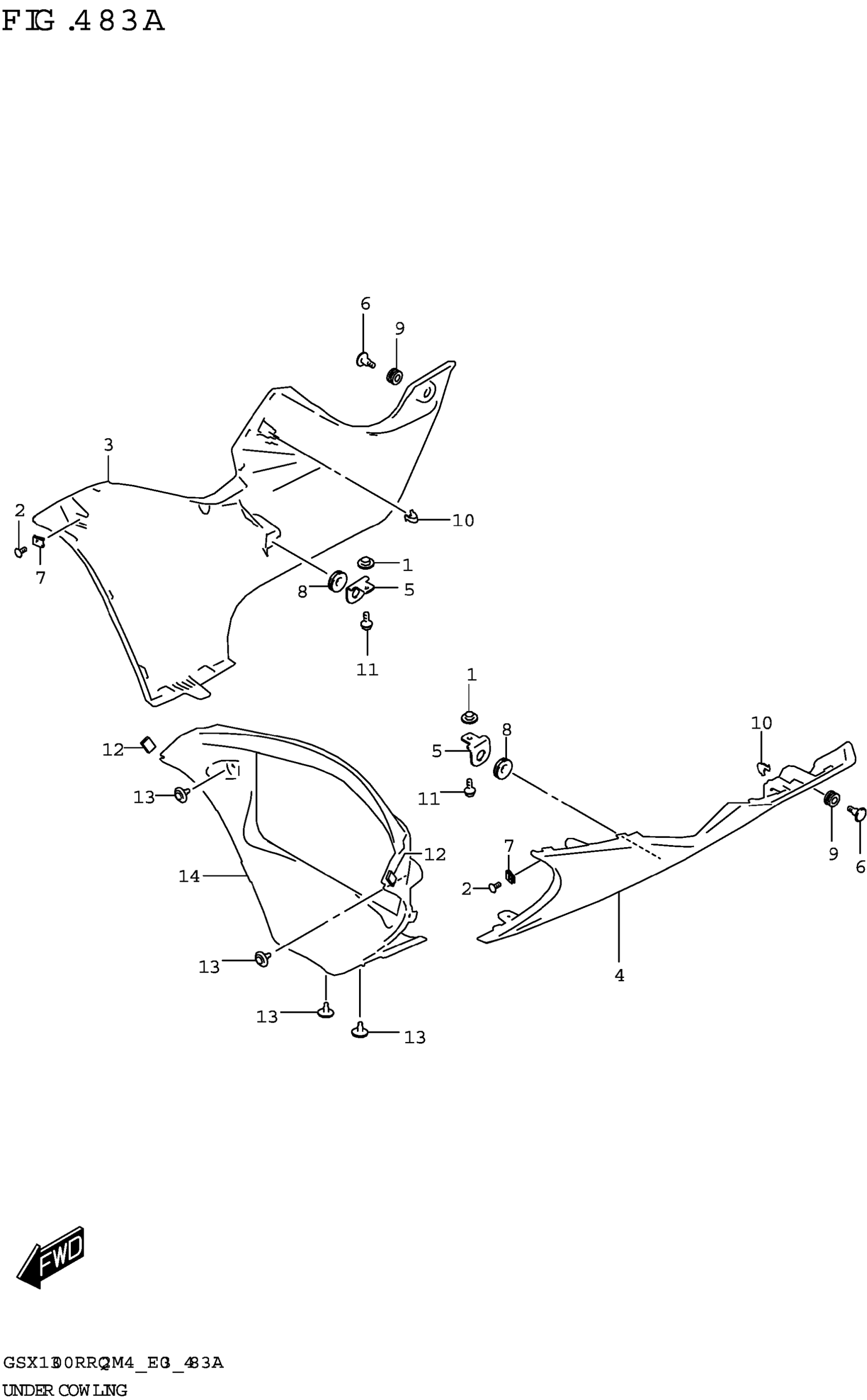

Suzuki GSX1300RRQ2M4 (2024) UNDER COWLING Diagram

#

Description
Price

1

NUT (M6)

09159-06086

$2.04

2

SCREW

03541-0512A

$1.49

3-1

COWLING,UNDER,R (WHITE) | BODY COLOR:JWN

94473-10L00-YUH

$215.02

3-2

COWLING,UNDER,R (BLACK) | BODY COLOR:KGL

94473-10L00-YVB

$182.78

3-3

COWLING,UNDER,R (GRAY) | BODY COLOR:CJH

94473-10L00-YLF

$196.87

4-1

COWLING,UNDER,L (WHITE) | BODY COLOR:JWN

94483-10L00-YUH

$216.08

4-2

COWLING,UNDER,L (BLACK) | BODY COLOR:KGL

94483-10L00-YVB

$182.78

4-3

COWLING,UNDER,L (GRAY) | BODY COLOR:CJH

94483-10L00-YLF

$196.87

5

BRACKET,UNDER COWL

94541-10L00

$12.83

6

SCREW (6X20)

09139-06206

$3.32

7

NUT (M5)

09148-05038

$1.97

8

CUSHION (8X26X7)

09320-08028

$3.04

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

CLIP (10.5X14.3)

09409-08326

$2.48

11

BOLT

01550-0616A

$1.97

12

PAD (8X20X2)

73415-70A00

$1.56

13

CLIP

94479-35F00

$5.62

14

COWLING,UNDER CTR

94491-10L00

$61.70
