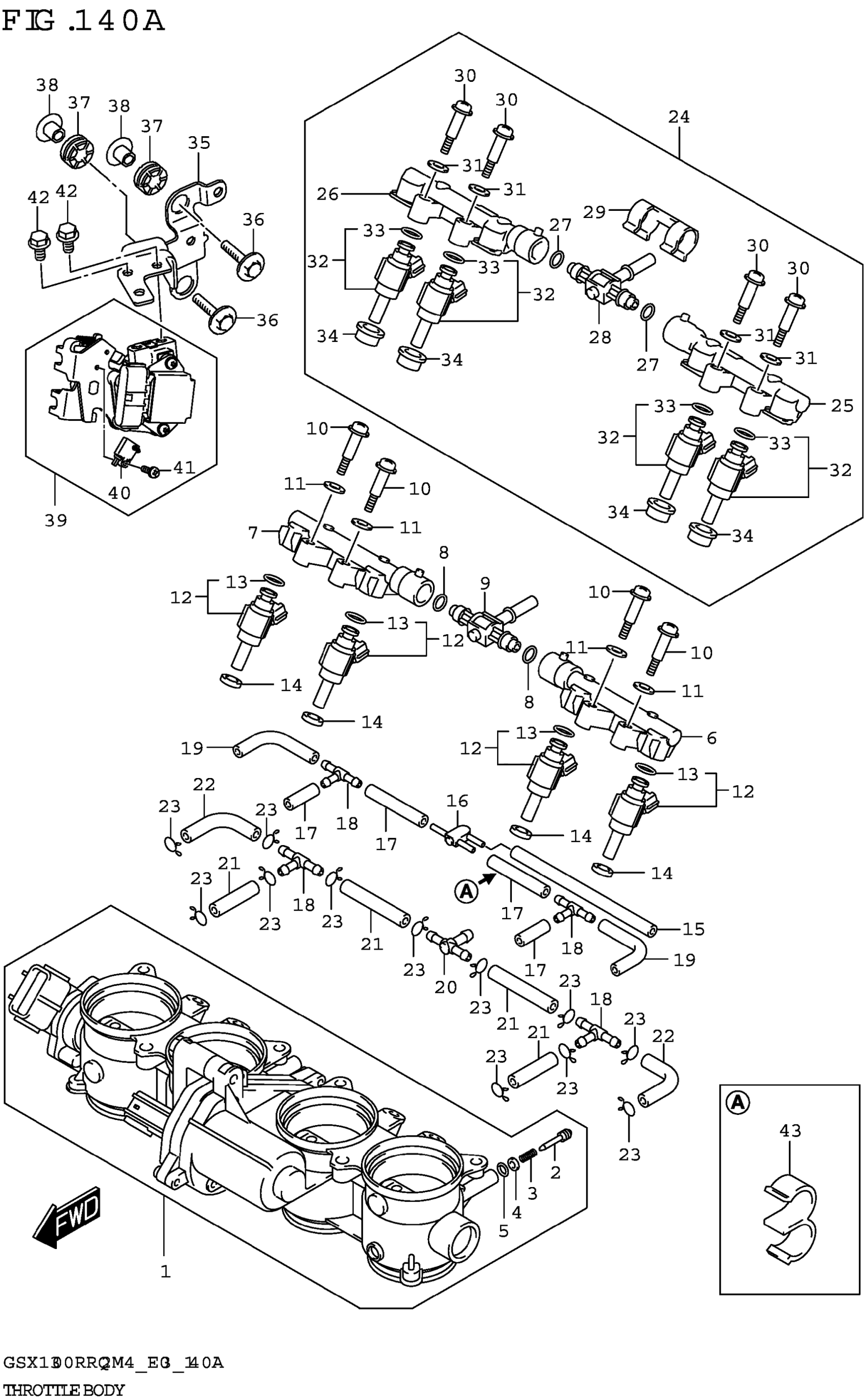

Suzuki GSX1300RRQ2M4 (2024) THROTTLE BODY (E33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-10L00

$957.85

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING

13295-29901

$4.34

6

DELIVERY PIPE

13471-10L00

$28.47

7

DELIVERY PIPE

13472-10L00

$28.47

8

O-RING

13374-32G00

$7.22

9

NIPPLE ASSY

13473-10L00

$35.27

10

SCREW

13601-29G00

$3.43

11

PACKING

13602-29G01

$2.43

12

INJECTOR ASSY

15710-14J00

$333.68

13

.O-RING

15717-58B00

$9.95

14

SEAL

15722-14J00

$11.36

15

HOSE

13683-01H01

$10.37

16

JOINT

13471-18H00

$10.48

17

HOSE (L:425)

13683-10F61

$17.10

18

3WAY,VACUUM HOSE

13685-02FA0

$7.05

19

HOSE (3.2X7.4X70)

13681-39F00-070

$2.98

20

NIPPLE

13685-04F10

$11.07

21

HOSE

13683-04K50

$12.60

22

HOSE (3.5X7.5X80)

13683-10L00

$2.87

23

CLIP This part replaces 13671-12C00.

09401-06101

$2.03

24

BODY ASSY,2ND INJECTOR

15900-10L00

$318.95

25

DELIVERY PIPE

13471-10L00

$28.47

26

DELIVERY PIPE

13472-10L00

$28.47

27

O-RING

13374-32G00

$7.22

28

NIPPLE ASSY

13473-10L00

$35.27

29

.CLIP

13474-17K00

$17.10

30

SCREW

13601-29G00

$3.43

31

PACKING

13602-29G01

$2.43

32

.INJECTOR ASSY

15710-17K10

$245.97

33

.O-RING

15717-58B00

$9.95

34

SEAL

15722-14J00

$11.36

35

BRACKET,ACCEL SENSOR

13571-10L00

$11.82

36

BOLT (6X30)

09116-06185

$2.66

37

CUSHION

09320-10055

$4.50

38

SPACER (6.5X10X11.6)

09180-06319

$3.85

39

BODY ASSY,ACCELERATOR

13500-10L00

$416.93

40

.SWITCH,CRS CONT CANCEL

13550-10L00

$35.35

41

.SCREW

13601-10L00

$2.25

42

BOLT

01550-0612A

$1.97

43

CLIP

09408-00200

$2.67
