Find the part on the Throttle Body diagram for your 2024 Suzuki GSX1300RRQ2M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

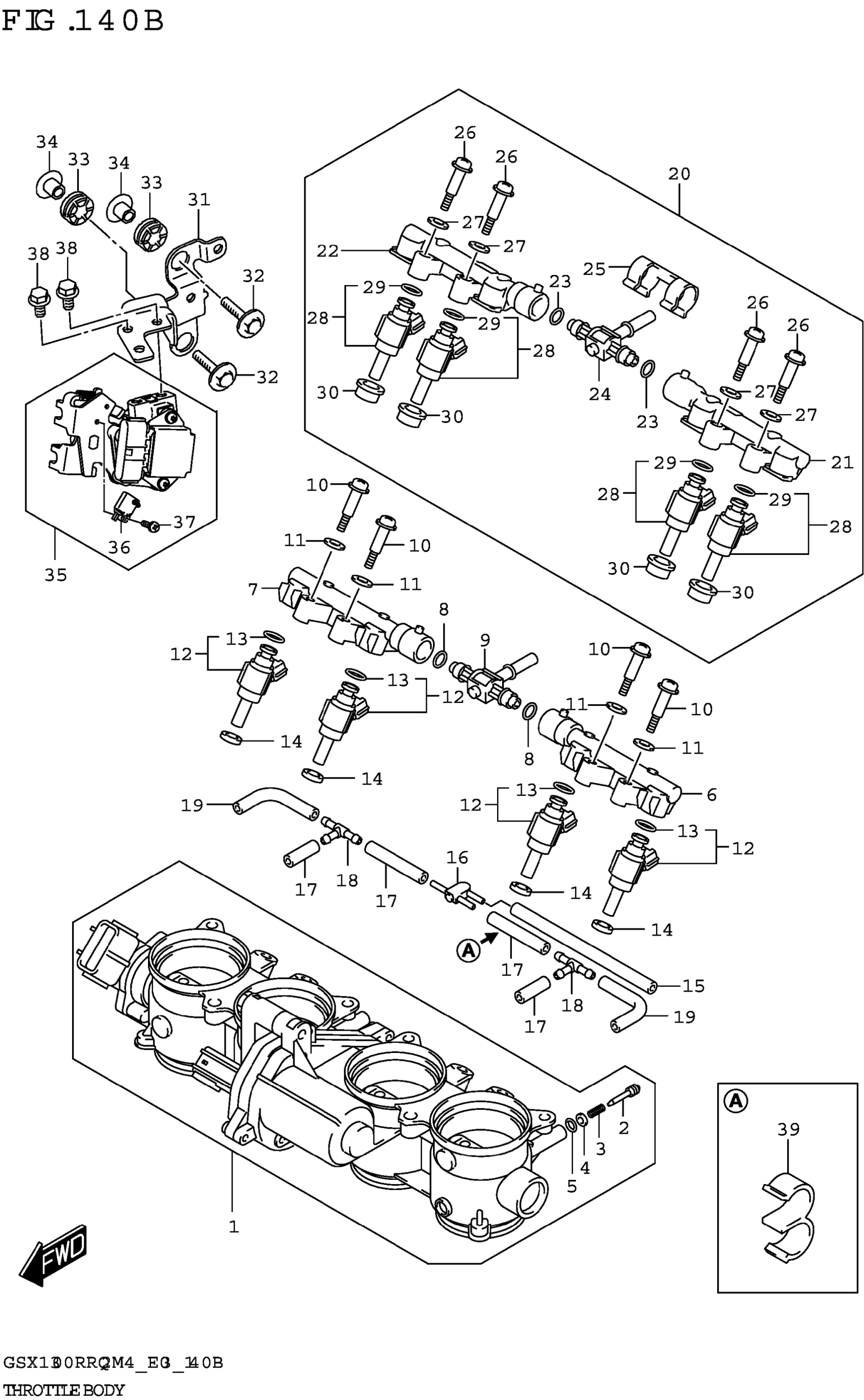

2024 Suzuki GSX1300RRQ2M4 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13405-10L10

1

$1,045.78

In stock

2

SCREW

13269-33E00

4
Out of stock

3

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

4

WASHER

13606-47A00

4
Out of stock

5

O-RING

13295-29901

4
Out of stock

6

DELIVERY PIPE

13471-10L00

1

$32.13

In stock

7

DELIVERY PIPE

13472-10L00

1

$32.13

In stock

8

O-RING

13374-32G00

2

$8.15

In stock

9

NIPPLE ASSY

13473-10L00

1

$39.82

In stock

10

SCREW

13601-29G00

4
Out of stock

11

PACKING

13602-29G01

4
Out of stock

12

INJECTOR ASSY

15710-14J00

4
Out of stock

13

.O-RING

15717-58B00

16
Out of stock

14

SEAL

15722-14J00

4
Out of stock

15

HOSE

13683-01H01

1
Out of stock

16

JOINT

13471-18H00

1
Out of stock

17

HOSE (L:425)

13683-10F61

2
Out of stock

18

3WAY,VACUUM HOSE

13685-02FA0

2
Out of stock

19

HOSE (3.2X7.4X70)

13681-39F00-070

2

$3.37

In stock

20

1

$354.93

In stock

21

DELIVERY PIPE

13471-10L00

1

$32.13

In stock

22

DELIVERY PIPE

13472-10L00

1

$32.13

In stock

23

O-RING

13374-32G00

2

$8.15

In stock

24

NIPPLE ASSY

13473-10L00

1

$39.82

In stock

25

.CLIP

13474-17K00

1

$19.30

In stock

26

SCREW

13601-29G00

4
Out of stock

27

PACKING

13602-29G01

4
Out of stock

28

.INJECTOR ASSY

15710-17K10

4

$273.72

In stock

29

.O-RING

15717-58B00

4
Out of stock

30

SEAL

15722-14J00

4
Out of stock

31

BRACKET,ACCEL SENSOR

13571-10L00

1

$13.33

In stock

32

BOLT (6X30)

09116-06185

2

$2.91

In stock

33

CUSHION

09320-10055

2
Out of stock

34

SPACER (6.5X10X11.6)

09180-06319

2

$4.92

In stock

35

BODY ASSY,ACCELERATOR

13500-10L00

1

$459.50

In stock

36

1

$39.88

In stock

37

.SCREW

13601-10L00

1

$2.55

In stock

38

BOLT

01550-0612A

2
Out of stock

39

CLIP

09408-00200

1
Out of stock
