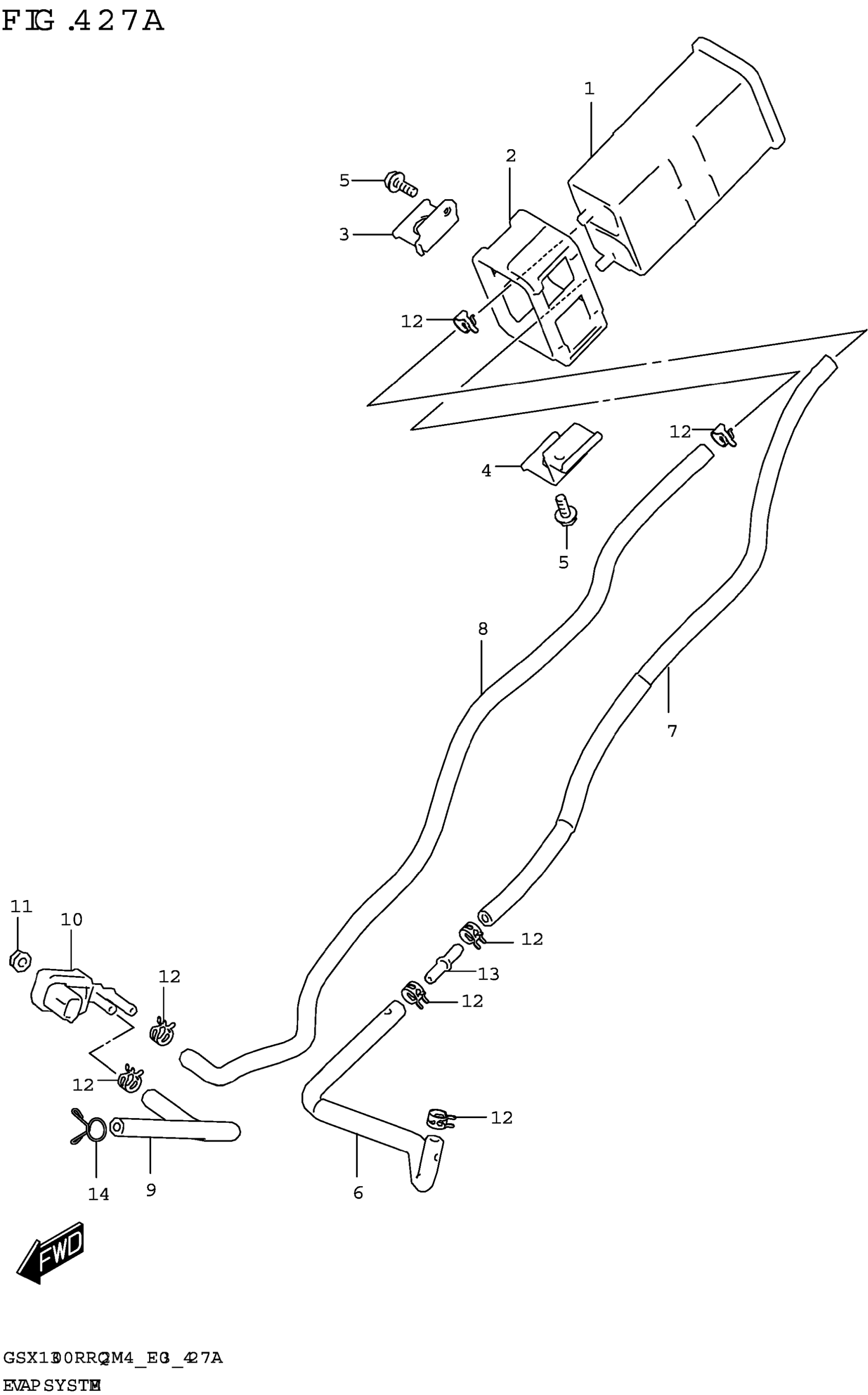

Suzuki GSX1300RRQ2M4 (2024) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

CANISTER ASSY, CHARCOAL

18560-31J00

$126.22

2

CUSHION, CANISTER

18571-31J00

Unavailable

3

BRACKET,CANISTER NO.1

18571-10L00

$6.05

4

BRACKET,CANISTER NO.2

18572-10L00

$6.42

5

BOLT

01550-0616A

$1.97

6

HOSE,SURGE NO.1

18561-10L00

$16.78

7

HOSE,SURGE NO.2

18562-10L00

$39.52

8

HOSE,PURGE NO.1

18563-10L00

$37.78

9

HOSE,PURGE NO.2

18564-10L00

$16.88

10

VALVE,CANISTER PURGE

18114-74P00

$124.80

11

NUT (6X12)

08316-1006A

$2.19

12

CLIP (ID:11,H:8)

09401-11413

$2.24

13

JOINT

09367-06009

Unavailable

14

CLIP

09401-10201-XC0

$2.20
