Description

Price

1

CALIPER ASSY,REAR

69100-15H31-999

$496.12

2

.PISTON SET

69100-44890

$74.95

3

..SEAL SET,PISTON

69102-05880

$17.83

4

.BOOT,AXLE

59112-44B00

$8.15

5

.SPRING,PAD

69115-44G00

$19.85

6

.PIN,PAD

59141-40F00

$35.26

7

.PIN,BOLT

69105-44G00

$13.26

8

.RETAINER

69116-44G00

$10.01

9

.BLEEDER

59121-18410

$7.99

10

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.73

11

.BRACKET

69150-15H31

$184.48

12

.BOLT

69182-44G00

$11.40

13

.SLEEVE

69185-44G00

$24.37

14

.BOOT,SLEEVE

69186-44G00

$12.45

15

PAD & SHIM SET

69100-15850

$86.03

16

.INSULATOR

69132-44G10

$16.74

17

.SHIM

69133-44G00

$11.18

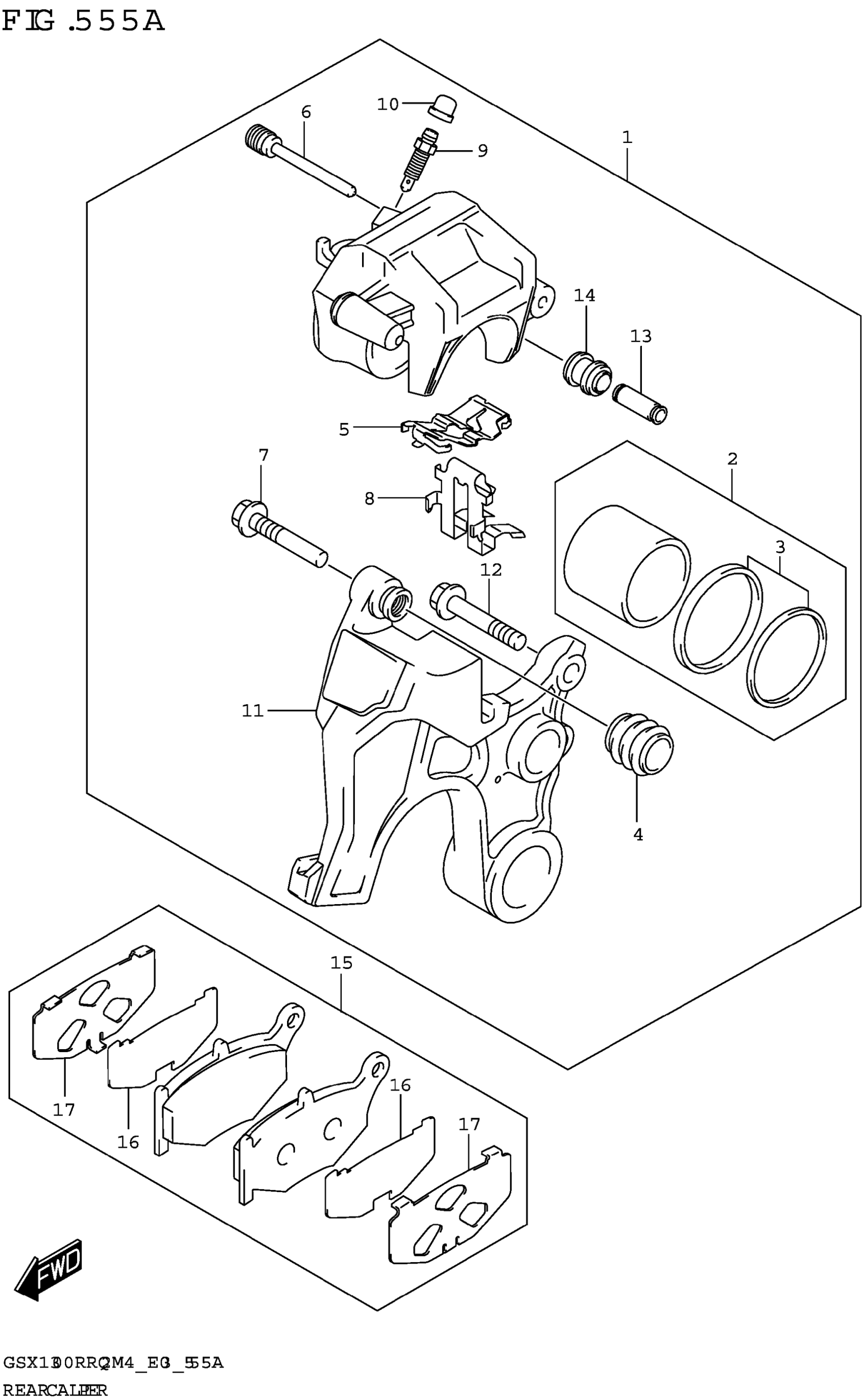

Suzuki GSX1300RRQ2M4 (2024) REAR CALIPER Diagram
