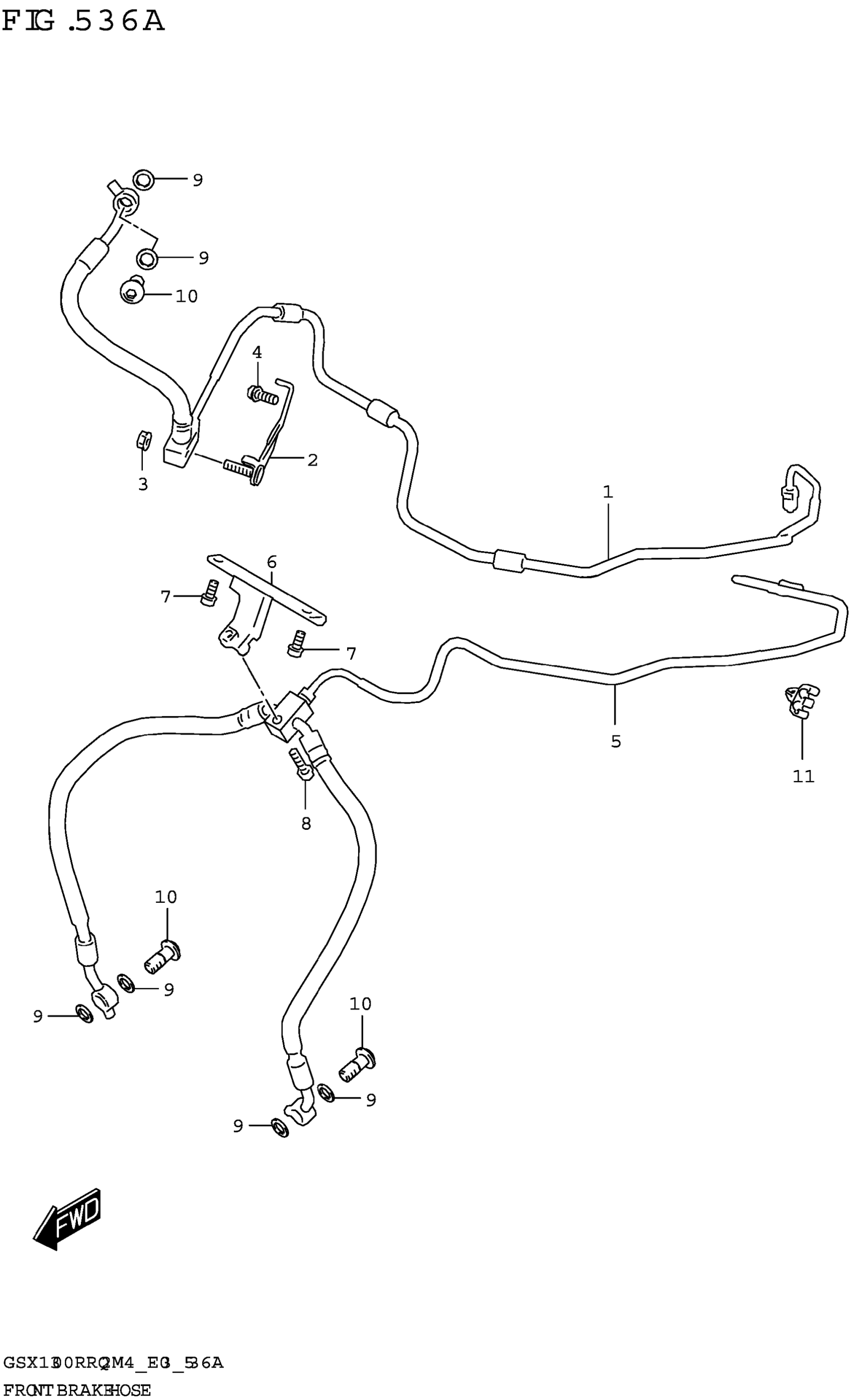

Suzuki GSX1300RRQ2M4 (2024) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY,FR BK MASTER TO UNI

59200-10L00

$115.72

2

BRACKET,HOSE CLAMP NO.1

59260-10L00

$13.05

3

NUT

08316-1006B

$2.50

4

BOLT

01547-0612B

$1.22

5

HOSE ASSY,UNIT TO FR BK CLPR

59400-10L00

$139.56

6

BRACKET,HOSE CLAMP NO.2

59270-10L00

$21.27

7

BOLT

01547-0625A

$2.01

8

BOLT

01547-0625A

$2.01

9

WASHER (10X15X1.5)

09161-10009

$1.83

10

UNION (10X1.25X22)

09360-10053

$9.70

11

CLAMP

09403-07344

$2.72
