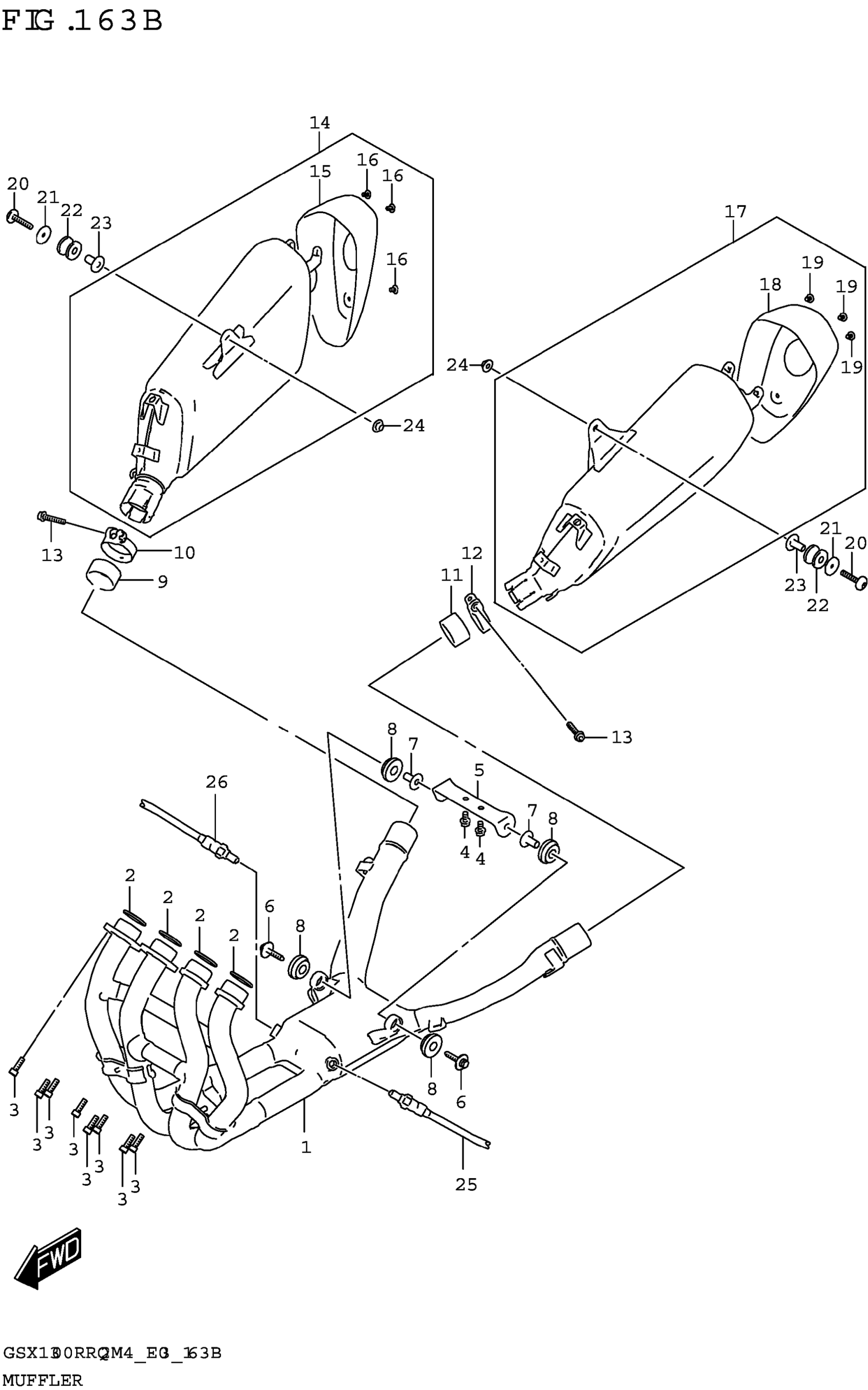

Suzuki GSX1300RRQ2M4 (2024) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-10L10

$2,232.47

2

.GASKET,EXHAUST PIPE

14181-04K00

$8.29

3

BOLT

07130-0825A

$3.04

4

BOLT (8X16)

01550-0816A

$2.32

5

BRACKET,EXH SPRT

14770-10L00

$37.17

6

BOLT (8X45)

09118-08152-A05

$5.24

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION

09320-12097

$10.40

9

CONNECTOR,MUFFLER

14771-24F01

$31.05

10

CLAMP,MUFFLER CONNECTOR

14459-47H00

$24.37

11

CONNECTOR,JT

14771-42F40

$25.95

12

CLAMP,MUFFLER CONNECTOR

14459-42F10

$22.52

13

BOLT (8X40)

09106-08162

$4.77

14

MUFFLER,R

14305-10L11-H01

$1,512.10

15

.COVER,MUF RR

14791-10L00

$231.53

16

SCREW (6X10)

09139-06122

$3.04

17

MUFFLER,L

14306-10L11-H01

$1,512.10

18

.COVER,MUF RR

14791-10L00

$231.53

19

SCREW (6X10)

09139-06122

$3.04

20

BOLT (8X45)

09106-08195

$6.17

21

WASHER (8.5X33X1.6)

09160-08162

$1.87

22

CUSHION

09320-12049

$10.68

23

SPACER (8.6X12X24.2)

09180-08152

$5.83

24

NUT

08361-2508B

$2.47

25

SENSOR,OXYGEN

18213-04K00

$315.67

26

SENSOR,OXYGEN

18213-18K00

$315.67
