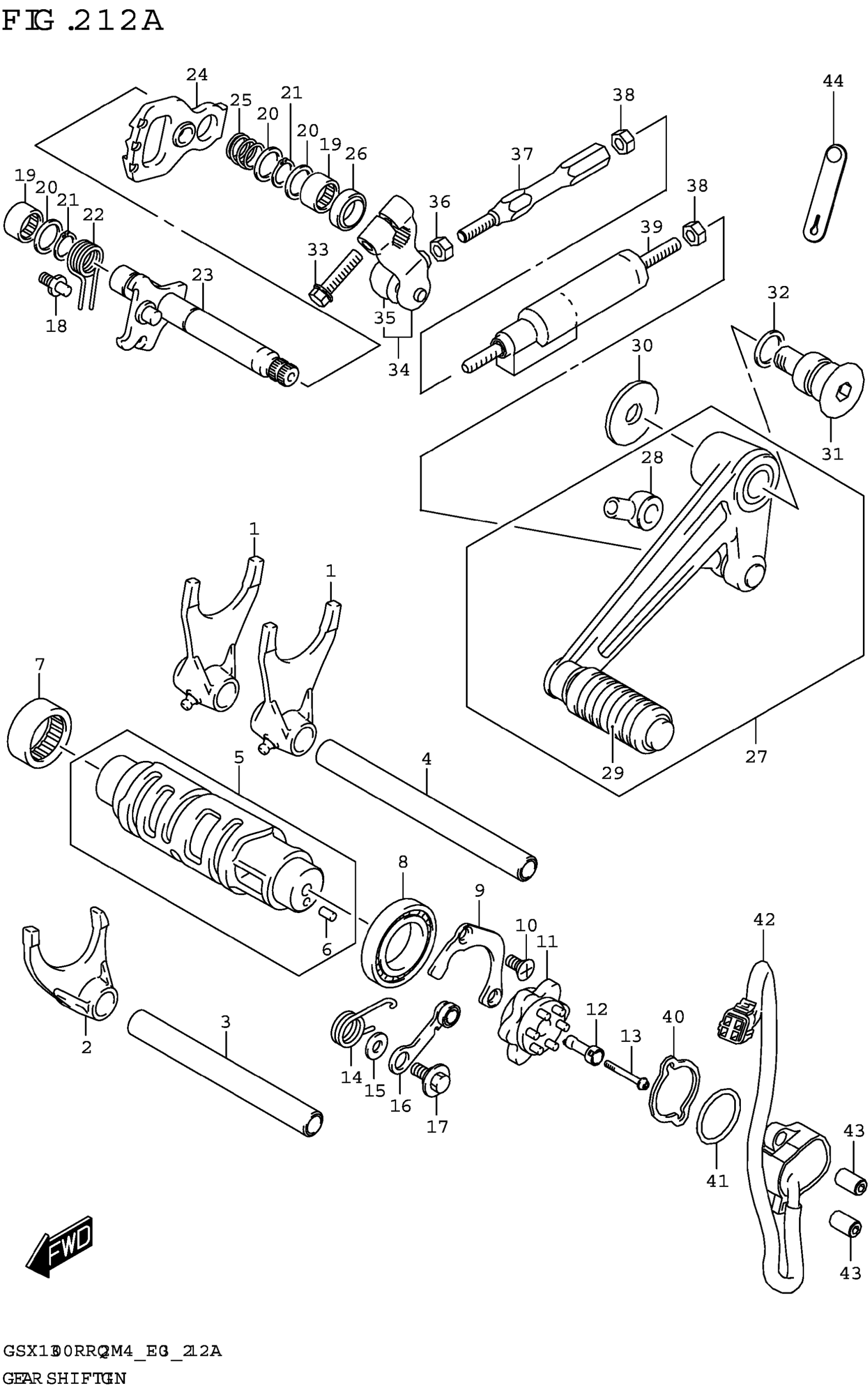

Suzuki GSX1300RRQ2M4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-24F20

$121.61

2

FORK,GEAR SHIFT NO.3

25231-24F20

$122.82

3

SHAFT,SHIFT FORK NO.2 (L:132) | L:132

25411-24F00

$32.85

4

SHAFT,GEAR SHIFT FORK (L:152)

25411-38B01

$32.65

5

CAM,GEAR SHIFT

25310-10L00

$197.43

6

PIN (4X13.8)

04221-04089

$1.10

7

BEARING (25X32X12)

09263-25018

$19.30

8

BEARING (25X47X8)

09262-25006

$23.05

9

RETAINER,SHIFT CAM BEARING

24741-24F10

$11.63

10

SCREW (6X12)

09126-06011

$2.01

11

PLATE,GEAR SHIFT CAM

25381-10L00

$51.42

12

STOPPER,SHIFT CAM DRIVE PLATE

25312-10L00

$126.58

13

BOLT,GEAR SHIFT CAM PLATE

25314-10L00

$3.98

14

SPRING,SHIFT CAM STOPPER

25355-06J00

$7.83

15

WASHER

08211-06141

$1.61

16

STOPPER,SHIFT CAM

25350-24F00

$36.88

17

BOLT (6X14.3)

09111-06041

$2.63

18

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

19

BEARING (14X20X12)

09263-14027

$12.21

20

SHIM (14X24X1)

09181-14195

$3.30

21

CIRCLIP

08331-3114A

$1.89

22

SPRING,GEAR SHIFT SHAFT RETUR

25518-06L00

$5.42

23

SHAFT,GEAR SHIFT

25510-10L00

$69.96

24

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

25

SPRING

09440-17009

$1.73

26

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

27

LEVER ASSY,GEAR SHIFT

25600-10L00

$127.92

28

.COVER, DUST

25526-47001

$4.98

29

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

30

WASHER (10X30X2.5)

09160-10144

$5.75

31

SHAFT,GEAR SHIFT LEVER

25617-17K00

Unavailable

32

WASHER,GEAR SHIFT LEVER LH

25619-17K00

$5.13

33

BOLT

01547-0625A

$2.01

34

ARM,GEAR SHIFT LINK

25520-10L00

$76.85

35

.COVER, DUST

25526-47001

$4.98

36

NUT

09140-06025

$1.84

37

ROD,GEAR SHIFT LINK

25525-10L00

$38.36

38

NUT

09140-06020

$1.67

39

SENSOR & ROD SET

25500-10810

$510.30

40

PLATE,GEAR POSITION SNSR

37732-10L00

$5.40

41

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

42

SENSOR ASSY,GEAR POSITION

37730-10L00

$110.36

43

NUT,GEAR SHIFT SW

37733-10L00

$40.58

44

CLAMP,HANDLE SWITCH (L:145)

36990-06L00

$8.32
