Description

Price

1

GEAR ASSY,PRI DRIVEN (NT:83)

21200-24810

$598.90

2

WASHER (25X54X2.4)

09160-25073

$15.75

3

BEARING (35X40X39.8)

09263-35013

$33.05

4

WASHER,CLUTCH SLEEVE HUB THR

21412-10L00

$14.00

5

.HUB,CLUTCH SLEEVE

21411-31J10

$163.66

6

.SEAT,WAVE WASHER

21471-24F00

$13.64

7

WASHER,CLUTCH PLATE WAVE

21472-06G00

$21.28

8

PLATE,CLUTCH DRIVE NO.1

21441-24F50

$19.86

9

.PLATE,CLUTCH DRIVEN NO.1 (T: | 0)

21451-24F00

$11.09

10

.PLATE,CLUTCH DRIVE NO.2 (T:3 | )

21442-31J00

$23.76

11

PLATE,CLUTCH DRIVEN NO.1

21451-24F20

$9.07

12

.PLATE,CLUTCH DRIVEN NO.2 (T: | 0)

21452-31J00

$16.65

13

.DISC,CLUTCH PRESSURE

21462-31J10

$111.10

14

.SEAT,CLUTCH SPRING

21415-31J00

$17.43

15

SPRING,CLUTCH

21413-10L00

$3.87

16

.PLATE,STOPPER

21414-31J00

$21.93

17

BOLT,CLUTCH SPRING

21482-10L00

$3.37

18

SHIM (25X38X1)

09181-25223

$3.00

19

WASHER (24.2X35X2.7)

09164-24008

$5.00

20

NUT

09159-24010

$12.27

21

PIECE,CLUTCH PUSH

23121-31E00

$23.54

22

BEARING (15X28X2)

09263-15003

$7.70

23

WASHER (15.5X28X1)

09160-15045

$3.62

24

ROD,CLUTCH PUSH,L

23111-10L00

$24.70

25

SEAL,OIL

09283-06013

$12.23

26

ROD,CLUTCH PUSH,R

23110-38B00

$22.18

27

CYLINDER,CLUTCH This part replaces 23160-02F12.

23160-02F21

$106.18

28

.CUP

23163-10F00

$7.11

29

.SPRING

23164-10F00

$5.80

30

.BLEEDER

59121-01A00

$8.35

31

.CAP,BLEEDER

59122-01A00

$4.15

32

BOLT (6X25)

07130-0625A

$2.74

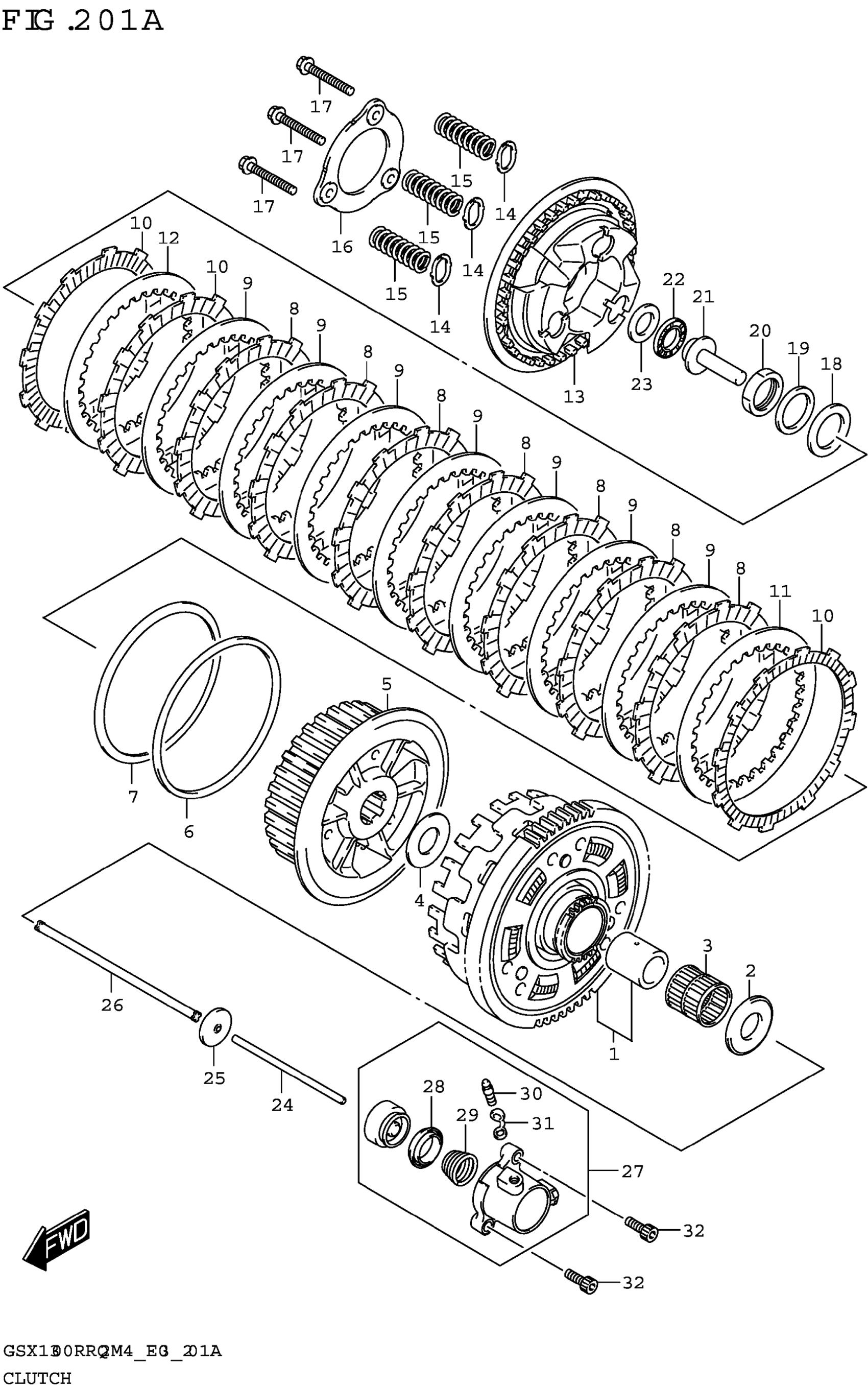

Suzuki GSX1300RRQ2M4 (2024) CLUTCH Diagram
