Description

Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

2

COVER,FUEL TANK CAP

44211-10L00

$57.23

3

CUSHION,FUEL TANK FR COVER

44277-10L00

$1.49

4-1

COVER,FUEL TANK FR (WHITE) | BODY COLOR:JWN

44290-10L00-YUH

$208.47

4-2

COVER,FUEL TANK FR (BLACK) | BODY COLOR:KGL

44290-10L00-YVB

$208.47

4-3

COVER,FUEL TANK FR (GRAY) | BODY COLOR:CJH

44290-10L00-YLF

$189.93

5-1

.EMBLEM,"SUZUKI" (GRAY) | BODY COLOR:JWN

68111-47C10-PGZ

$14.47

5-2

.EMBLEM (GRAY) | BODY COLOR:KGL

68111-47C10-YLF

$15.37

5-3

.EMBLEM (BLACK) | BODY COLOR:CJH

68111-47C10-019

$22.97

6

CUSHION,FUEL TANK COVER RR

44292-10L00

$1.49

7

RUBBER,FUEL TANK COVER

44295-10L00

$8.65

8

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

9

BRACKET,FUEL TANK FRONT

44521-10L00

$48.83

10

NUT (M6)

44523-47H00

$10.02

11

BRACKET,FUEL TANK FR

44530-10L00

$14.95

12

FASTENER (33X25X2.6)

44572-13G00

$11.07

13

FASTENER (20X15X2.6)

44572-44G00

$10.18

14

.CUSHION (20X20X1)

47123-17K00

$4.34

15

BOLT (5X12)

09106-05026

$3.54

16

BOLT (6X30)

09116-06171

$3.08

17

SCREW (5X13)

09139-05092

$2.25

18

SCREW (6X10)

09139-06181

$3.83

19

NUT (M5)

09148-05052

$3.37

20

CUSHION (10X22X13)

09320-10050

$3.35

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

22

CLIP (10.5X14.3)

09409-08326

$2.48

23

BOLT

01550-0625B

$2.42

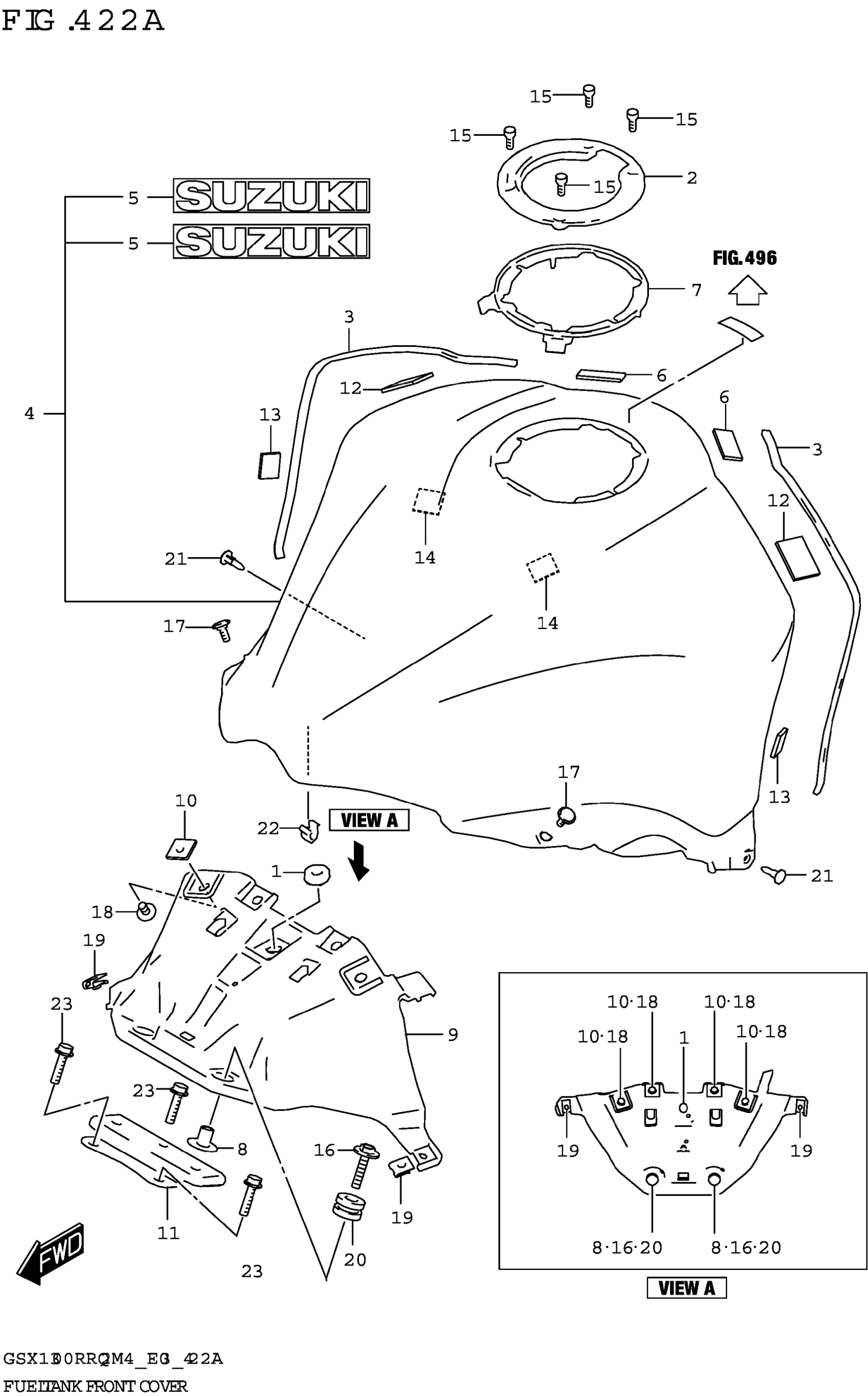

Suzuki GSX1300RRQ2M4 (2024) FUEL TANK FRONT COVER (E33) Diagram
