Partiron

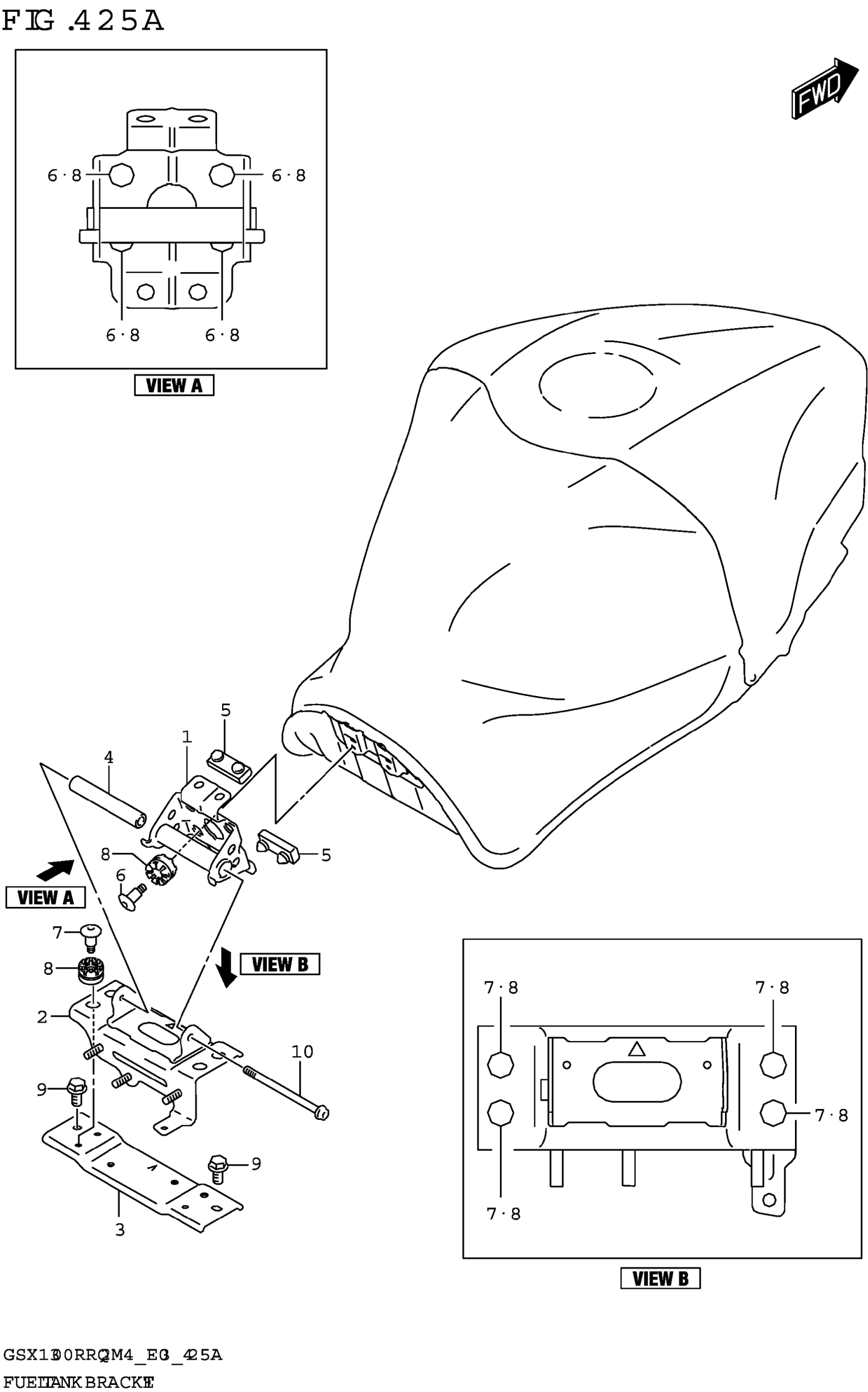

Suzuki GSX1300RRQ2M4 (2024) FUEL TANK BRACKET Diagram

#

Description
Price

1

BRACKET,FUEL TANK NO.1

44530-15H10

$22.92

2

BRACKET,FUEL TANK RR NO.2

44550-10L00

$28.05

3

BRACKET,FUEL TANK RR NO.3

44555-15H00

Unavailable

4

SPACER,FUEL TANK RR

44561-18G00

$16.96

5

CUSHION,REAR BRKT NO.2

45149-44G01

$6.50

6

SCREW (6X22)

09139-06191

$4.03

7

SCREW (6X22)

09139-06191

$4.03

8

CUSHION (8X18X14)

09320-08071

$3.25

9

BOLT (8X16)

01550-0816A

$2.32

10

BOLT

07120-0695A

$2.58
