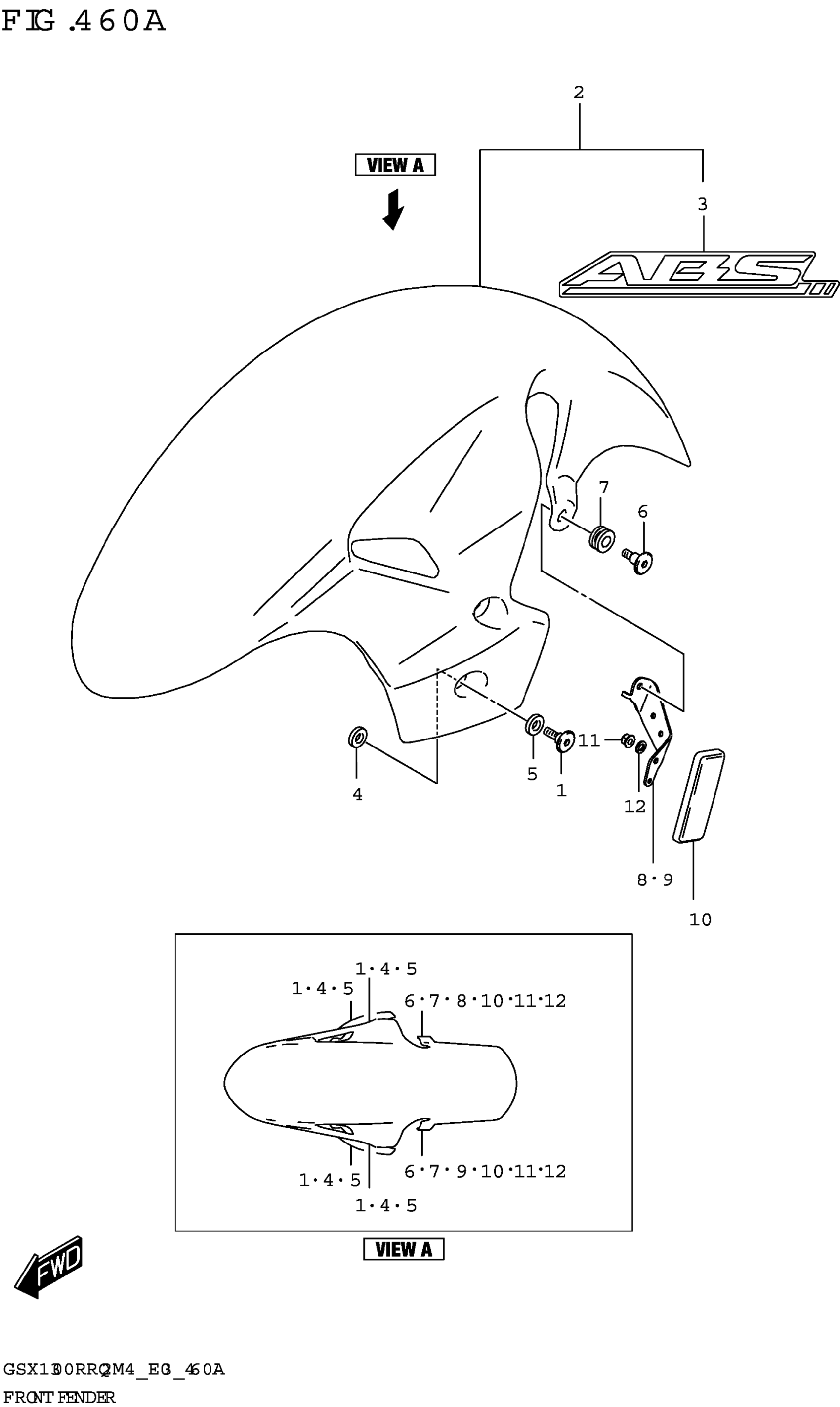

Suzuki GSX1300RRQ2M4 (2024) FRONT FENDER Diagram

BOLT,SEAT (6X20)

45241-17K00

$3.07

FENDER,FRONT (WHITE) | BODY COLOR:JWN

53110-10L00-YUH

$280.23

FENDER,FRONT (BLACK) | BODY COLOR:KGL

53110-10L00-YVB

$191.35

FENDER,FRONT (GRAY) | BODY COLOR:CJH

53110-10L00-YLF

$255.32

.EMBLEM,ABS (GRAY)

68151-44G01-1ZY

$9.03

.TAPE, FR FENDER

53121-28K00

$3.38

WASHER

53121-33E00

$3.14

SCREW (6X20)

09139-06236

$3.57

CUSHION (9X18X9.5)

09320-09016

$1.97

BRACKET,FRONT SIDE RR,R

47451-10L10

$12.52

BRACKET,FRONT SIDE RR,L

47455-10L10

$12.52

REFLEX REFLECTOR ASSY,FR SIDE

35950-43440

$13.22

NUT

08319-3105B

$3.25

WASHER,LOCK

08321-0105B

$3.08
