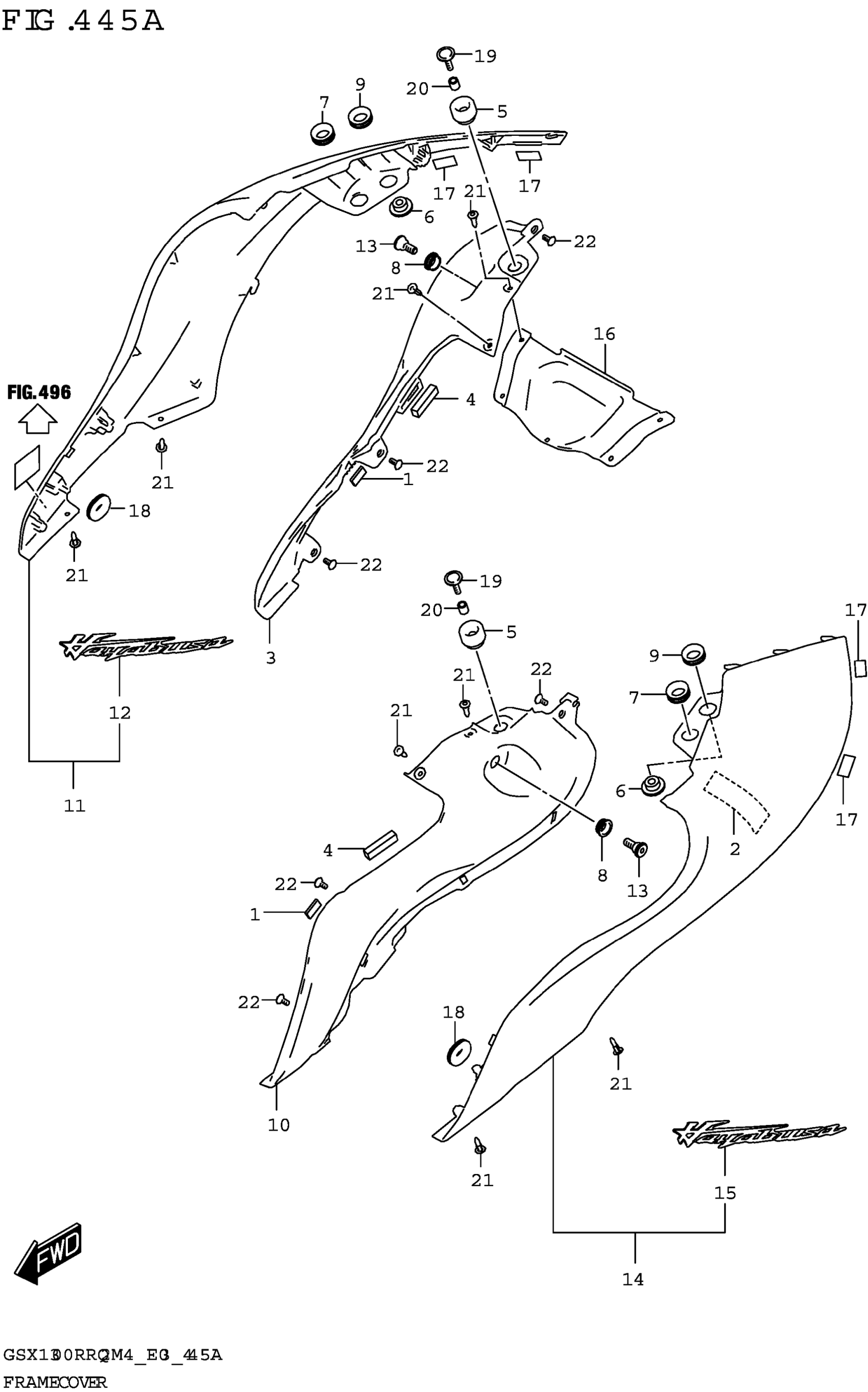

Suzuki GSX1300RRQ2M4 (2024) FRAME COVER Diagram

#

Description
Price

1

CUSHION (11X20X3)

33652-22D00

$1.88

2

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.41

3-1

COVER,FRAME,R (BLUE) | BODY COLOR:JWN

47111-10L00-YKY

$137.65

3-2

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47111-10L00-YKV

$143.15

3-3

COVER,FRAME,R (RED) | BODY COLOR:CJH

47111-10L00-YYG

$157.10

4

CUSHION,FRAME COVER NO.2

47112-10L00

$0.89

5

CUSHION,FRAME COVER UP

47115-16G01

$3.32

6

WASHER,FRAME COVER

47190-24F21

$9.79

7

CUSHION (16X26X8)

47191-24F00

$5.09

8

CUSHION,FRAME COVER CTR

47191-24F20

$6.91

9

CUSHION,FRAME COVER UP RR RR

47191-24F30

$7.12

10-1

COVER,FRAME,L (BLUE) | BODY COLOR:JWN

47211-10L00-YKY

$143.15

10-2

COVER,FRAME,L (BLACK) | BODY COLOR:KGL

47211-10L00-YKV

$143.15

10-3

COVER,FRAME,L (RED) | BODY COLOR:CJH

47211-10L00-YYG

$157.08

11-1

COVER,FRAME REAR,R (WHITE) | BODY COLOR:JWN

47320-10L00-YUH

$144.98

11-2

COVER,FRAME REAR,R (BLACK) | BODY COLOR:KGL

47320-10L00-YVB

$101.47

11-3

COVER,FRAME REAR,R (GRAY) | BODY COLOR:CJH

47320-10L00-YLF

$137.18

12-1

.EMBLEM,FRAME COVER,R (GRAY,W | ITE) BODY COLOR:JWN

68131-10L00-B7C

$14.52

12-2

.EMBLEM,FRAME COVER,R (GRAY,B | ACK) BODY COLOR:KGL

68131-10L00-AA3

$14.52

12-3

.EMBLEM,FRAME COVER,R (BLACK, | RAY) BODY COLOR:CJH

68131-10L00-HGU

$13.22

13

BOLT,FRAME COVER REAR

47323-10L00

$3.57

14-1

COVER,FRAME REAR,L (WHITE) | BODY COLOR:JWN

47330-10L00-YUH

$156.58

14-2

COVER,FRAME REAR,L (BLACK) | BODY COLOR:KGL

47330-10L00-YVB

$131.22

14-3

COVER,FRAME REA | BODY COLOR:CJH This part replaces 47330-10L00-YLF.

47330-10L01-YLF

$131.75

15-1

.EMBLEM,FRAME COVER,L (GRAY,W | ITE) BODY COLOR:JWN

68141-10L00-B7C

$7.61

15-2

.EMBLEM,FRAME COVER,L (GRAY,B | ACK) BODY COLOR:KGL

68141-10L00-AA3

$14.52

15-3

.EMBLEM,FRAME COVER,L (BLACK, | RAY) BODY COLOR:CJH

68141-10L00-HGU

$13.22

16

LID,FRAME COVER

47411-10L00

$24.38

17

TAPE (6X25X0.13)

94443-06G00

$3.11

18

CUSHION

94478-14J00

$5.66

19

SCREW

09136-06126

$3.42

20

SPACER (6.5X10X11)

09180-06288

$2.10

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

03541-0512A

$1.41
