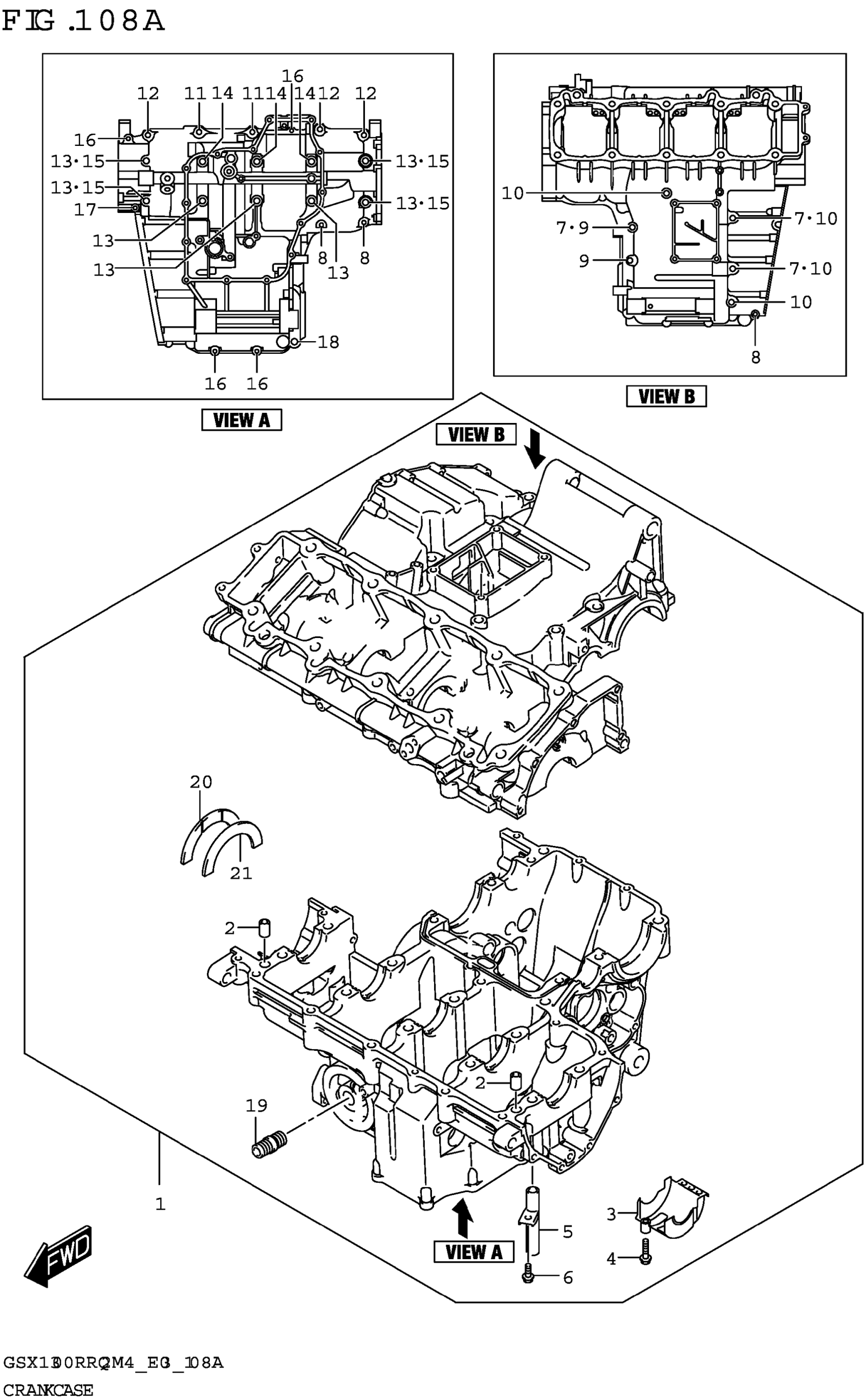

Suzuki GSX1300RRQ2M4 (2024) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-10810

$2,814.37

2

PIN,CRANKCASE

11319-33E50

$5.01

3

.SEPARATOR,OIL

11323-24F10

Unavailable

4

BOLT

01547-0625A

$2.01

5

.UNION,BREATHER

11328-24F00

$21.07

6

BOLT

01547-0612A

$2.01

7

GASKET (8.2X14X1)

09168-08016

$1.64

8

BOLT

01547-0650A

$2.51

9

.BOLT

01550-0865A

$3.21

10

.BOLT

01550-0880A

$4.62

11

.BOLT (8X60)

09103-08155

Unavailable

12

.BOLT (8X50)

09103-08355

$4.62

13

.BOLT (9X95)

09103-09008

$6.95

14

.BOLT (9X115)

09103-09010

$10.77

15

.GASKET (10.2X20X2.3)

09168-10031

$2.01

16

BOLT

01547-0640A

$2.31

17

BOLT

01547-0660A

$2.80

18

.BOLT

01550-1060A

$3.68

19

UNION,OIL STAND

16591-06B01

$6.45

20

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

21-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

21-2

.BEARING,CRANK THRUST,L (BLAC | )

12228-24F00-0B0

$10.18

21-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

21-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

21-5

.BEARING,CRANK THRUST,L (YELL | W)

12228-24F00-0E0

$14.98

21-6

.BEARING,CRANK THRUST,L (WHIT | )

12228-24F00-0F0

$14.98
