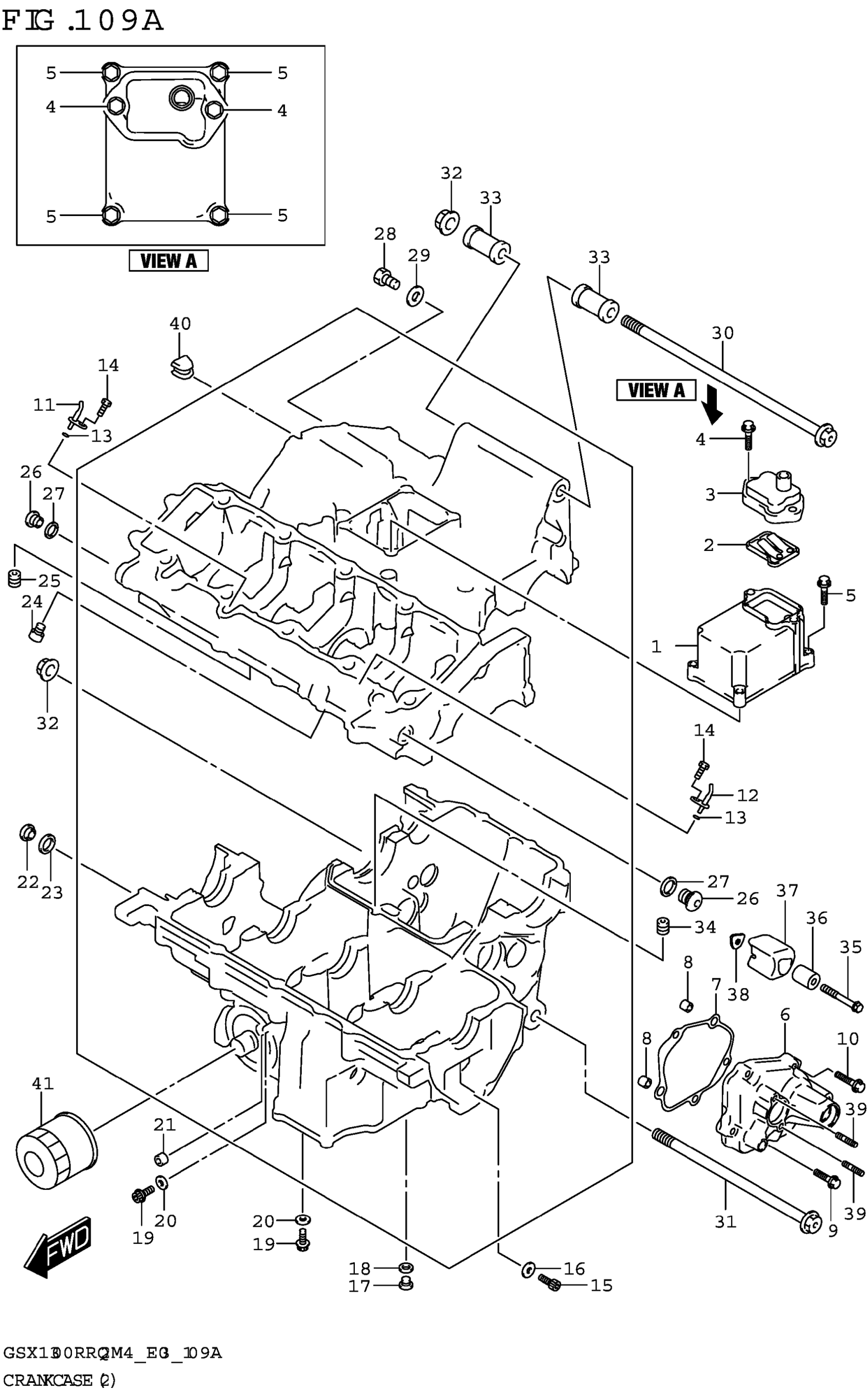

Find the part on the Crankcase diagram for your 2024 Suzuki GSX1300RRQ2M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki GSX1300RRQ2M4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,BREATHER

11331-15H00

1
Out of stock

2

VALVE ASSY,BREATHER REED

13150-01H01

1
Out of stock

3

COVER,BREATHER REED VALVE

11372-21H00

1
Out of stock

4

BOLT

01547-0620A

2
Out of stock

5

BOLT

01547-0630A

4
Out of stock

6

COVER,GEAR SHIFT

11383-10L00

1
Out of stock

7

.GASKET,GEAR SHIFT COVER

11485-24F00

1
Out of stock

8

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

9

BOLT

01547-0625A

3
Out of stock

10

BOLT

01547-0635A

2
Out of stock

11

JET,PISTON COOLING

11390-34E00

2
Out of stock

12

JET,PISTON COOLING

11390-34E10

2
Out of stock

13

O-RING (D:1.2,ID:4)

09280-04004

4
Out of stock

14

BOLT (6X12)

09106-06075

4
Out of stock

15

BOLT

07130-0816B

1
Out of stock

16

GASKET (8.2X14X1)

09168-08016

1
Out of stock

17

PLUG (10X10)

09248-10010

1
Out of stock

18

GASKET (10X14X3.6)

09168-10002

1
Out of stock

19

BOLT

07120-0612A

2
Out of stock

20

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

21

JET,OIL PAN GALLERY

11532-46E00

1
Out of stock

22

PLUG (16X8)

09248-16012

1
Out of stock

23

GASKET (16X22X2)

09168-16002

1
Out of stock

24

BOLT (6X10)

09103-06188

4
Out of stock

25

JET,AIR (#100)

09493-20012

1
Out of stock

26

PLUG (14X12)

09248-14011

1
Out of stock

27

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

28

BOLT

07120-0612A

1
Out of stock

29

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

30

BOLT (12X320)

09103-12120

1
Out of stock

31

BOLT (12X243)

09103-12119

1
Out of stock

32

NUT

09159-12056

2
Out of stock

33

SPACER,ENG MTG (L47)

11611-24F00

2
Out of stock

34

JET,T/M OIL

09493-40004

1
Out of stock

35

BOLT (L:45)

09103-06532

1
Out of stock

36

SPACER

09180-06381

1
Out of stock

37

PROTECTER,GEAR SHIFT COVER

11364-10L00

1
Out of stock

38

PLATE,GEAR SHIFT COV PROTECTE

11365-10L00

1
Out of stock

39

BOLT,STUD

09108-05007

2
Out of stock

40

GROMMET,CRANKCASE UPPER

11312-10L00

1
Out of stock

41

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

1
Out of stock
