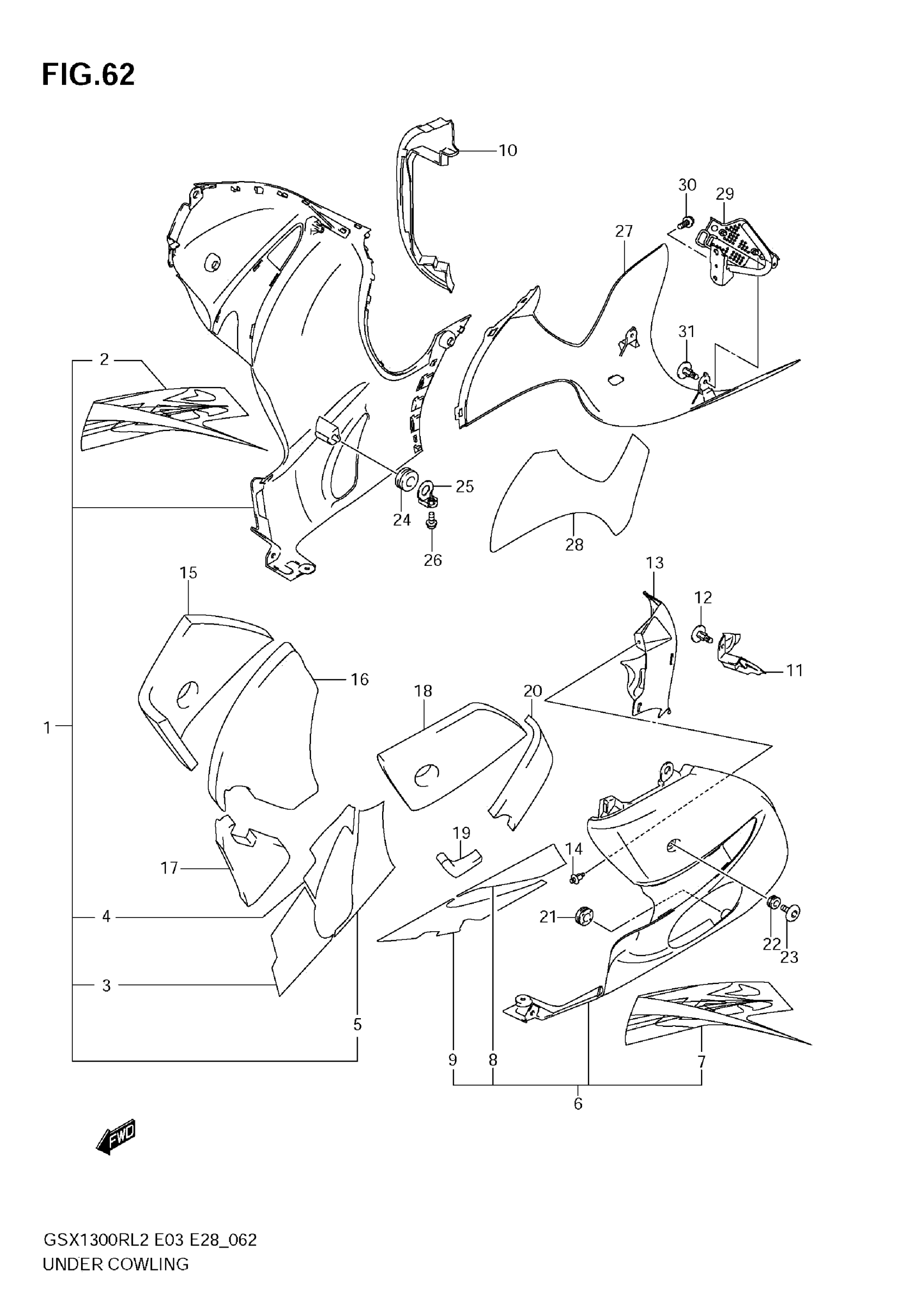

Find the part on the Under Cowling diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, UNDER RH (BLACK)

94470-15H30-YVB

1
Out of stock

1

COWLING, UNDER RH (RED)

94470-15H30-YHL

1
Out of stock

1

COWLING, UNDER RH (WHITE)

94470-15H30-YWW

1
Out of stock

2

TAPE, UNDER COWLING RH (BLACK/GRAY) | FOR YVB

68185-15H30-AAR

1
Out of stock

2

TAPE, UNDER COWLING RH | FOR YHL

68185-15H30-AAQ

1
Out of stock

2

TAPE, UNDER COWLING RH (BLACK) | FOR YWW

68185-15H30-AAS

1
Out of stock

3

SHIELD, HEAT RH NO.1

94472-15H00

1
Out of stock

4

SHIELD, HEAT RH NO.3

94472-15H20

1
Out of stock

5

SHIELD, HEAT RH NO.2

94472-15H10

1
Out of stock

6

COWLING, UNDER LH (BLACK)

94480-15H30-YVB

1
Out of stock

6

COWLING, UNDER LH (RED)

94480-15H30-YHL

1
Out of stock

6

COWLING, UNDER LH (WHITE)

94480-15H30-YWW

1
Out of stock

7

TAPE, UNDER COWLING LH (BLACK/GRAY) | FOR YVB

68195-15H30-AAR

1
Out of stock

7

TAPE, UNDER COWLING LH | FOR YHL

68195-15H30-AAQ

1
Out of stock

7

TAPE, UNDER COWLING LH (BLACK) | FOR YWW

68195-15H30-AAS

1
Out of stock

8

SHIELD, HEAT LH NO.1

94482-15H00

1
Out of stock

9

SHIELD, HEAT LH NO.2

94482-15H10

1
Out of stock

10

PROTECTOR, RH

94475-15H00

1
Out of stock

11

PROTECTOR, LH

94485-15H00

1
Out of stock

12

CLIP, LH

94479-35F00

1
Out of stock

13

COVER, UNDER LH

94489-15H00

1
Out of stock

14

CLIP (BLACK) | LH

09409-06314-5PK

1
Out of stock

15

CUSHION, UNDER COWL RH NO.1

94478-15H00

1
Out of stock

16

CUSHION, UNDER COWL RH NO.2

94478-15H10

1
Out of stock

17

CUSHION, UNDER COWL RH NO.3

94478-15H20

1
Out of stock

18

CUSHION, UNDER COWL LH NO.1

94488-15H00

1
Out of stock

19

CUSHION, UNDER COWL LH NO.2

94488-15H10

1
Out of stock

20

CUSHION, UNDER COWL LH NO.3 This part replaces 94488-15H20.

94488-15H21

1
Out of stock

21

CUSHION, LH

94479-15H00

1
Out of stock

22

CUSHION

09320-09016

3
Out of stock

23

SCREW (6X20)

09139-06126

4
Out of stock

24

CUSHION

09320-08028

2
Out of stock

25

PLATE, UNDER COWL

94560-15H00

2
Out of stock

26

BOLT

01550-0612B

2
Out of stock

27

COWLING, UNDER REAR (BLACK)

94661-15H00-YVB

1
Out of stock

27

COWLING, UNDER REAR (RED)

94661-15H00-YHL

1
Out of stock

27

COWLING, UNDER REAR (WHITE)

94661-15H00-YWW

1
Out of stock

28

SHIELD, HEAT

94667-15H00

1
Out of stock

29

BRACKET, REAR COWLING This part replaces 94540-15H00.

94540-15H01

1
Out of stock

30

BOLT

01550-0816B

2
Out of stock

31

CLIP

94479-35F00

2
Out of stock
