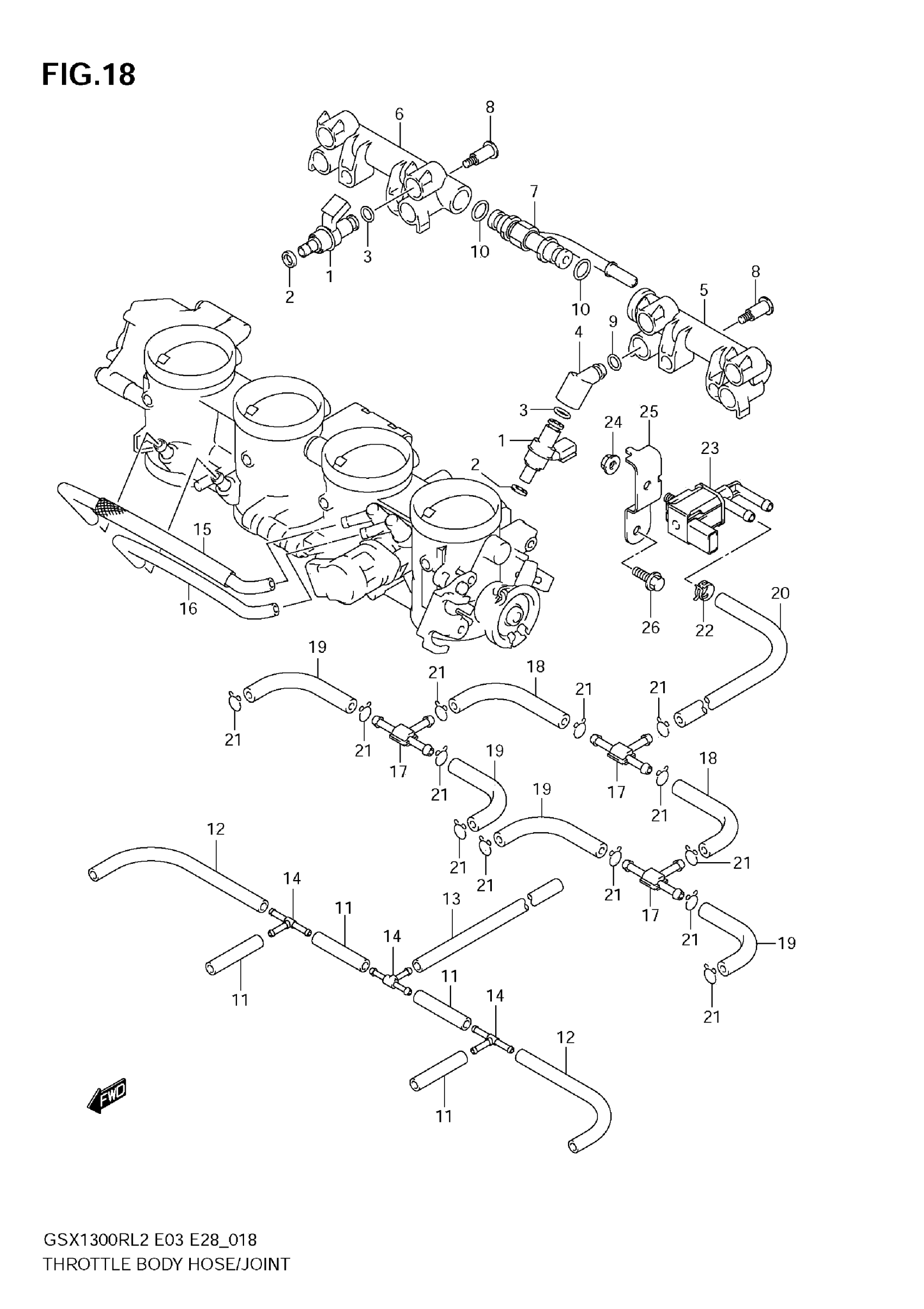

Suzuki GSX1300RL2 (2012) THROTTLE BODY HOSE/JOINT (GSX1300R L2 E33) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-21H00

$309.40

2

.RING,SEAL

15722-21H00

$11.25

3

.O-RING

15721-21H00

$9.09

4

PIPE, FUEL

13473-21H00

$18.08

5

PIPE, FUEL

13474-21H00

$103.03

6

PIPE, FUEL

13474-21H10

Unavailable

7

JOINT

13473-15H00

Unavailable

8

SCREW

13601-35F00

$7.50

9

.O-RING

15721-24F00

$9.09

10

O-RING

15721-10G00

$9.09

11

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

12

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

13

HOSE, RUBBER (L:170)

13697-35F00

Unavailable

14

T JOINT

13471-24F30

$16.48

15

TUBE This part replaces 13680-21H10.

13680-21H11

$17.53

16

TUBE This part replaces 13698-21H00.

13698-21H01

$9.18

17

T JOINT

13685-36E50

Unavailable

18

HOSE

13683-21H20

Unavailable

19

HOSE

13683-21H10

Unavailable

20

HOSE

13683-15H00

Unavailable

21

CLIP

13693-24F00

$3.22

22

CLIP

09401-10411

$2.80

23

VALVE,CANISTER PURGE

18117-52G10

$151.17

24

NUT

08316-1006B

$2.50

25

BRACKET

13165-15H00

Unavailable

26

BOLT

01550-0610A

$1.97
