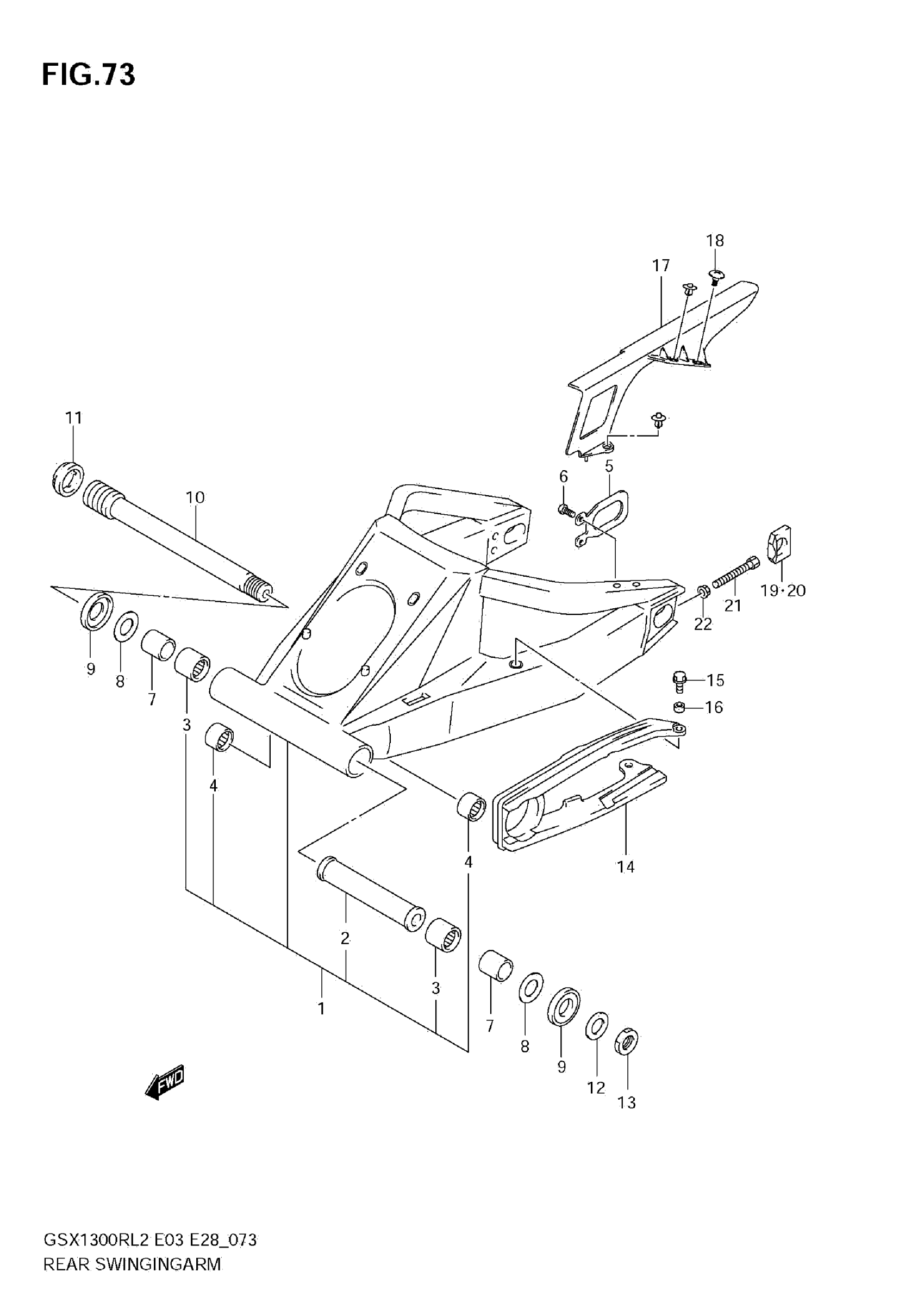

Find the part on the Rear Swingingarm diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$3,197.73

In stock

2

SPACER, CENTER

61281-33E20

1

$63.75

In stock

3

BEARING (30X40X25)

09263-30040

2

$49.17

In stock

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

2
Out of stock

5

PLATE, BRACKET

61124-33E00

1
Out of stock

6

SCREW (6X16)

09125-06073

1

$2.23

In stock

8

WASHER

08211-25481

2

$5.54

In stock

9

2

$9.04

In stock

10

1

$204.23

In stock

11

NUT, PIVOT SHAFT

61214-40C31

1

$64.22

In stock

12

WASHER (25.2X42X3.2)

09160-25070

1
Out of stock

13

NUT

09159-25003

1

$30.86

In stock

14

1

$72.12

In stock

15

BOLT (6X20)

09116-06152

2

$2.56

In stock

16

SPACER (6.5X9X5)

09180-06306

2
Out of stock

17

CASE,CHAIN

61311-15H00

1

$74.48

In stock

18

SCREW (6X16)

09139-06168

3

$2.85

In stock

19

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

1
Out of stock

20

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

1
Out of stock

21

BOLT (8X50)

09100-08287

2
Out of stock

22

NUT

08316-1008A

2
Out of stock
