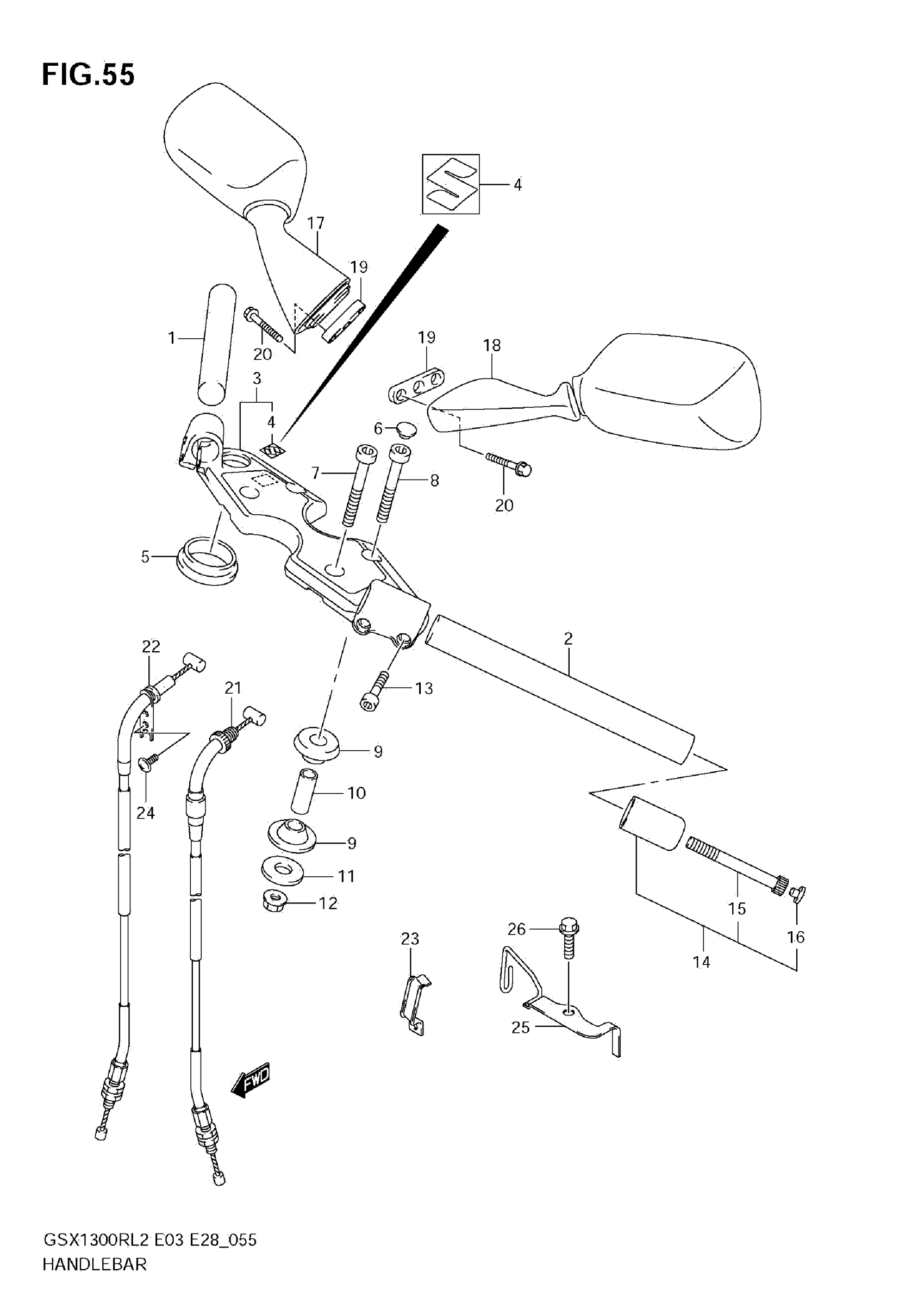

Suzuki GSX1300RL2 (2012) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-15H00

$96.75

2

HANDLEBAR, LH

56151-15H00

$97.22

3

HOLDER, HANDLE

56210-15H00

$690.45

4

EMBLEM

68281-35F00

$15.48

5

CUSHION,HANDLE HOLDER

56247-24F00

$12.83

6

CAP, BOLT

56246-24F00

$7.07

7

BOLT

07130-1065B

$6.22

8

BOLT

07130-1060A

$5.68

9

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

$37.40

10

SPACER

56243-01D00

$10.62

11

WASHER (10.5X30X3.2)

09160-10094

$4.03

12

NUT

08319-3110A

$2.73

13

BOLT (6X25)

09106-06090

$2.90

14

BALANCER SET, HANDLEBAR

56200-15830

$54.34

15

BOLT

07130-0660B

$5.10

16

CAP (OD:10)

09250-05009

$2.10

17

MIRROR ASSY, REAR VIEW RH This part replaces 56500-24F00.

56500-24F20

$289.20

18

MIRROR ASSY, REAR VIEW LH This part replaces 56600-24F00.

56600-24F20

$269.32

19

CUSHION

94576-24F00

$6.14

20

BOLT

01547-0630B

$2.73

21

CABLE ASSY,THRO This part replaces 58300-15H00.

58300-15H21

$61.98

22

CABLE ASSY,THRO This part replaces 58300-15H10.

58300-15H31

$60.08

23

GUIDE,CABLE

58623-24F10

$8.87

24

SCREW (5X10)

09125-05042

$1.98

25

GUIDE, CABLE

58620-15H00

$24.37

26

BOLT

01547-0612B

$1.22
