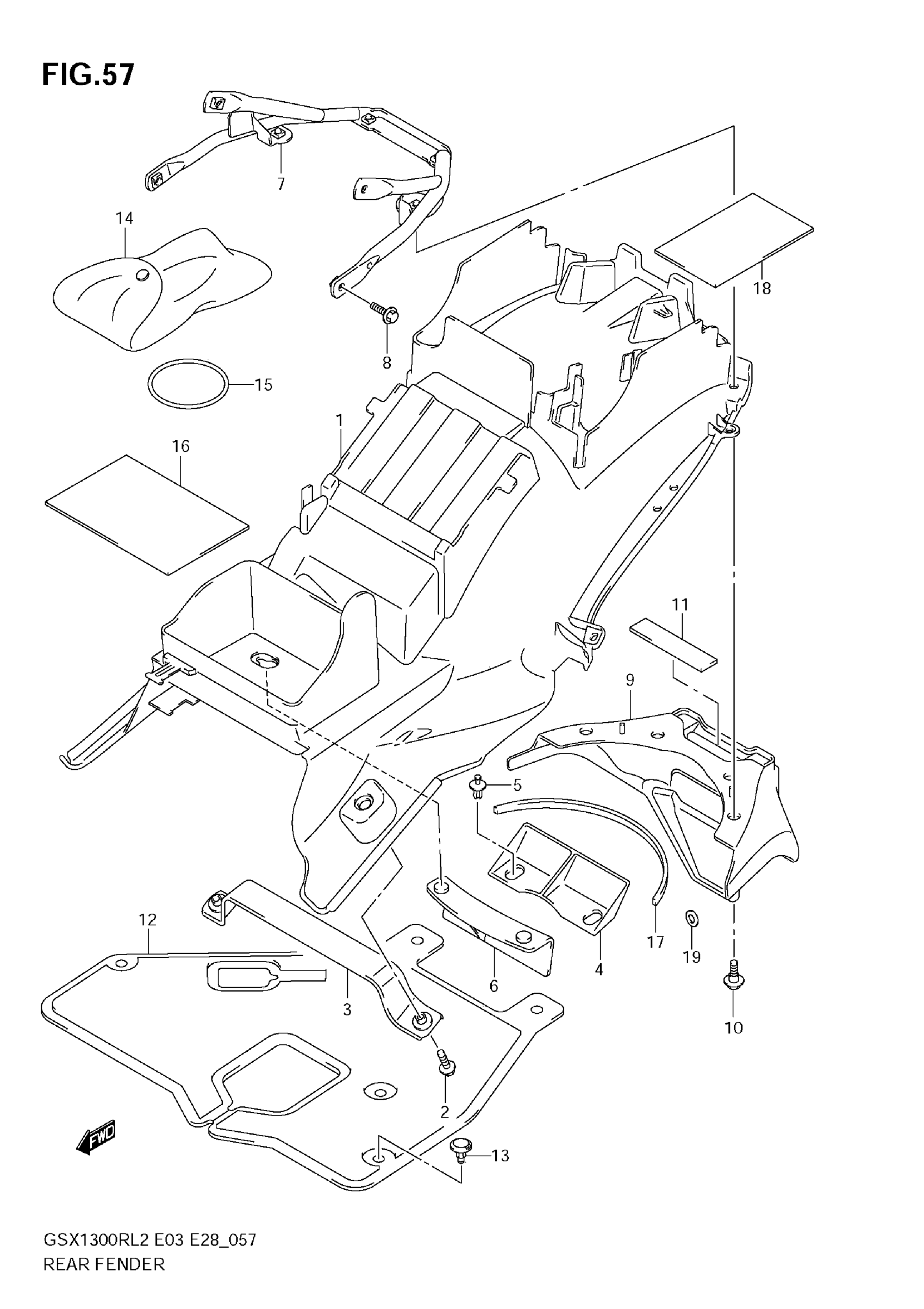

Suzuki GSX1300RL2 (2012) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT (BLACK)

63111-15H00-291

$195.53

2

BOLT

01550-0616A

$1.97

3

BRACKET, FRONT

63130-15H00

Unavailable

4

MUDGUARD, REAR

63411-24F00

$13.53

5

CLIP

09409-07333

$2.31

6

MUDGUARD, REAR UPPER

63421-24F00

$15.55

7

BRACKET, REAR FENDER

63120-15H00

$232.17

8

BOLT

01550-0616A

$1.97

9

FENDER, REAR REAR (BLACK)

63112-15H00-291

$74.78

10

BOLT (6X16)

09111-06099

$3.49

11

CUSHION

33652-49000

$3.58

12

SHIELD, INNER

47851-15H00

$89.43

13

CLIP

94479-35F00

$5.62

14

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

15

O RING (D:3.5,ID:56.5)

09280-57003

Unavailable

16

CUSHION,REAR FENDER FRONT This part replaces 63113-15H00.

63113-15H01

$15.47

17

CUSHION,REAR FENDER REAR NO.2

63192-16GA0

$4.82

18

CUSHION, TOOL BAG

63114-15H00

Unavailable

19

WASHER

08322-0106B

$2.26
