2012 Suzuki GSX1300RL2 Rear Caliper Diagram

← All diagrams

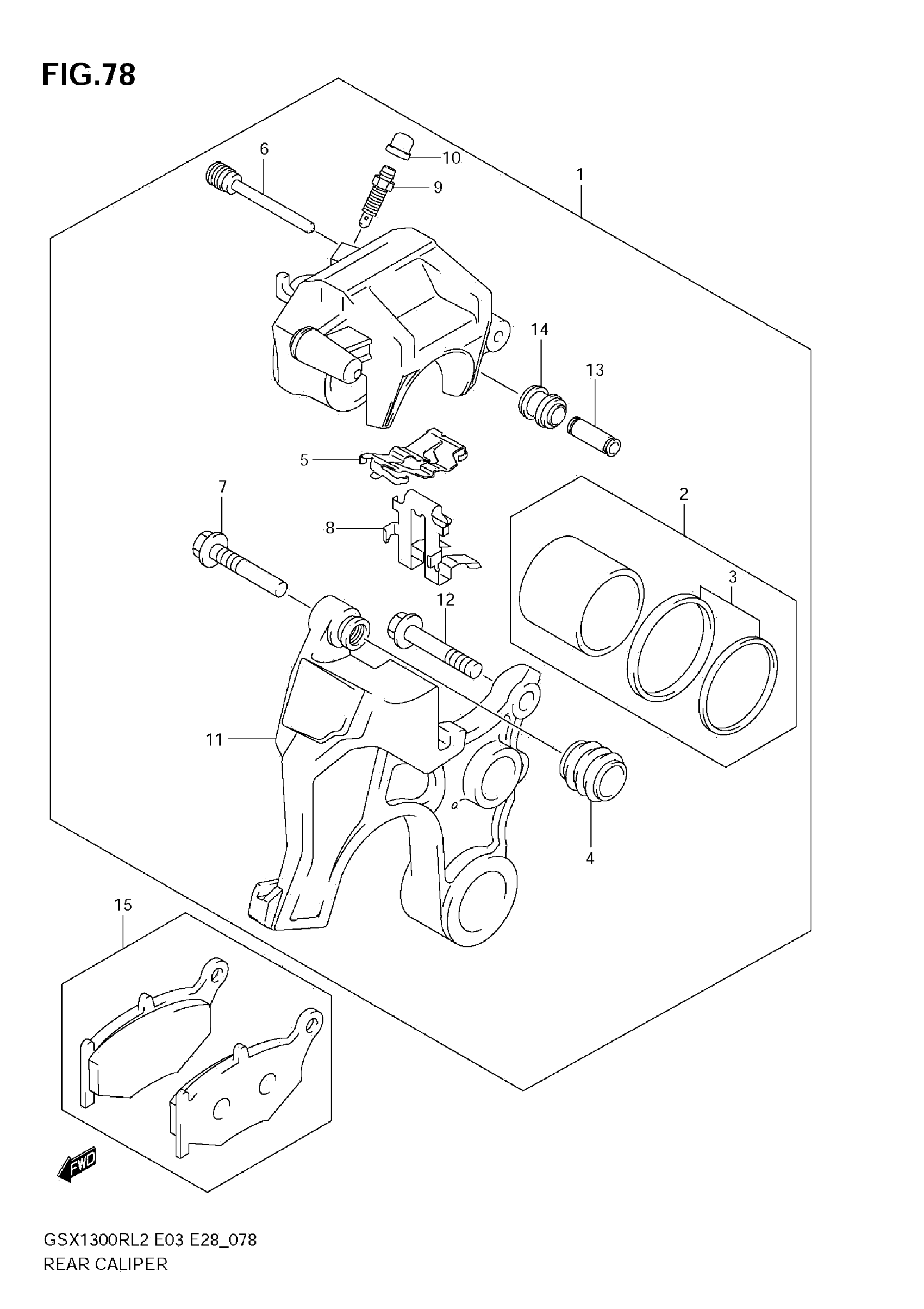

Find the part on the Rear Caliper diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-15H00-999

1
Out of stock

2

PISTON SET

69100-44890

1
Out of stock

3

SEAL SET, PISTON

69102-05880

1
Out of stock

4

BOOT, AXLE

59112-44B00

1
Out of stock

5

SPRING, PAD

69115-44G00

1
Out of stock

6

PIN, PAD

59141-40F00

1
Out of stock

7

PIN, BOLT

69105-44G00

1
Out of stock

8

RETAINER

69116-44G00

1
Out of stock

9

BLEEDER

59121-18410

1
Out of stock

10

CAP, BLEEDER PLUG

55156-66310

1
Out of stock

11

BRACKET

69150-15H00

1
Out of stock

12

BOLT

69182-44G00

1
Out of stock

13

SLEEVE

69185-44G00

1
Out of stock

14

BOOT, SLEEVE

69186-44G00

1
Out of stock

15

PAD SET

69100-15820

1
Out of stock
