2012 Suzuki GSX1300RL2 Front Brake Hose Diagram

← All diagrams

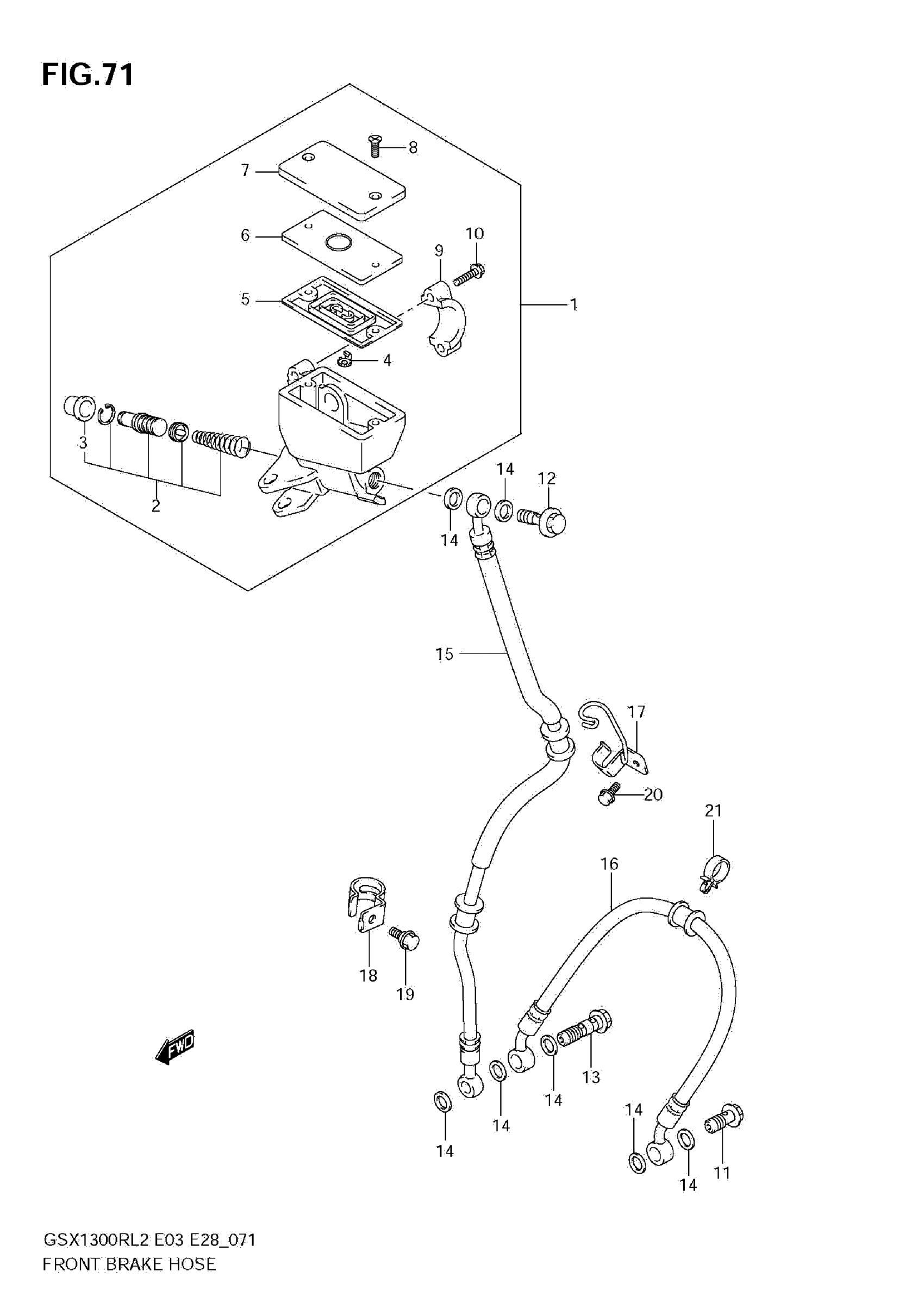

Find the part on the Front Brake Hose diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$346.28

In stock

2

PISTON/CUP SET

59600-24810

1

$54.45

In stock

3

BOOT

59666-44300

1
Out of stock

4

PROTECTOR

59664-48B00

1

$12.43

In stock

5

DIAPHRAGM

59667-49460

1
Out of stock

6

PLATE

59668-41C00

1
Out of stock

7

CAP

59669-10G00

1

$43.22

In stock

8

SCREW

69689-49300

2
Out of stock

9

.HOLDER

59671-36500

1
Out of stock

10

BOLT (6X22)

59675-02FA0

2
Out of stock

11

UNION

09360-10062

1
Out of stock

12

UNION | LH

09360-10062

1
Out of stock

13

UNION | RH

09360-10064

1
Out of stock

14

WASHER (10X15X1.5)

09161-10009

7
Out of stock

15

HOSE, FRONT BRAKE NO.1

59480-15H00

1
Out of stock

16

HOSE, FRONT BRAKE NO.2

59240-15H00

1
Out of stock

17

1

$20.22

In stock

18

CLAMP, BRAKE HOSE NO.3

59270-15H00

1
Out of stock

19

BOLT (6X12)

09111-06107

1
Out of stock

20

BOLT

01547-0612A

1
Out of stock

21

CLAMP

09403-16412

1
Out of stock
