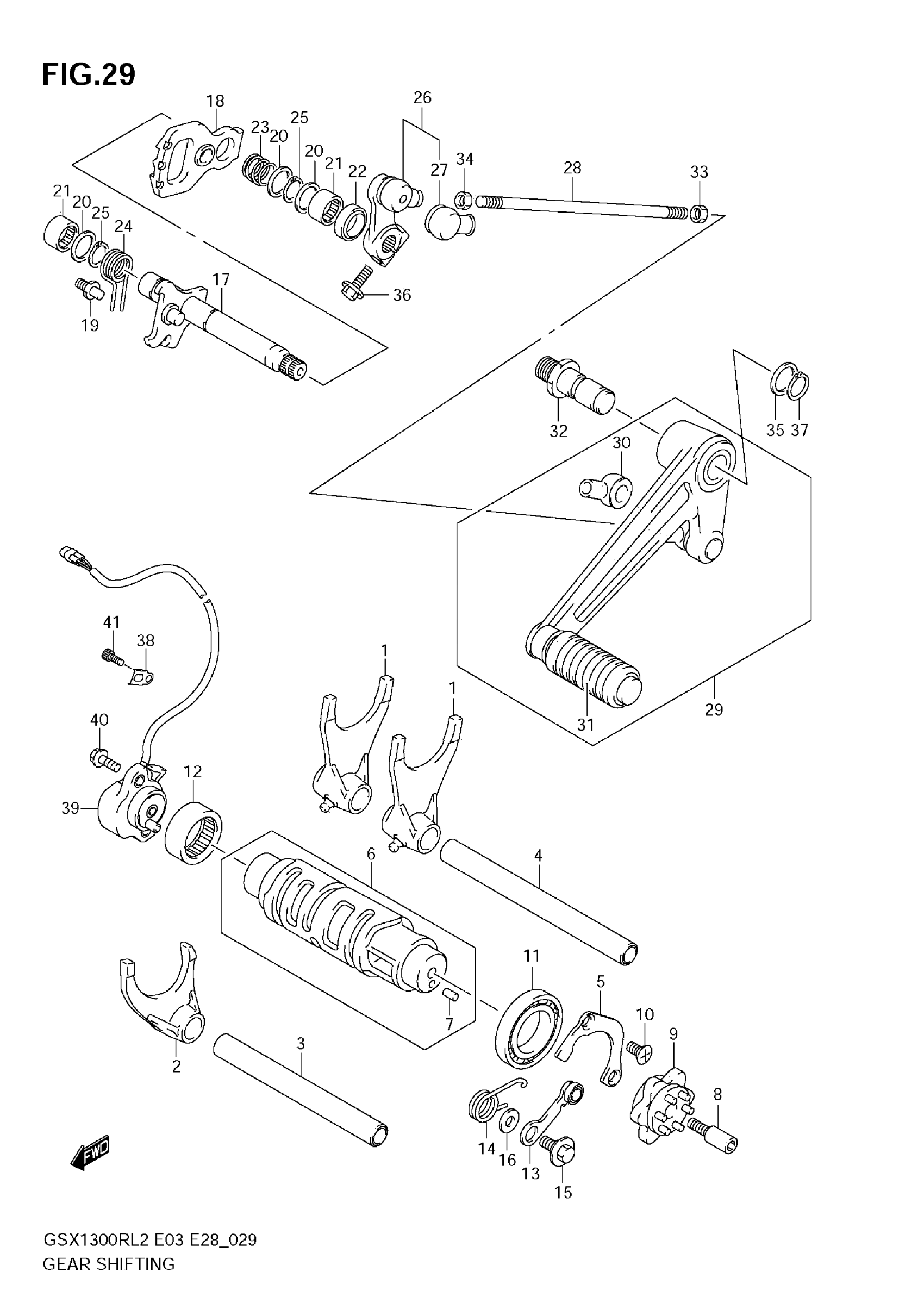

Suzuki GSX1300RL2 (2012) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-24F20

$132.86

2

FORK,GEAR SHIFT NO.3

25231-24F20

$134.17

3

SHAFT, GEAR SHIFT NO.2 | L:132

25411-24F00

$29.10

4

SHAFT, GEAR SHIFT NO.1 | L:152

25411-38B01

$28.93

5

RETAINER,SHIFT CAM BEARING

24741-24F10

$10.32

6

CAM, GEAR SHIFT

25310-24F00

$244.02

7

PIN (4X13.8)

04221-04089

$1.49

8

STOPPER,SHIFT CAM DRIVE PLATE

25312-42F01

$7.95

9

PLATE, GEAR SHIFT CAM

25381-13E00

$56.02

10

SCREW (6X12)

09126-06011

$2.03

11

BEARING (25X47X8)

09262-25006

$25.54

12

BEARING (25X32X12) | RH

09263-25018

$21.39

13

STOPPER, SHIFT CAM

25350-24F00

$34.15

14

SPRING, SHIFT CAM STOPPER

25355-24F00

$7.16

15

BOLT (6X14.3)

09111-06041

$2.61

16

WASHER

08211-06141

$1.59

17

SHAFT,GEAR SHIF This part replaces 25510-15H00.

25510-15H01

$87.01

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

19

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

20

SHIM (14X22X1) | RH

09181-14167

$2.53

21

BEARING (14X20X12)

09263-14027

$13.52

22

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

23

SPRING

09440-17009

$1.71

24

SPRING

09444-20001

$5.24

25

CIRCLIP

08331-3114A

$1.91

26

ARM,GEAR SHIFT This part replaces 25520-40F00.

25520-40F01

$47.53

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28

ROD, GEAR SHIFT LINK (L:150)

25525-19F00

$10.23

29

LEVER ASSY,GEAR This part replaces 25600-17G00.

25600-17G02

$109.10

30

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

31

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

32

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

33

NUT

09140-06020

$2.02

34

NUT | LH

09140-06025

$2.05

35

WASHER (12.5X20X1)

09160-12011

$1.54

36

BOLT

01500-0625A

$1.78

37

CIRCLIP

08331-3112A

$1.78

38

CLAMP, POSITION SENSOR LEAD

31497-45000

$1.92

39

SENSOR ASSY,GEA This part replaces 37730-15H01.

37730-15H02

$75.04

40

BOLT

07120-0516A

$2.28

41

BOLT

07130-0510B

$2.62
