Description

Price

1

WHEEL,FR(17M/CX | FOR YVB,YHL This part replaces 54111-15H00-019.

54111-15H01-019

$758.92

1

WHEEL,FR(17M/CX | FOR YWW This part replaces 54111-15H00-Y6G.

54111-15H01-Y6G

$754.30

2

SPACER, HUB BEARING

54731-33E20

$49.02

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-15H00

$164.72

6

BOLT, FRONT AXLE

54712-41G10

$16.19

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$19.66

8

DISC, FRONT BRAKE This part replaces 59210-15H00.

59210-15H10

$280.90

9

BOLT (8X21)

09106-08160

$3.57

10

TIRE, FRONT This part replaces 55110-24F60.

55110-24F70

$377.18

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL, NO.1

55411-22H00

$8.60

12

BALANCER, WHEEL, NO.2

55412-22H00

$10.07

12

BALANCER, WHEEL, NO.3

55413-22H00

$11.47

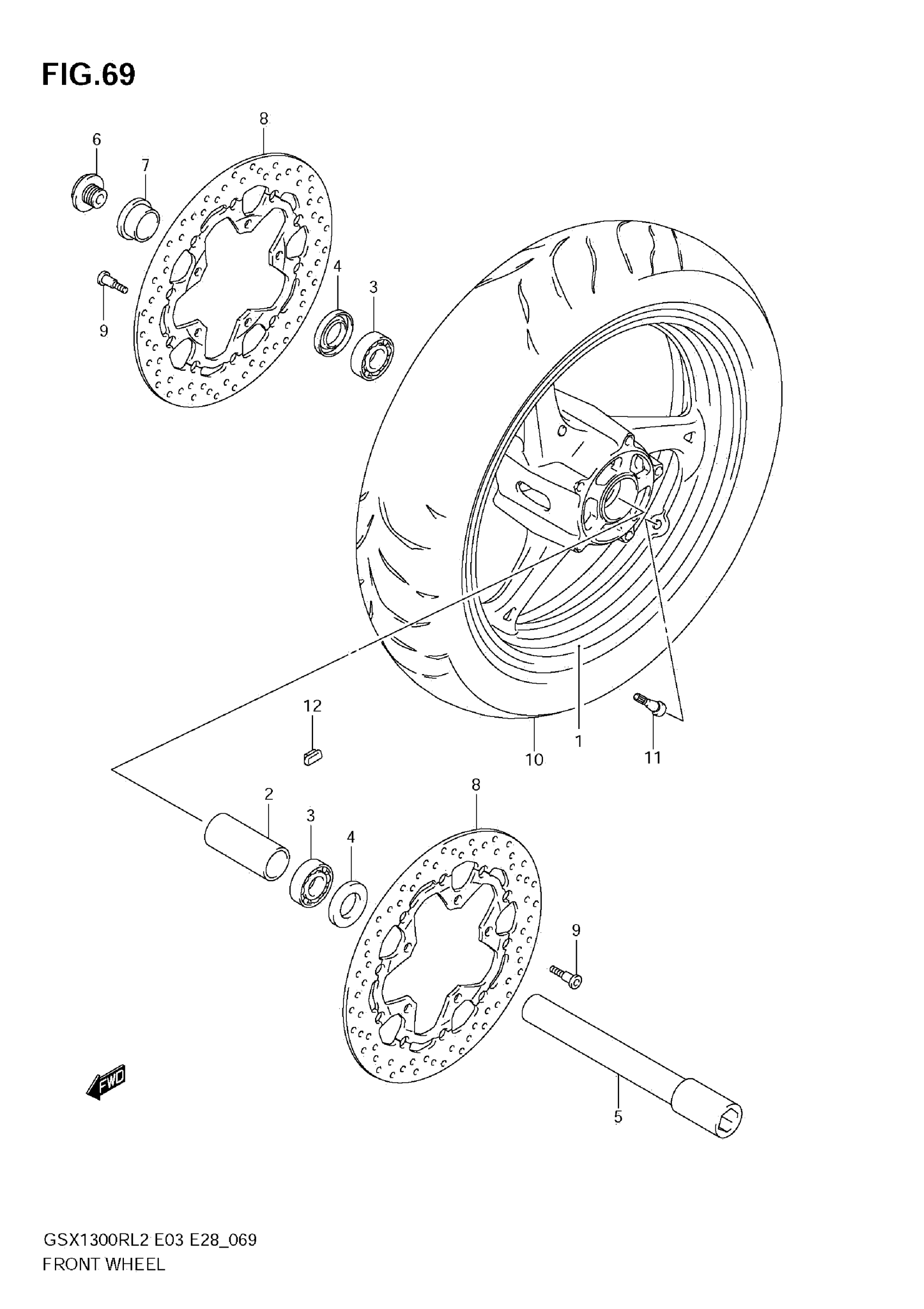

Suzuki GSX1300RL2 (2012) FRONT WHEEL Diagram
