Description

Price

1

FRAME,(BLACK) This part replaces 41100-15H05-YAP.

41100-15H07-YAP

$5,906.15

2

RAIL, SEAT This part replaces 41200-15H10.

41200-15H13

$966.83

3

BOLT (10X30)

09103-10296

$6.44

4

HOOK, SEAT RAIL

46315-24F01

$47.00

5

CAP (OD:10)

09250-05009

$2.19

6

SPACER, ENGINE MOUNT

41911-33E10

$26.20

7

BOLT (8X30)

09106-08105

$3.78

8

BOLT,CRANK CASE ADJUST This part replaces 41921-15H00.

41921-15H20

$54.68

9

BOLT,CRANK CASE ADJUST This part replaces 41921-15H10.

41921-15H30

$41.28

10

NUT,CRANK CASE ADJUST This part replaces 41922-19F11.

41922-19F12

$29.75

11

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$21.97

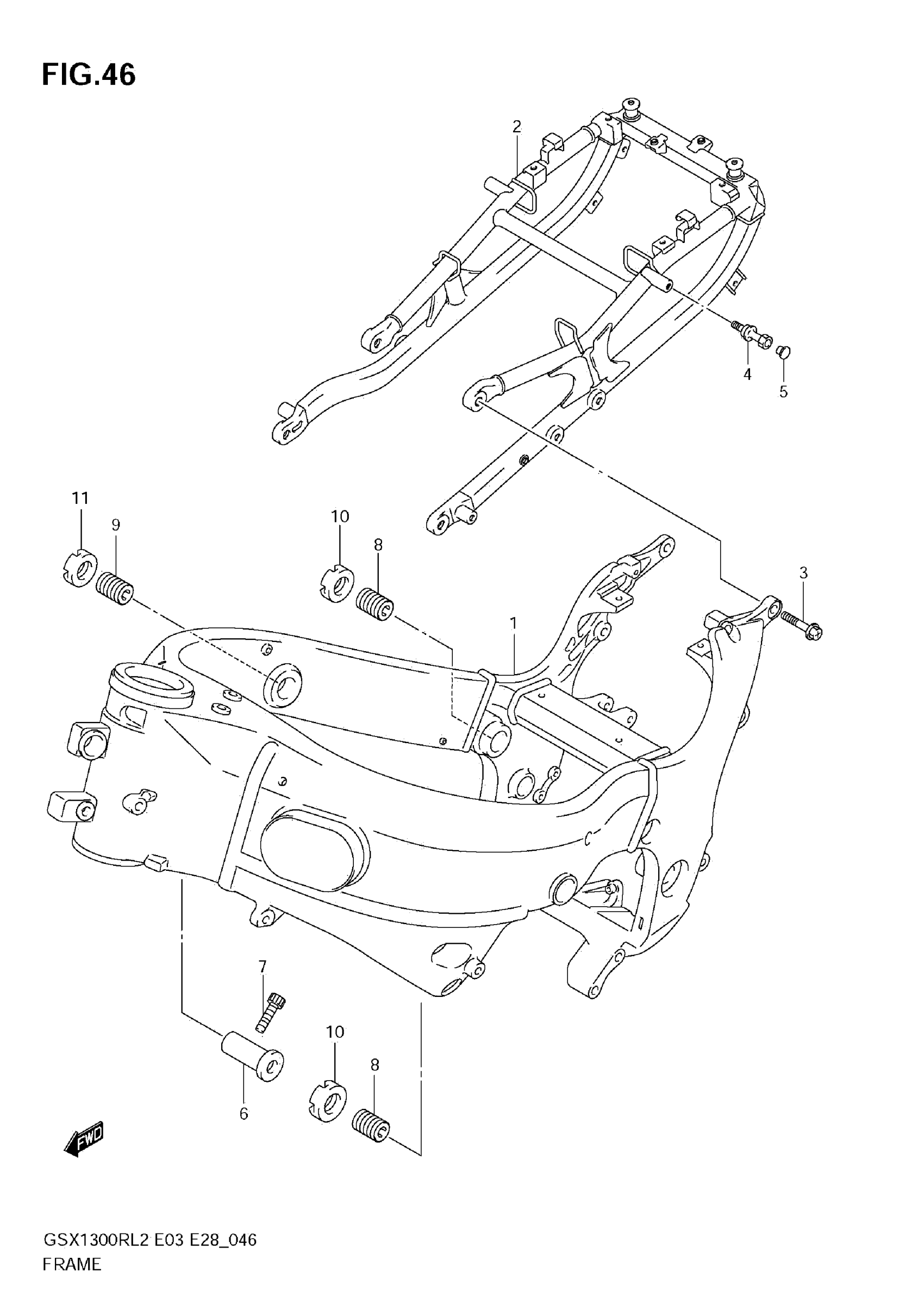

Suzuki GSX1300RL2 (2012) FRAME Diagram
