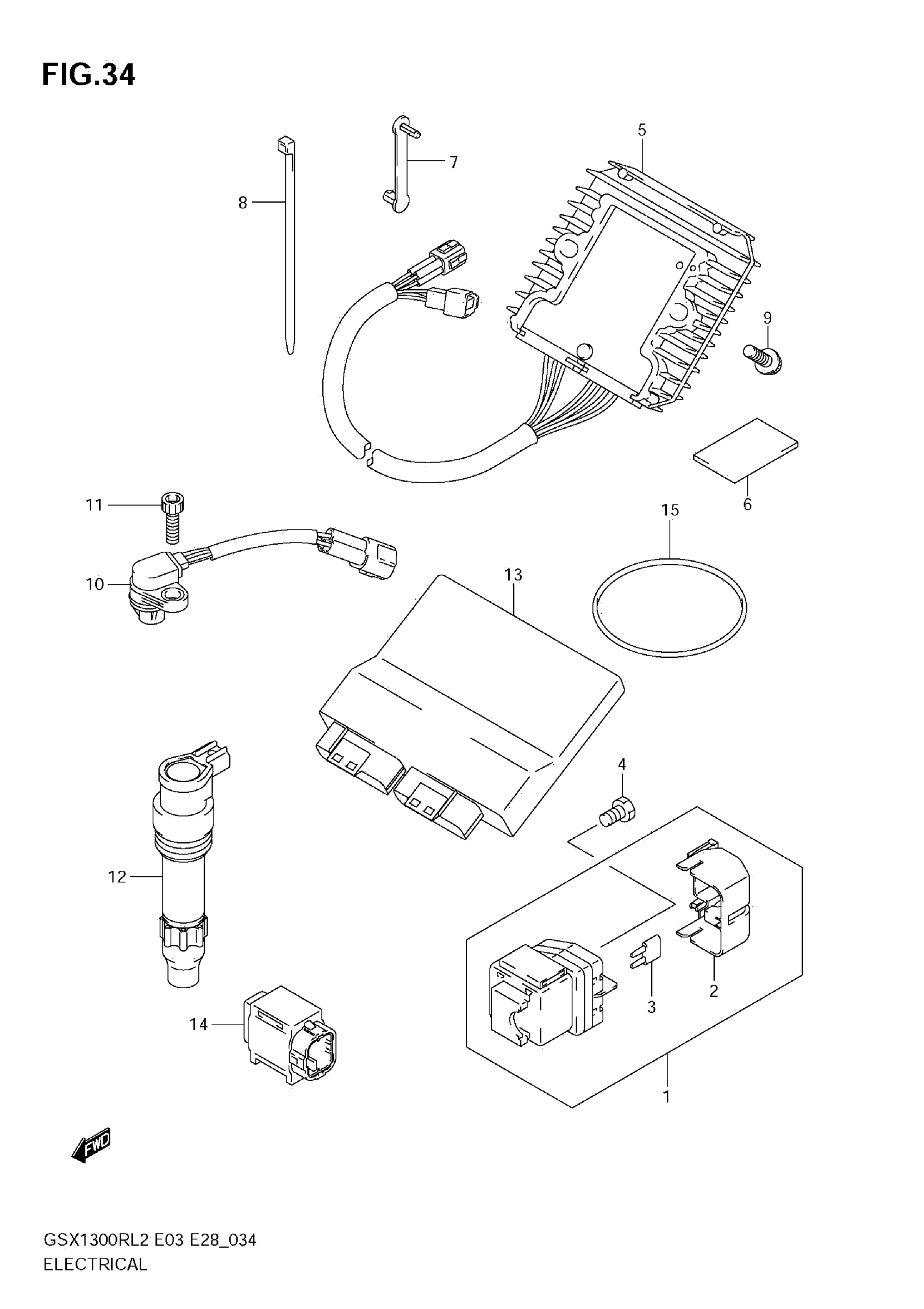

Suzuki GSX1300RL2 (2012) ELECTRICAL (GSX1300R L2 E33) Diagram

#

Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-44G00

$101.09

2

COVER, RECTIFIER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-15H10.

32800-15H11

$233.77

6

PROTECTOR (30X50X3)

33652-36000

$2.30

7

CLAMP, RECTIFIER LEAD

36651-48E00

$3.25

8

CLAMP (L:145)

09407-14407

$3.57

9

BOLT

02162-0625A

$1.78

10

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

$108.00

11

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

12

COIL ASSY,IGNIT This part replaces 33410-24F10.

33410-24F11

$116.13

13

CONTROL UNIT, FI

32920-15H20

Unavailable

14

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

15

O RING (D:3.5,ID;76)

09280-76005

$4.19
